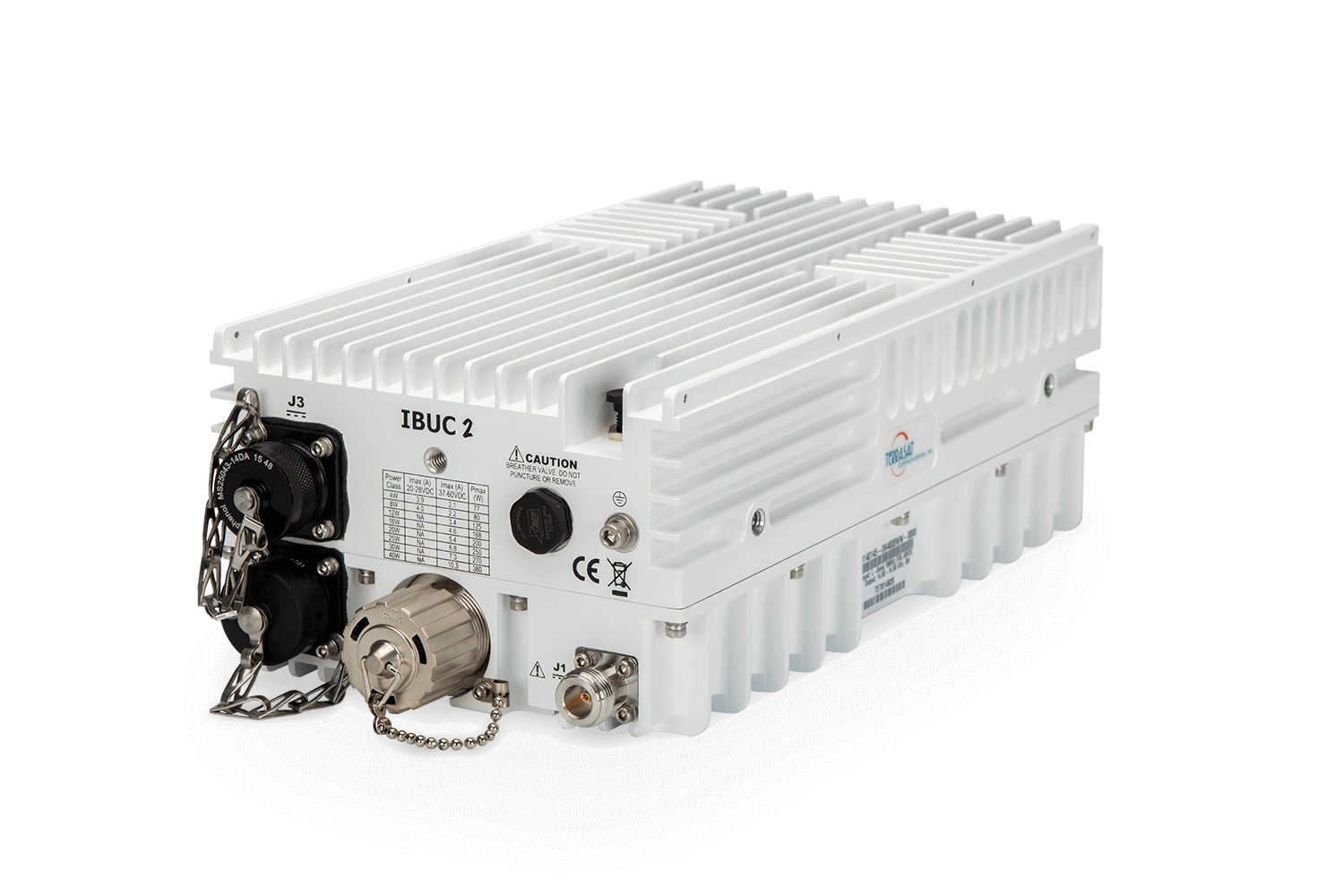

X-Band IBUC 2, 5 to 60W

X-Band 5W to 60W, IBUC 2

PALS

X-Band 5W to 60W, IBUC 2

The IBUC 2 is a compact integrated BUC/GaAs SSPA designed for higher performance & reliability. Intelligent Block Upconverters based on linear GaAs amplifier technology require minimal output power backoff. 24-48-hour environmental chamber testing guarantees P1dB output power over frequency and temperature range. Multiple sensors & a new, high-capacity microprocessor provide tools to optimize terminal performance. The IBUC 2 is a popular choice for mid-power mobile & fixed defense terminals operating in demanding environments.

BUC/SSPA KEY FEATURES

Highest quality & exacting performance guaranteed through individual unit testing over temperature
Superior linearity for maximum useable output power
Amplifier overdrive protection
User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
New high capacity microprocessor & extended M&C functions
Weatherized RJ45 Ethernet interface for simplified connection
Local Web Interface & NMS-Friendly SNMP
70+ User Configurable Thresholds & Alarms
Upgraded Event Log with 1,000 Sensor Readings
Performance Trend Analysis Tools & Statistical logs
Embedded Web Pages for Universal Web Browser Access
1+1 Transmit Redundancy with Eco-ModeOPTIONAL
High Stability Internal 10 MHz Reference with Auto-DetectionOPTIONAL
Three Factory Select Bands (Low,Std, and Full Ku-Bands)OPTIONAL
AC or DC Input ModelOPTIONAL
Mounting BracketsOPTIONAL
Type N, F-Type, or TNC Input ConnectorsOPTIONAL
Handheld TerminalOPTIONAL
Cyber Hardened Core M&COPTIONAL
WGS (Wideband Global SATCOM) compatibleOPTIONAL

CONTACT A SALES REPRESENTATIVE FOR "X-Band 5W to 60W, IBUC 2"

[email protected]

+90 216 540 72 57

[email protected]

BUC/SSPA PRODUCTS

C-Band, Full Band, 2W Mini-BUC, NJT8102W Series

C-Band, Full Band, 2W Mini-BUC, NJT8102W Series Nishinbo's NJT8102W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 2W(+33 dBm) of P1dB, with a weatherized compact enclosure.

C-Band, Full Band 3W Mini-BUC, NJT8103W Series

C-Band, Full Band 3W Mini-BUC, NJT8103W Series Nishinbo's NJT8103W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 3W(+34.5 dBm) of P1dB, with a weatherized compact enclosure.

C-Band, Full Band 5W Mini-BUC, NJT8105W Series

C-Band, Full Band 5W Mini-BUC, NJT8105W Series Nishinbo's NJT8105W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 5W(+37dBm) of P1dB, with a weatherized compact enclosure.

C-Band 5W to 80W, IBUC 2

C-Band 5W to 80W, IBUC 2 The Terrasat's IBUC 2 is a high-performance, intelligent satellite upconverter with GaAs amplifier technology, designed for reliable operation in demanding telecom, defense, and government networks.

C-Band, Full Band, 10W BUC, NJT5763 Series

C-Band, Full Band, 10W BUC, NJT5763 Series Nishinbo Microdevice's NJT5763 is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 10W(+40 dBm) of P1dB, with a fanless weatherized enclosure.

C-Band, 100W, IBUC2G

C-Band, 100W, IBUC2GThe IBUC 2G is a full C-Band multicarrier Block Upconverter featuring GaN amplifier technology for higher power in a compact outdoor design. With advanced monitoring and low power consumption, it's ideal for demanding telecom, government, and defense satellite uplinks.

C-Band, 100W to 400W, IBUC-R

C-Band, 100W to 400W, IBUC-R The IBUC-R Series integrates an Intelligent Block Upconverter with GaN SSPA, delivering 100W to 400W output for high-power satcom uplinks. Its GaN technology ensures high linearity for multicarrier transmission.

C-Band, 800W, IBUC-G

C-Band, 800W, IBUC-G The Terrasat IBUC G is an 800W C-Band Block Upconverter featuring GaN technology for high-efficiency multicarrier transmission. Ideal for maritime, broadcast, and network hubs, it delivers maximum linear power with solid-state reliability, outperforming traditional TWTAs.

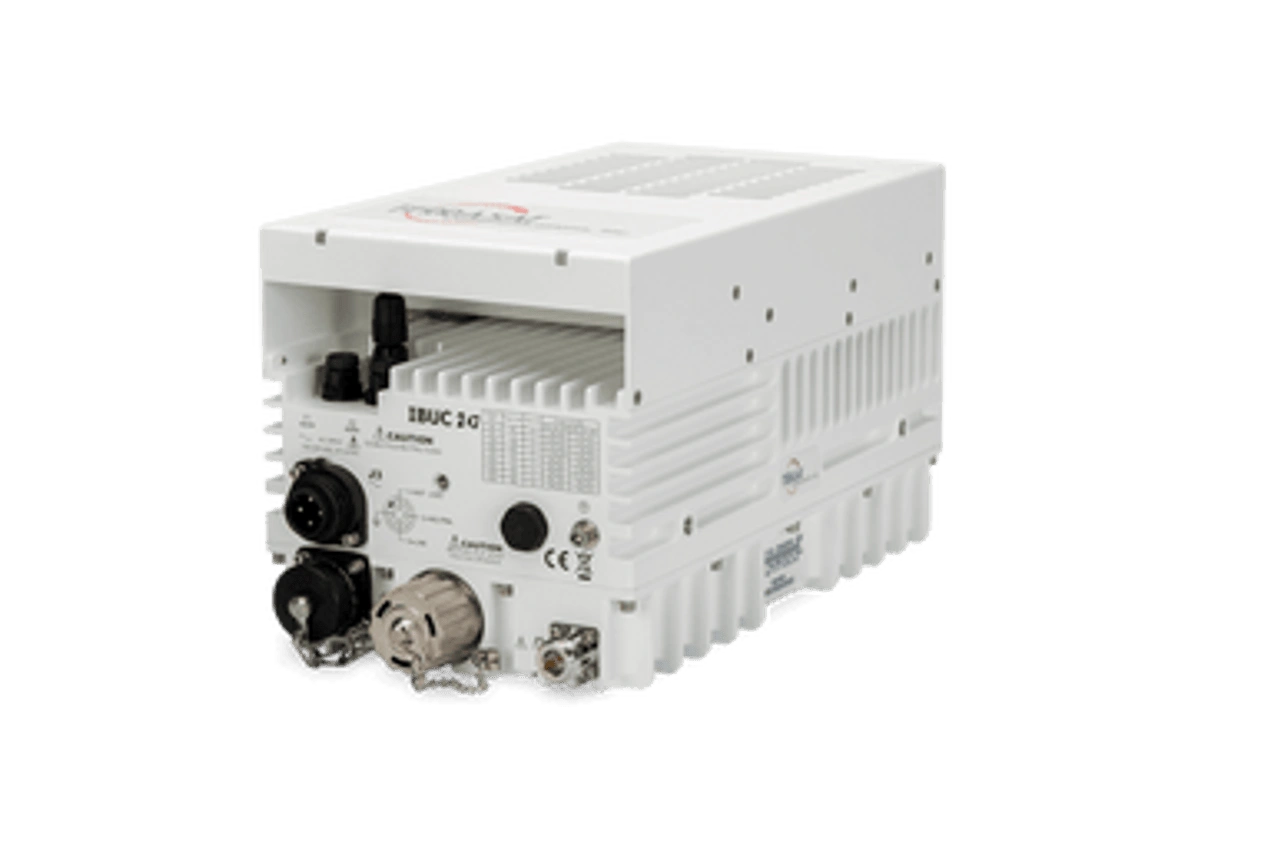

X-Band 100W, IBUC 2G
