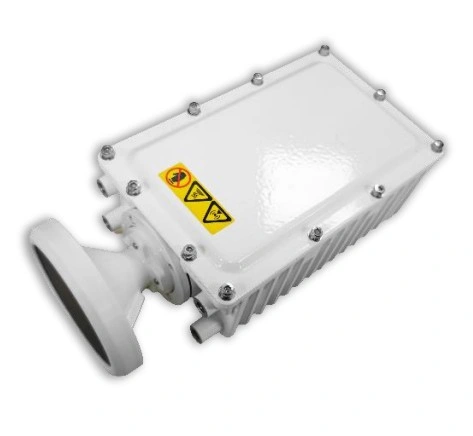

Ka-Band 3/4W Transciever
The RevGo Ka-Band TR 3/4W sets a new standard for VSAT terminal efficiency and reliability. Engineered using highly integrated RF technologies, this innovative transceiver combines 1x BUC, 1x LNB, and an Orthomode Transducer (OMT) with rejection filters into a remarkably compact, 1.0 kg lightweight chassis. It eliminates the need for separate components, simplifying installation and reducing potential failure points in the field.
BUC/SSPA KEY FEATURES
- Highly integrated RF technologies
- Designed for high volume production
- Linearity optimized for high order modulation and high data rate
- Strict quality control processes resulting in <0.25% field failure rates
TECHNICAL SPECIFICATIONS
| RF Parameter | Transmission (Tx) Specifications | Reception (Rx) Specifications |
|---|---|---|
| RF Frequency Range | 29.00 - 30.00 GHz | • 17.80 - 19.00 & 19.00 - 20.20 GHz • 18.20 - 19.20 & 19.20 - 20.20 GHz (Optional) • 19.20 - 20.20 & 20.20 - 21.20 GHz (Optional) |
| IF Frequency Range | 1400 - 2400 MHz | 950 - 1950 MHz / 950 - 2150 MHz |
| LO Frequency | 27.60 GHz | 16.85 GHz & 18.05 GHz (Dual LO options available) |
| LO Stability | Driven by External Reference | ±1 ppm typ., ±3 ppm max. (Internal reference) |
| Output Power / P-1dB | 3W: 35 dBm 4W: 36 dBm (Rated/Saturated) | 10 dB min. (P-1dB) |
| Small Signal Gain | 55 ± 4 dB | 55 ± 4 dB min. |
| Gain Flatness | • 1 dB p-p / 36 MHz • 4 dB p-p / 1000 MHz | • 1 dB p-p / 36 MHz • 5 dB p-p / 1000 MHz |
| Phase Noise | 2.0° max. @ RMS 100 Hz to 1 MHz | 1.8° max. @ RMS 1 kHz to 1 MHz |
| Noise Figure | N/A | 1.8 dB |
| Output Spurious | -50 dBc max. | N/A |
| External Reference | 10 MHz, 0 ± 5 dBm | N/A |
