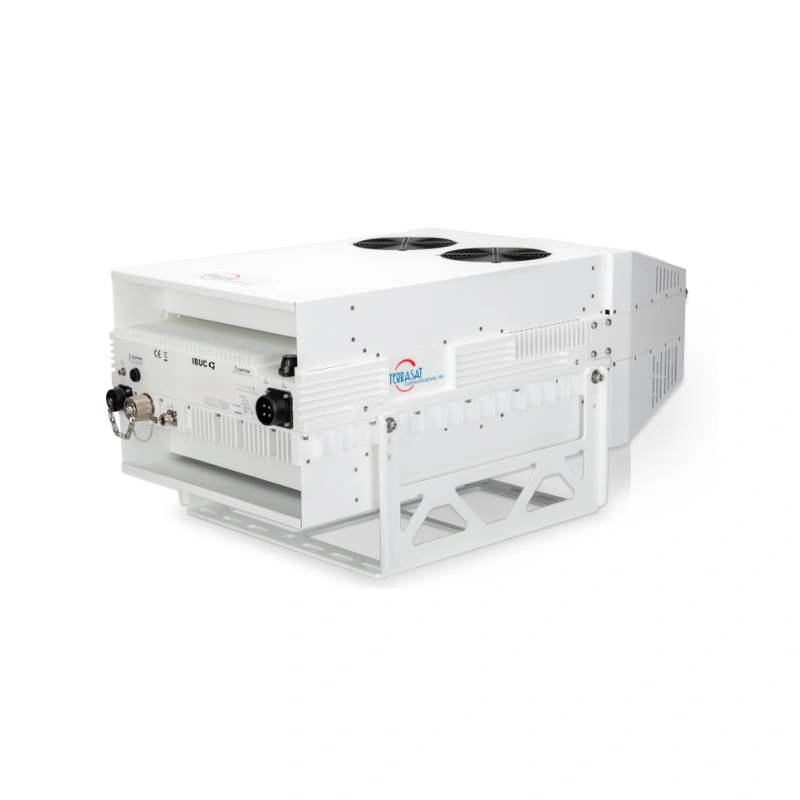

Terrasat C-Band, 800W, IBUC-G

C-Band, 800W, IBUC-G

PALS

C-Band, 800W, IBUC-G

Terrasat introduces the IBUC G, a groundbreaking 800W C-Band Block Upconverter engineered to meet the escalating demands of modern satellite networks. Designed specifically for high-throughput, multicarrier applications, this robust solution delivers exceptional performance for bandwidth-intensive sectors including maritime communications, broadcast contribution links, and critical network hubs.

The core innovation of the IBUC G lies in its advanced Gallium Nitride (GaN) amplifier technology. This cutting-edge foundation enables dramatically improved power efficiency, significantly reducing operational costs and thermal output while maximizing linear output power. By offering the high reliability and maintenance-free advantages of solid-state design, the IBUC G presents a superior, future-proof alternative to traditional Traveling Wave Tube Amplifiers (TWTAs), ensuring consistent uptime and reduced total cost of ownership for the most demanding satellite uplink scenarios.

BUC/SSPA KEY FEATURES

Highest quality & exacting performance guaranteed through individual unit testing over temperature
Superior linearity for maximum useable output power
Amplifıer overdrive protection
User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
New high capacity microprocessor & extended M&C functions
Weatherized RJ45 Ethernet interface for simplifıed connection
Cyber Hardened CoreOPTIONAL
+1 Transmit RedundancyOPTIONAL
+1 Transmit RedundancyOPTIONAL
Load Switch KitOPTIONAL
High Stability lnternal 10 MHz Reference with Auto-DetectionOPTIONAL
Mounting BracketsOPTIONAL
N-Type or F-Type lnput ConnectorsOPTIONAL
Handheld TerminalOPTIONAL
WGS (Wideband Global SATCOM) compatible.OPTIONAL
