Ku-Band 100W, IBUC-G

The Terrasat Ku-Band IBUC G 100W is a full-featured Intelligent Block UpConverter integrating advanced Gallium Nitride (GaN) amplifier technology. Engineered for high-capacity multi-carrier applications, the IBUC G delivers maximum useable output power with exceptional linearity (PLincap P sub cap L i n end-sub 𝑃𝐿𝑖𝑛 of +47 dBm) while drastically reducing footprint and power consumption in demanding outdoor environments. The IBUC G is a full-featured Intelligent Block Upconverter with Gallium Nitride amplifier technology. GaN advantages include higher power in a smaller outdoor enclosure and low power consumption. Designed for long lifetime performance in demanding environments. Multiple sensors & a new, high-capacity microprocessor provide tools to optimize remote terminal performance. The IBUC G is a popular choice for satcom uplinks for telecom, government, defense and other demanding applications.

BUC/SSPA KEY FEATURES

Superior linearity for maximum useable output power
Amplifier overdrive protection
User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
New high capacity microprocessor & extended M&C functions
Local Web Interface & NMS-Friendly SNMP
70+ User Configurable Thresholds & Alarm
Upgraded Event Log with 1,000 Sensor Readings
Performance Trend Analysis Tools & Statistical logs

CONTACT A SALES REPRESENTATIVE FOR "Ku-Band 100W, IBUC-G"

[email protected]

+90 216 540 72 57

[email protected]

BUC/SSPA PRODUCTS

C-Band, Full Band, 2W Mini-BUC, NJT8102W Series

C-Band, Full Band, 2W Mini-BUC, NJT8102W Series Nishinbo's NJT8102W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 2W(+33 dBm) of P1dB, with a weatherized compact enclosure.

C-Band, Full Band 3W Mini-BUC, NJT8103W Series

C-Band, Full Band 3W Mini-BUC, NJT8103W Series Nishinbo's NJT8103W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 3W(+34.5 dBm) of P1dB, with a weatherized compact enclosure.

C-Band, Full Band 5W Mini-BUC, NJT8105W Series

C-Band, Full Band 5W Mini-BUC, NJT8105W Series Nishinbo's NJT8105W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 5W(+37dBm) of P1dB, with a weatherized compact enclosure.

C-Band, Full Band, 10W BUC, NJT5763 Series

C-Band, Full Band, 10W BUC, NJT5763 Series Nishinbo Microdevice's NJT5763 is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 10W(+40 dBm) of P1dB, with a fanless weatherized enclosure.

C-Band 5W to 80W, IBUC 2

C-Band 5W to 80W, IBUC 2 The Terrasat's IBUC 2 is a high-performance, intelligent satellite upconverter with GaAs amplifier technology, designed for reliable operation in demanding telecom, defense, and government networks.

C-Band, 100W, IBUC2G

C-Band, 100W, IBUC2GThe IBUC 2G is a full C-Band multicarrier Block Upconverter featuring GaN amplifier technology for higher power in a compact outdoor design. With advanced monitoring and low power consumption, it's ideal for demanding telecom, government, and defense satellite uplinks.

C-Band, 100W to 400W, IBUC-R

C-Band, 100W to 400W, IBUC-R The IBUC-R Series integrates an Intelligent Block Upconverter with GaN SSPA, delivering 100W to 400W output for high-power satcom uplinks. Its GaN technology ensures high linearity for multicarrier transmission.

C-Band, 400W BUC

C-Band, 400W BUC The RevGo C-Band 400W Block Upconverter (BUC) is a high-power, high-efficiency satellite earth station RF solution engineered for demanding uplink applications.

C-Band, 800W, IBUC-G

C-Band, 800W, IBUC-G The Terrasat IBUC G is an 800W C-Band Block Upconverter featuring GaN technology for high-efficiency multicarrier transmission. Ideal for maritime, broadcast, and network hubs, it delivers maximum linear power with solid-state reliability, outperforming traditional TWTAs.

C-Band 800-1000W

C-Band 800-1000W The RevGo 800W / 1000W C-Band Block Up-Converters are ultra-high-power satellite RF transmitters designed for mission-critical gateway and teleport hubs.

X-Band 5W to 60W, IBUC 2

X-Band 5W to 60W, IBUC 2The TerraSat IBUC 2 X Band is a compact, high-performance GaAs BUC with power outputs from 5W to 60W, designed specifically for reliable operation in demanding defense and mobile satellite terminals.

X-Band 100W, IBUC 2G

X-Band 100W, IBUC 2GThe Terrasat's IBUC 2G is an advanced Intelligent Block Upconverter featuring GaN amplifier technology, multicarrier X-band support, and enhanced power efficiency for high-performance mobile defense terminals in demanding environments.

X-Band, 200W, IBUC-G

X-Band, 200W, IBUC-GTerrasat's 200W X-Band GaN IBUC supports full-spectrum multicarrier transmission. It delivers maximum power in a compact, antenna-mountable design, offering high efficiency and superior reliability for demanding maritime, broadcast, and network applications.

Ku-Band, Universal, 1.5W BUC, NJT8301U Series

Ku-Band, Universal, 1.5W BUC, NJT8301U Series Nishinbo's NJT8301U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 1.5W(+31 dBm) of P1dB, with a weatherized compact enclosure.

Ku-Band, Universal, 3W BUC, NJT8302U Series

Ku-Band, Universal, 3W BUC, NJT8302U Series Nishinbo's NJT8302U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 3W(+34dBm) of P1dB, with a weatherized compact enclosure.

Ku-Band, Universal 4W BUC, NJT8304U Series

Ku-Band, Universal 4W BUC, NJT8304U Series Nishinbo's NJT8304U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 4W(+36dBm) of P1dB, with a weatherized compact enclosure.

Ku Band 4W to 50W IBUC 2

Ku Band 4W to 50W IBUC 2The TerraSat IBUC 2 is a highly reliable, compact GaAs amplifier unit delivering 4W to 50W output across the Ku-Band. Its intelligent monitoring and robust design make it ideal for critical satellite communication networks in defense, telecom, and government sectors.

Ku-Band, Universal, 6W BUC, Compact Model, NJT8376U Series

Ku-Band, Universal, 6W BUC, Compact Model, NJT8376U Series Nishinbo's NJT8376U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 6W(+37.8 dBm) of P1dB, with an weatherized compact enclosure.

Ku-Band, Universal, GaN 8W BUC, NJT8334U Series

Ku-Band, Universal, GaN 8W BUC, NJT8334U Series Nishinbo's NJT8334U is a Ku-band block up-converter of 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 8W(+39 dBm) of linear output power, in an ultra-compact weatherproof enclosure with forced air cooling.

Ku-Band, Universal, 16W Mini-BUC, NJT8319U Series

Ku-Band, Universal, 16W Mini-BUC, NJT8319U Series Nishinbo's NJT8319U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 16W(+42 dBm) of P1dB, with an weatherized air-forced enclosure.

Ku-Band, Universal, GaN 16W BUC, NJT8336U Series

Ku-Band, Universal, GaN 16W BUC, NJT8336U Series Nishinbo's NJT8336U is a Ku-band block up-converter of 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 16W(+42 dBm) of linear output power, in an ultra-compact weatherproof enclosure with forced air cooling.

Ku-Band 25W, Universal GaN BUC, NJT8370U Series

Ku-Band 25W, Universal GaN BUC, NJT8370U Series Nishinbo's NJT8370U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 25W(+44 dBm) of Psat, with an weatherized air-forced enclosure.

Ku-Band, Universal 40W GaN BUC, NJT8371U Series

Ku-Band, Universal 40W GaN BUC, NJT8371U Series Nishinbo's NJT8371U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 40W(+46 dBm) of Psat, with an weatherized air-forced enclosure.

Ku-Band 150-200W, IBUC-G

Ku-Band 150-200W, IBUC-G he Terrasat Ku-Band IBUC G (150W & 200W) is a high-power, compact Intelligent Block UpConverter integrating advanced GaN technology.

Ku-Band, 400W BUC

Ku-Band, 400W BUCThe RevGo Ku-Band 400W/500W BUC series delivers high-efficiency, high-power performance for demanding satellite uplink networks.

DBS-Band 20/40W BUC

DBS-Band 20/40W BUCDBS-Band 20/40W BUC is featuring low power consumption, excellent linearity, and a compact design, it is perfect for demanding SATCOM applications.

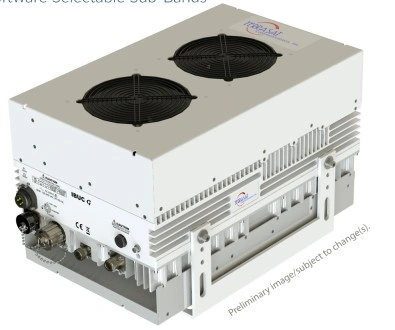

KA-BAND, 100W & 125W GAN IBUC

KA-BAND, 100W & 125W GAN IBUC The Terrasat Ka-Band Quad-Band IBUC G (100W & 125W) is an advanced, high-power Intelligent Block UpConverter providing universal range across the Ka-band spectrum.

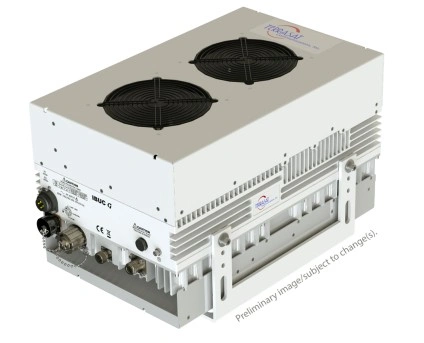

Ka-Band, 125W & 160W, Tri-Band IBUC-G
