IBUC 2 Ku Band 4W to 50W

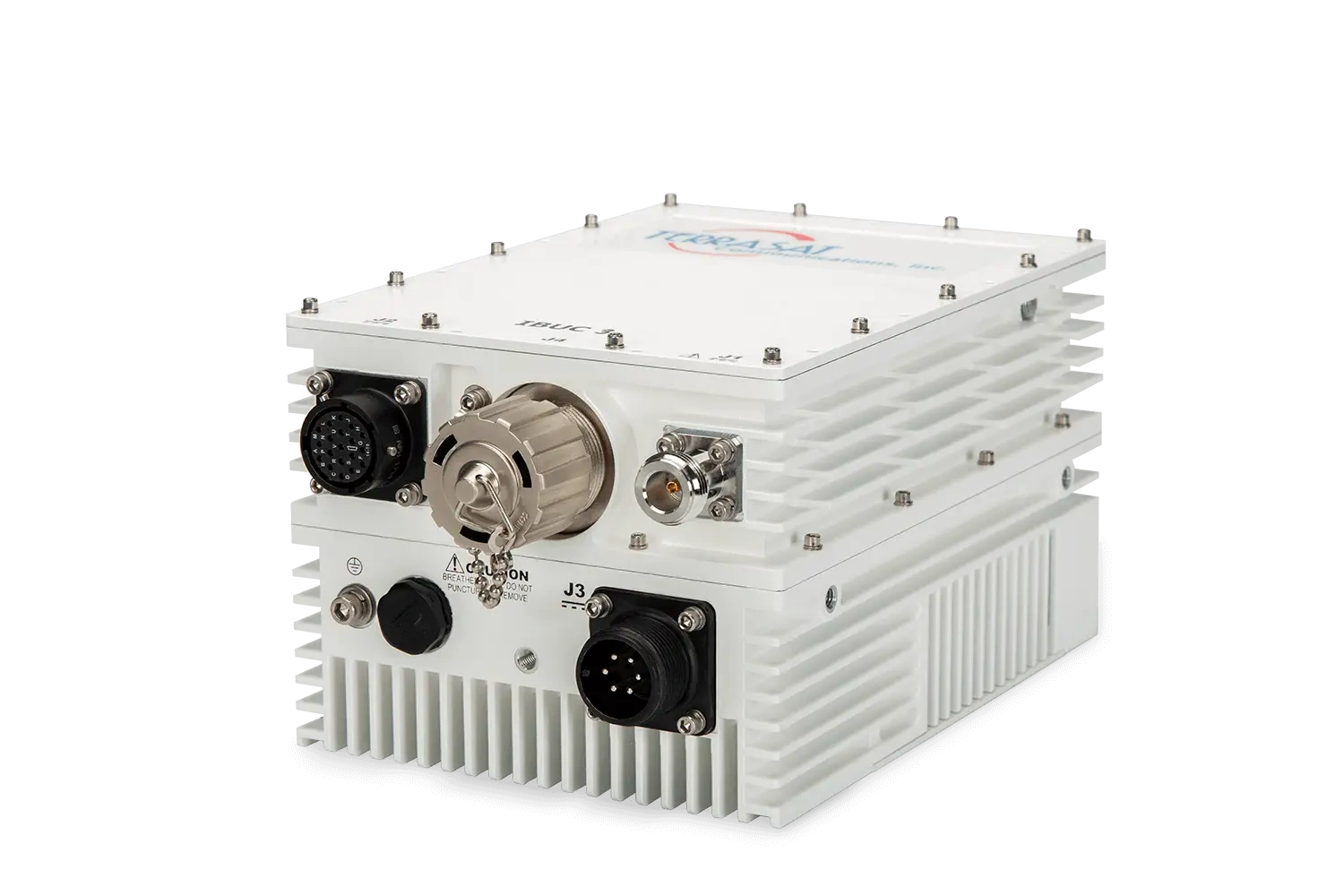

The TerraSat IBUC 2 is a compact, integrated Intelligent BUC and GaAs SSPA that sets a new standard for performance and reliability in medium-high power Satcom terminals. Leveraging advanced linear GaAs amplifier technology, it operates with exceptional efficiency, requiring minimal output power backoff.

Its robust design is proven through rigorous 24-48-hour environmental testing, guaranteeing stable P1dB output power across the Ku-Band frequency spectrum. With an integrated suite of sensors and a high-capacity microprocessor, the IBUC 2 provides unparalleled tools for real-time performance monitoring and optimization. This makes it the trusted choice for critical applications in telecom, defense, air traffic control, and government networks where unwavering operation is essential.

BUC/SSPA KEY FEATURES

Highest quality & exacting performance guaranteed through individual unit testing over temperature
Superior linearity for maximum useable output power
Amplifier overdrive protection
User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
New high capacity microprocessor & extended M&C functions
Weatherized RJ45 Ethernet interface for simplified connection
Local Web Interface & NMS-Friendly SNMP
70+ User Configurable Thresholds & Alarms
Upgraded Event Log with 1,000 Sensor Readings
Performance Trend Analysis Tools & Statistical logs
1+1 Transmit Redundancy with Eco-ModeOPTIONAL
High Stability Internal 10 MHz Reference with Auto-DetectionOPTIONAL
Three Factory Select Bands (Low, Std, and Full Ku-Bands)OPTIONAL
AC or DC Input ModelsOPTIONAL
Mounting BracketsOPTIONAL
Type N, F-Type, or TNC Input ConnectorsOPTIONAL
Handheld TerminalOPTIONAL
Cyber Hardened Core M&COPTIONAL

COMPATIBILITY

WGS (Wideband Global SATCOM) compatible
