Ku-Band, 400W

Ku-Band, 400W BUC

PALS

Ku-Band, 400W BUC

The RevGo Ku-Band 400W/500W Block Upconverter (BUC) series represents the pinnacle of high-power RF engineering for advanced satellite earth stations. Leveraging highly integrated GaN and RFIC semiconductor technologies, these high-capacity BUCs deliver exceptional linearity optimized for high-order modulation schemes and high data rate satellite transmissions. Available in both 400W (56 dBm) and 500W (57 dBm) power ratings, this series guarantees elite signal efficiency with an ultra-low field failure rate of less than 0.25%.

BUC/SSPA KEY FEATURES

Highly integrated RF technologies (RFIC and GaN)
Designed for high volume production
Linearity optimized for high order modulation and high data rate
Strict quality control processes resulting in <0.25% field failure rates

TECHNICAL SPECIFICATIONS

Parameter	Specification Details (Ku-Band 400W / 500W)
RF Frequency Range	Standard: 14.00 - 14.50 GHz Extended: 13.75 - 14.50 GHz
IF Frequency Range	Standard: 950 - 1450 MHz Extended: 950 - 1700 MHz
Output Power (Rated)	400W Model: 56 dBm \| 500W Model: 57 dBm
Linear Output Power (PLin)	400W: PLin1: 55 dBm, PLin2: 54 dBm, PLin: 53 dBm 500W: PLin1: 56 dBm, PLin2: 55 dBm, PLin: 54 dBm
Small Signal Gain	80 dB (Gain Adjustment: 60-80 dB in 0.1 dB steps)
Power Consumption	400W Model: 2300 W @ Rated Output 500W Model: 2800 W @ Rated Output
RF Output Interface	WR75-G (Grooved), VSWR 1.25:1
IF Input Interface	N-Type Female (50Ω), VSWR 1.5:1
Interfaces & M&C	RS232/RS485, RJ45 Ethernet (SNMPv2, Open-BMIP)
Reference Frequency	External: 10 MHz (0 ± 5 dBm) \| Optional High-Stability Internal
Phase Noise	Exceeds IESS308/309 (-85 dBc/Hz @ 10 kHz)
Dimensions & Weight	450 x 380 x 242 mm (17.72" x 14.97" x 9.53") \| 30 kg (66.13 lbs)
Operating Temperature	-40°C to +60°C
Redundancy Options	Supports optional 1:1 (with WR75 switch) or 1:2 configurations

ALL SPECIFICATION ON DOWNLOAD PDF

CONTACT A SALES REPRESENTATIVE FOR "Ku-Band, 400W BUC"

[email protected]

+90 216 540 72 57

[email protected]

BUC/SSPA PRODUCTS

C-Band, Full Band, 2W Mini-BUC, NJT8102W Series

C-Band, Full Band, 2W Mini-BUC, NJT8102W Series Nishinbo's NJT8102W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 2W(+33 dBm) of P1dB, with a weatherized compact enclosure.

C-Band, Full Band 3W Mini-BUC, NJT8103W Series

C-Band, Full Band 3W Mini-BUC, NJT8103W Series Nishinbo's NJT8103W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 3W(+34.5 dBm) of P1dB, with a weatherized compact enclosure.

C-Band, Full Band 5W Mini-BUC, NJT8105W Series

C-Band, Full Band 5W Mini-BUC, NJT8105W Series Nishinbo's NJT8105W is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 5W(+37dBm) of P1dB, with a weatherized compact enclosure.

C-Band, Full Band, 10W BUC, NJT5763 Series

C-Band, Full Band, 10W BUC, NJT5763 Series Nishinbo Microdevice's NJT5763 is a block up-converter to Full C-band 5.85 to 6.725 GHz, and transmits the amplified RF signals of up to 10W(+40 dBm) of P1dB, with a fanless weatherized enclosure.

C-Band 5W to 80W, IBUC 2

C-Band 5W to 80W, IBUC 2 The Terrasat's IBUC 2 is a high-performance, intelligent satellite upconverter with GaAs amplifier technology, designed for reliable operation in demanding telecom, defense, and government networks.

C-Band, 100W, IBUC2G

C-Band, 100W, IBUC2GThe IBUC 2G is a full C-Band multicarrier Block Upconverter featuring GaN amplifier technology for higher power in a compact outdoor design. With advanced monitoring and low power consumption, it's ideal for demanding telecom, government, and defense satellite uplinks.

C-Band, 100W to 400W, IBUC-R

C-Band, 100W to 400W, IBUC-R The IBUC-R Series integrates an Intelligent Block Upconverter with GaN SSPA, delivering 100W to 400W output for high-power satcom uplinks. Its GaN technology ensures high linearity for multicarrier transmission.

C-Band, 400W BUC

C-Band, 400W BUC The RevGo C-Band 400W Block Upconverter (BUC) is a high-power, high-efficiency satellite earth station RF solution engineered for demanding uplink applications.

C-Band, 800W, IBUC-G

C-Band, 800W, IBUC-G The Terrasat IBUC G is an 800W C-Band Block Upconverter featuring GaN technology for high-efficiency multicarrier transmission. Ideal for maritime, broadcast, and network hubs, it delivers maximum linear power with solid-state reliability, outperforming traditional TWTAs.

C-Band 800-1000W

C-Band 800-1000W The RevGo 800W / 1000W C-Band Block Up-Converters are ultra-high-power satellite RF transmitters designed for mission-critical gateway and teleport hubs.

X-Band 5W to 60W, IBUC 2

X-Band 5W to 60W, IBUC 2The TerraSat IBUC 2 X Band is a compact, high-performance GaAs BUC with power outputs from 5W to 60W, designed specifically for reliable operation in demanding defense and mobile satellite terminals.

X-Band 100W, IBUC 2G

X-Band 100W, IBUC 2GThe Terrasat's IBUC 2G is an advanced Intelligent Block Upconverter featuring GaN amplifier technology, multicarrier X-band support, and enhanced power efficiency for high-performance mobile defense terminals in demanding environments.

X-Band, 200W, IBUC-G

X-Band, 200W, IBUC-GTerrasat's 200W X-Band GaN IBUC supports full-spectrum multicarrier transmission. It delivers maximum power in a compact, antenna-mountable design, offering high efficiency and superior reliability for demanding maritime, broadcast, and network applications.

Ku-Band, Universal, 1.5W BUC, NJT8301U Series

Ku-Band, Universal, 1.5W BUC, NJT8301U Series Nishinbo's NJT8301U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 1.5W(+31 dBm) of P1dB, with a weatherized compact enclosure.

Ku-Band, Universal, 3W BUC, NJT8302U Series

Ku-Band, Universal, 3W BUC, NJT8302U Series Nishinbo's NJT8302U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 3W(+34dBm) of P1dB, with a weatherized compact enclosure.

Ku-Band, Universal 4W BUC, NJT8304U Series

Ku-Band, Universal 4W BUC, NJT8304U Series Nishinbo's NJT8304U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 4W(+36dBm) of P1dB, with a weatherized compact enclosure.

Ku Band 4W to 50W IBUC 2

Ku Band 4W to 50W IBUC 2The TerraSat IBUC 2 is a highly reliable, compact GaAs amplifier unit delivering 4W to 50W output across the Ku-Band. Its intelligent monitoring and robust design make it ideal for critical satellite communication networks in defense, telecom, and government sectors.

Ku-Band, Universal, 6W BUC, Compact Model, NJT8376U Series

Ku-Band, Universal, 6W BUC, Compact Model, NJT8376U Series Nishinbo's NJT8376U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 6W(+37.8 dBm) of P1dB, with an weatherized compact enclosure.

Ku-Band, Universal, GaN 8W BUC, NJT8334U Series

Ku-Band, Universal, GaN 8W BUC, NJT8334U Series Nishinbo's NJT8334U is a Ku-band block up-converter of 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 8W(+39 dBm) of linear output power, in an ultra-compact weatherproof enclosure with forced air cooling.

Ku-Band, Universal, 16W Mini-BUC, NJT8319U Series

Ku-Band, Universal, 16W Mini-BUC, NJT8319U Series Nishinbo's NJT8319U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 16W(+42 dBm) of P1dB, with an weatherized air-forced enclosure.

Ku-Band, Universal, GaN 16W BUC, NJT8336U Series

Ku-Band, Universal, GaN 16W BUC, NJT8336U Series Nishinbo's NJT8336U is a Ku-band block up-converter of 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 16W(+42 dBm) of linear output power, in an ultra-compact weatherproof enclosure with forced air cooling.

Ku-Band 25W, Universal GaN BUC, NJT8370U Series

Ku-Band 25W, Universal GaN BUC, NJT8370U Series Nishinbo's NJT8370U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 25W(+44 dBm) of Psat, with an weatherized air-forced enclosure.

Ku-Band, Universal 40W GaN BUC, NJT8371U Series

Ku-Band, Universal 40W GaN BUC, NJT8371U Series Nishinbo's NJT8371U is a block up-converter to Universal Ku-band 13.75 to 14.5 GHz, and transmits the amplified RF signals of up to 40W(+46 dBm) of Psat, with an weatherized air-forced enclosure.

Ku-Band 100W, IBUC-G

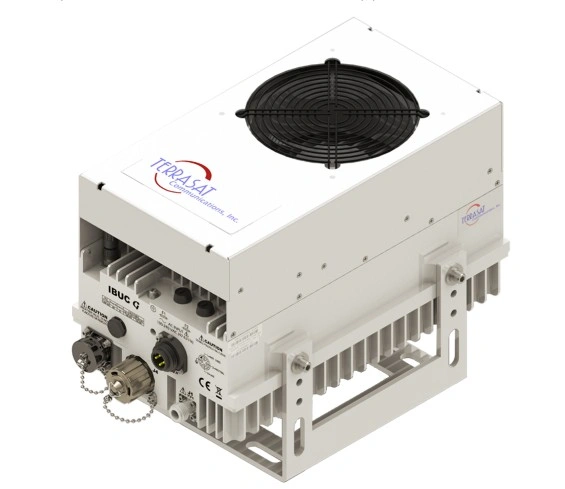

Ku-Band 100W, IBUC-GThe Terrasat Ku-Band IBUC G (100W) is a compact, high-performance Intelligent Block UpConverter powered by cutting-edge GaN technology.

Ku-Band 150-200W, IBUC-G

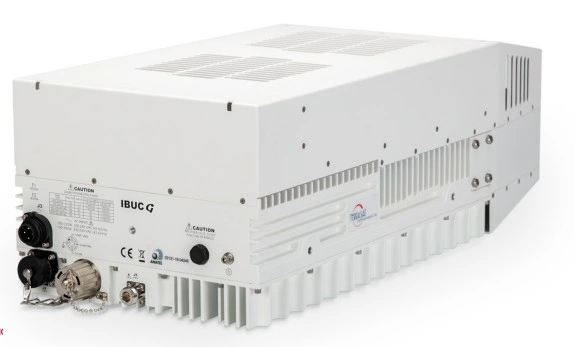

Ku-Band 150-200W, IBUC-G he Terrasat Ku-Band IBUC G (150W & 200W) is a high-power, compact Intelligent Block UpConverter integrating advanced GaN technology.

DBS-Band 20/40W BUC

DBS-Band 20/40W BUCDBS-Band 20/40W BUC is featuring low power consumption, excellent linearity, and a compact design, it is perfect for demanding SATCOM applications.
