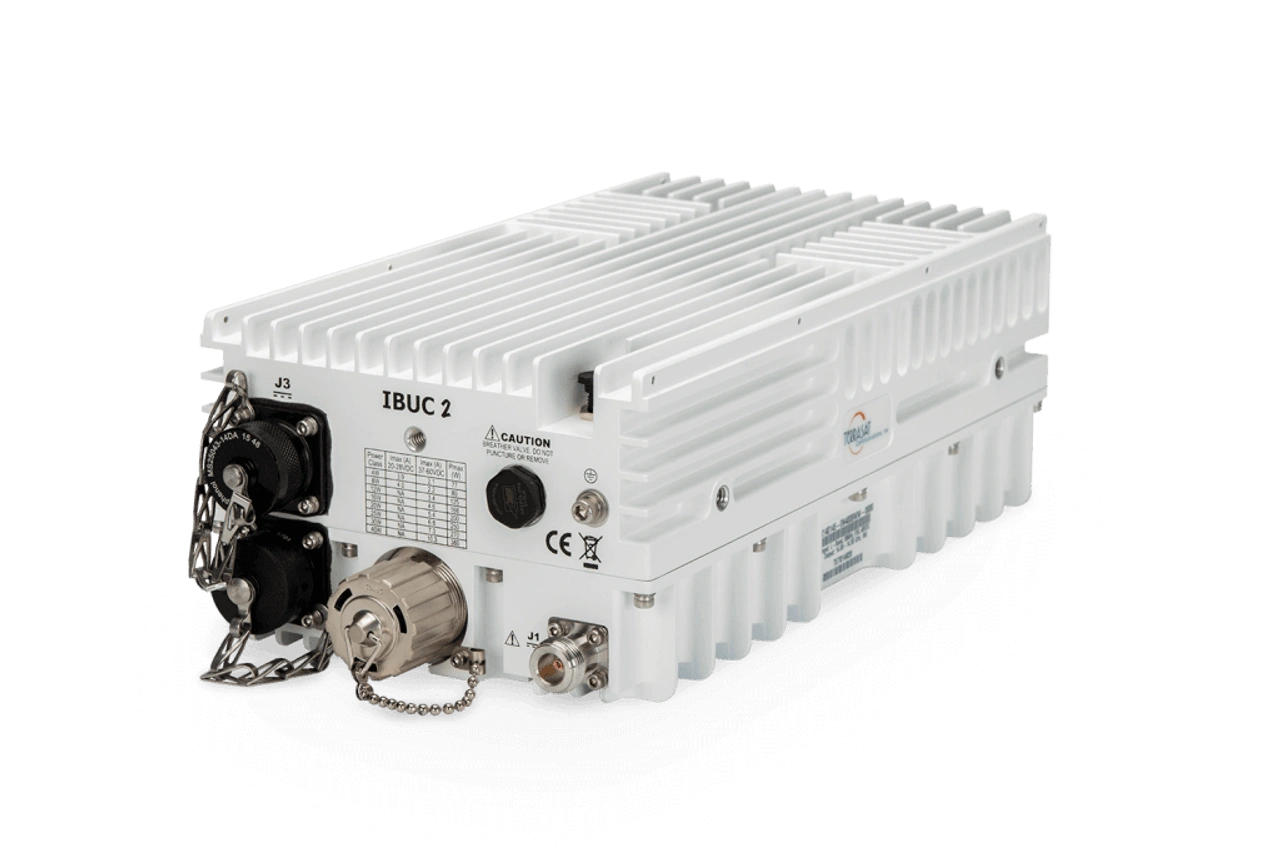

IBUC-2 X Band 5W to 60W

Terrasat IBUC 2 represents a significant leap forward in block upconverter technology, integrating a compact BUC with a high-performance GaAs SSPA. Engineered for mission-critical defense applications, this unit delivers superior power and unwavering reliability in the most demanding environments.

Its intelligent design, based on advanced linear GaAs amplifier technology, sets a new standard. A key advantage is its minimal requirement for output power backoff, ensuring highly efficient and stable operation without sacrificing signal integrity. This intelligent core is complemented by a suite of multiple sensors and a high-capacity microprocessor, providing unparalleled tools to monitor, manage, and optimize your terminal's performance in real-time.

Rigorously tested in environmental chambers for 24-48 hours, the IBUC 2 is guaranteed to maintain its P1dB output power consistently across its specified frequency and temperature range. This robust construction and proven resilience make it the popular and trusted choice for mid-power mobile and fixed defense terminals where failure is not an option.

BUC/SSPA KEY FEATURES

Highest quality & exacting performance guaranteed through individual unit testing over temperature
Superior linearity for maximum useable output power
Amplifier overdrive protection
User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
New high capacity microprocessor & extended M&C functions
Local Web Interface & NMS-Friendly SNMP
70+ User Configurable Thresholds & Alarms
Upgraded Event Log with 1,000 Sensor Readings
> Performance Trend Analysis Tools & Statistical logs
1+1 Transmit Redundancy with Eco-ModeOPTIONAL
High Stability Internal 10 MHz Reference with Auto-DetectionOPTIONAL
Three Factory Select Bands (Low,Std, and Full Ku-Bands)OPTIONAL
AC or DC Input ModelsOPTIONAL
Type N, F-Type, or TNC Input ConnectorsOPTIONAL
Handheld TerminalOPTIONAL
Cyber Hardened Core M&COPTIONAL

COMPATIBILITY

WGS (Wideband Global SATCOM) compatible
