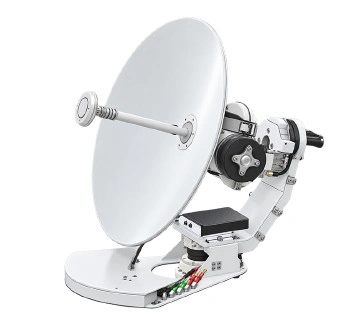

Compact, Rugged Maritime Connectivity
As a leading antenna manufacturer, we proudly unveil the PMAR-35 and PMAR-45 are our latest innovation for demanding maritime environments. This compact, dual-band antenna delivers reliable, high-quality satellite communication for vessels of all sizes, ensuring you stay connected from coastal waters to the open ocean. Engineered with advanced Direct-Drive technology, it eliminates mechanical backlash and reduces moving parts, maximizing operational uptime while maintaining a highly streamlined, space-saving form factor.
Engineered for Reliability
Its efficient stabilization system provides stable satellite tracking, delivering consistent data rates for essential communications, navigation, and operational updates. The precision of the Direct-Drive system ensures ultra-fast, pinpoint satellite acquisition, minimizing signal drops even during intense vessel motion and rough waves.
Proven Versatility & Performance
Supporting both Ku and Ka bands, the PMAR antennas offer operational flexibility to meet diverse needs. It is the ideal, cost-effective solution for manned, unmanned surface vessels, kamikazes, autonomous vessels, swarms, and navy/coast guard platforms.
- Ku, Ka Band available
- 3-Axes Stabilization System
- 4-Axes Tracking System
- High Dynamic Response by Direct Drive Technology
- Supports LEO/MEO/GEO Tracking
- Near-silent performance and vibration-free operation
- Quick and precise automatic satellite acquisition
- High Data Rate Transmission
- Military Ka-Band FeedOPTIONAL
- 4G/5G/LTE supported modem for load balancing and bonding solutionsOPTIONAL
| RF CHARACTERISTIC (PMAR-45) | Ku-Band | Ka-Band |
| Frequency (GHz) Tx | 13.75-14.50 | 27.50-31.00 |
| Frequency (GHz) Rx | 10.70-12.75 | 17.70 - 21.70 |
| Antenna Gain @ Midband (dBi) Tx | 34.6 | 40.8 |
| Antenna Gain @ Midband (dBi) Rx | 33.0 | 37.4 |
| G/T (dB/K) | 11 | 13.8 |
| Antenna Pattern Compliance | Compliant with MIL-STD-188-164C, ITU-R S.580-6 & ITU-R S.465-6 | |
| Pointing Accuracy | ≤0.2° (R.M.S) | ≤0.2° (R.M.S) |
| Initial Acquisition Time | ≤2min | ≤2min |
| ENVIRONMENTAL SPECIFICATIONS | PMAR SERIES | |
| Temperature Range Operational | -20 ~ +60°C | |
| Temperature Range Survival | -30 ~ +70°C | |
| Protection | IP65 | |
| Wind Speed Operational | 80 Knot | |
| Wind Speed Survival | 110 Knot | |
| ENVIRONMENTAL SPECIFICATIONS | PMAR SERIES | |
| Temperature Range Operational | -20 ~ +60°C | |
| Temperature Range Survival | -30 ~ +70°C | |
| Protection | IP65 | |
| Wind Speed Operational | 80 Knot | |
| Wind Speed Survival | 110 Knot |
