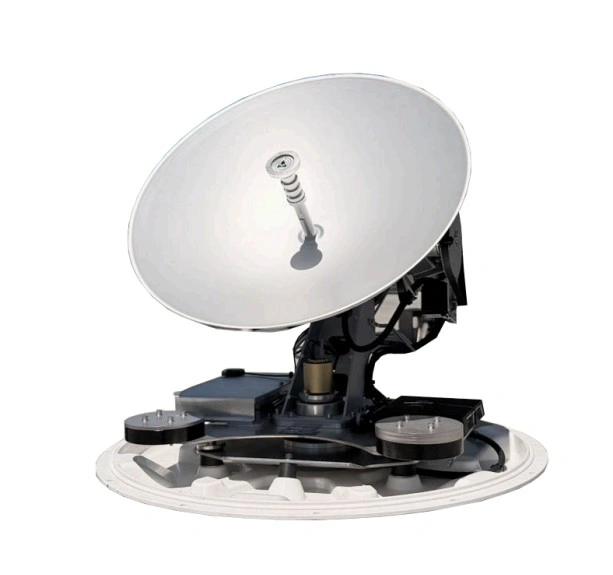

The PMAR-60B is a rugged, MIL-STD compliant High-Speed Mobile Terminal built for military and commercial use in extreme environments. Its advanced antenna feed enables seamless operation across GEO, MEO, LEO, and HEO orbits, delivering resilient, cost‑effective communication. Superior precision comes from a proprietary closed‑loop beacon processing system, achieving near‑zero pointing error for maximum link stability. The 4‑axis mount eliminates the keyhole effect, ensuring uninterrupted connectivity even when the satellite is directly overhead or signals are weak. Operational efficiency is enhanced by an innovative gyro‑lock mode that allows instant re‑connection after obstructions, minimizing downtime. Designed for longevity, sealed brushless motors and a balanced inertial system reduce wear, lower maintenance needs, and keep power consumption just a few watts above BUC requirements.
- Available in X, Ku and Ka Band
- GEO, MEO, LEO, HEO Compatible
- High-Precision Stabilization
- 4-Axes Tracking
- Integrated Modem Architecture
- Rapid Blockage Recovery Time
- Single-Cable Solution
- Supports OpenAMIP
- Rapid Acquisition
- 4G/ 5G/LTE supported modem for load balancing and bonding solutionsOPTIONAL
| Reflector Diameter | 0.6m | |||
| Stabilization Platform | 3-axis (plus Auto Skew) | |||
| Tracking Mode | Carrier Tracking，SNR Direct Tracking | |||
| Tracking Accuracy | 0.2° RMS | |||
| Modem Interface | Ethernet，OpenAMIP | |||
| Modem Support | iDirect, Newtec, Gilat, THISS, Hughes, Comtech | |||
| Power Input | 85V~264V AC / DC, 18-36V | |||
| RF CHARACTERISTICS | KU-BAND | |||
| Frequency (GHz) Tx | 13.75 - 14.50 | |||
| Frequency (GHz) Rx | 10.70 - 12.75 | |||
| Gain (dBi) Tx | 37.0 @ 14.25GHz | |||
| Gain (dBi) Rx | 35.5 @ 11.75GHz | |||
| EIRP | 44.0 (w 6WBUC) | |||
| G/T (dB/K) | 14.5 | |||
| Polarization | Linear | |||
| Cross-Pol Isolation | ＞30dB | |||
| MECHANICAL SPECIFICATIONS | Azimuth | Elevation | Roll | |
| Motion Range | Unlimited | -10° ~ 110° | ±30° | |
| Skew Control | Automatic, with Pre-set Offset Supported | |||
| Supported Orbit | GEO, MEO, LEO, HEO | |||
| INU & Gyros | Embedded | |||
| Dimensions (DxH) | 83cm x 79cm | |||
| Weight | 52kg | |||
| ENVIRONMENTAL SPECIFICATION | ||||
| Temperature Range Operational | -20°C ~ 55°C | |||
| Temperature Range Survival | -55 ~ +70°C | |||
| Wind Speed Operational | 80 kn | |||
| Wind Speed Survival | 110 kn | |||
| Protection Grade | IP65 | |||
