Overview

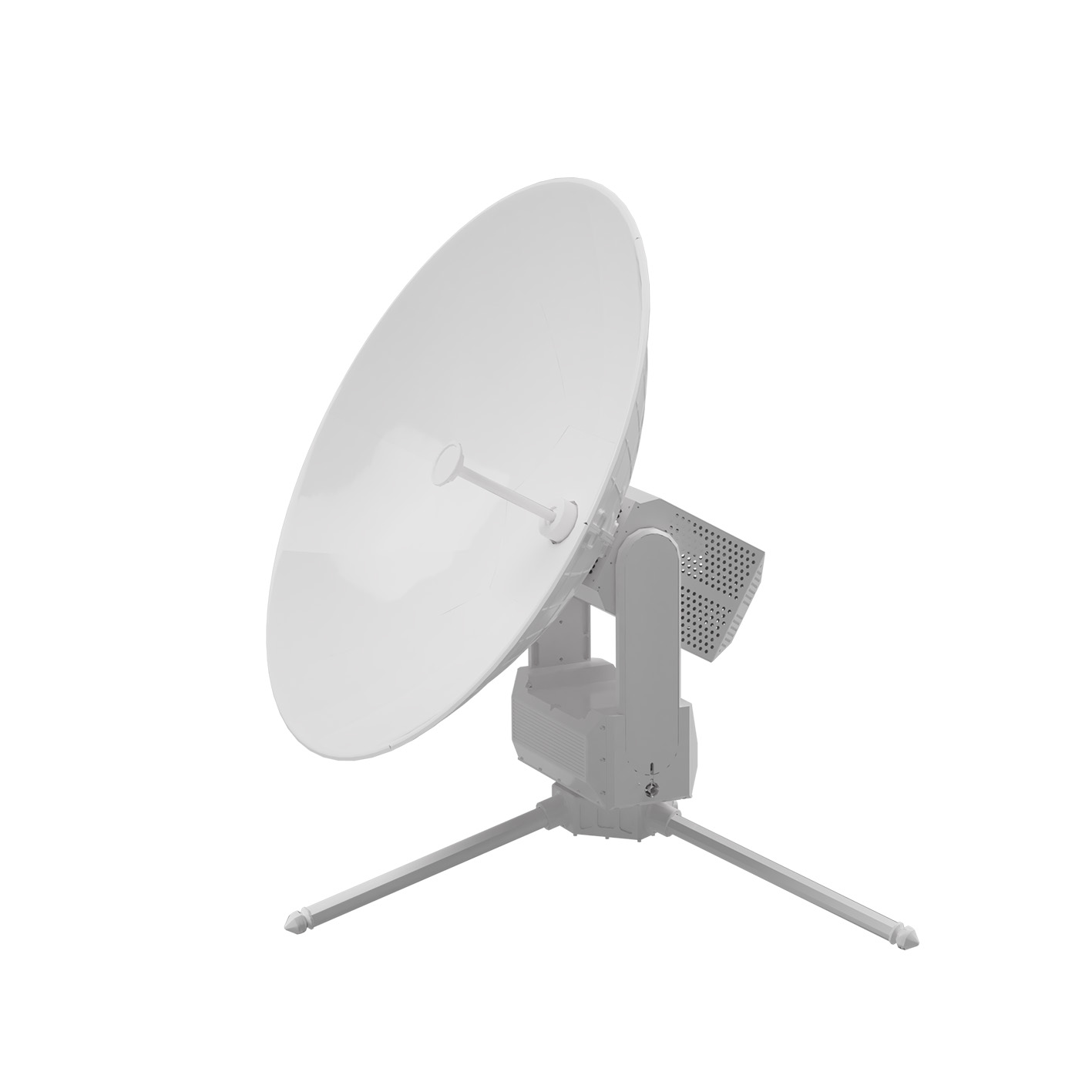

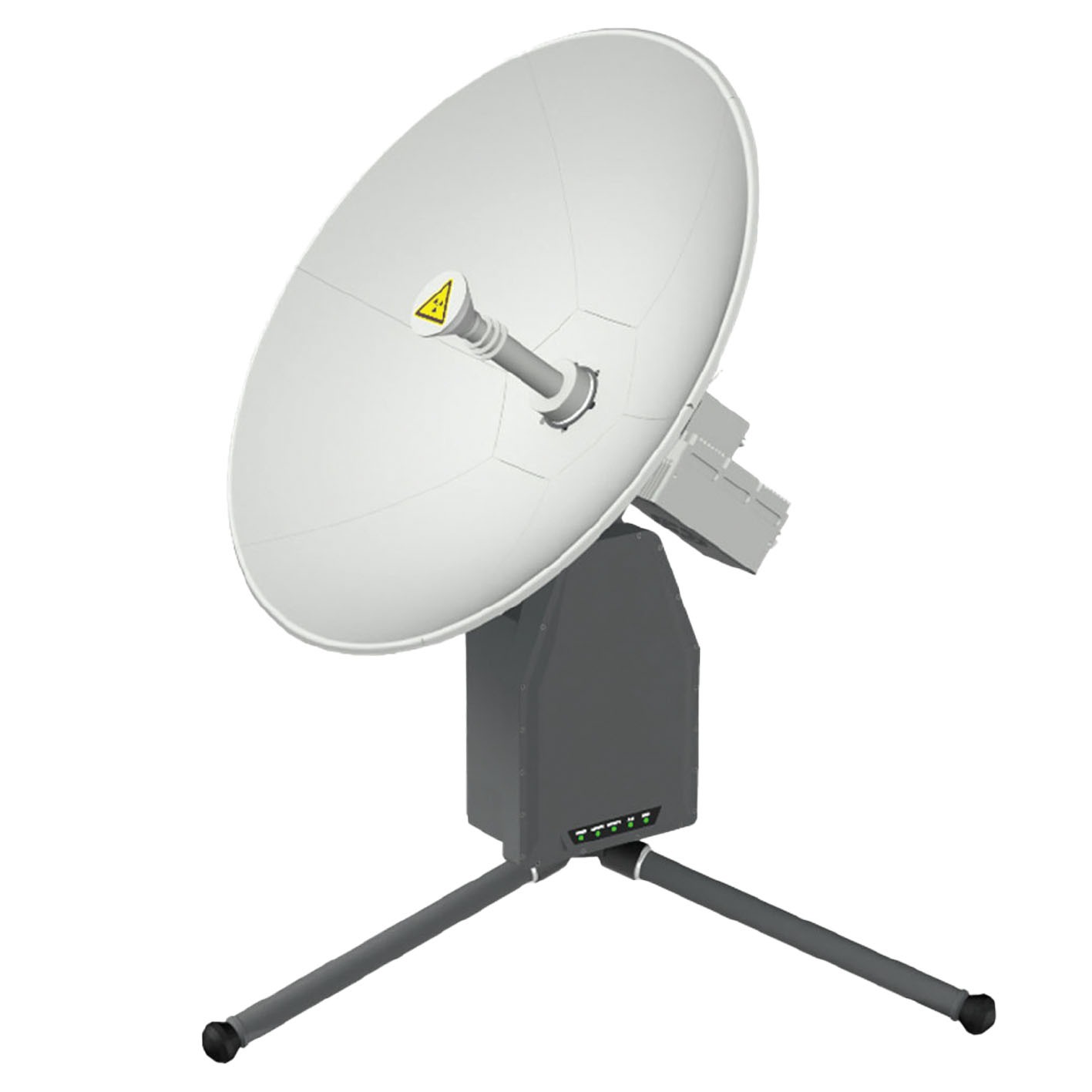

The most compact PALS Man-Pack series antenna is PMA-60N. It supports manual, auto and one-button features for locking to the satellite in minutes. lts feed structure assures high gain, low side lobe and perfect RF performance and it is available in different bands. It is equipped with a GPS, position detection, polarization adjustment, and servo drive with a high-performance satellite receiving system
and can be carried in an IATA weight-compliant Back-Pack only by a single person. It is deployable within 2 minutes and can go to live instantly. No integration tool neither training is needed to start the operation.
The PMA-60 is suitable for a wide range of quick applications, including broadcasting, corporate networks, military, and emergency communications.
AII system configurations are suitable for inaccessible locations, such as hills and mountains. The flyaway antenna does not need to be leveled and can operate on inclines of up to 75°.
Download Catalogue
GENERAL SPECIFICATIONS
- GPS
- Dual GPS Module
- Third Axis Rotation Range
- ± 7°
- Accurancy
- Heading: so.2° /m , Positioning: 2m CEP 2cm+lppm RTK, Speed: sQ.03m/ s, Timing: 20ns
- Az/El Deploy Speed
- 10° /S (Variable)
- Polarization Deploy Speed
- 3° /S (Variable)
- Azimuth Antenna Travels
- ± 200°
- Elevation Antenna Travels
- 10°-90°
- Polarization Antenna Travels
- ± 110° (Ku Model Only)
- Az/El Peaking Speed
- 7°/S
- Weight
- 10.5 Kg
- Backpack Size
- 490x400x310mm
- Reflector Diameter
- 0.6m
- Antenna Type
- Circular symmetric reflector with center feed
- DC lnput
- 10-72 VDC@ 15 ADC (max) (External: Hand generator, Solar, AC and Vehicle)
- DC Output
- 24VDC@8 ADC
- Battery Details (Optional)
- PT 18650 (B82590 Option) 18V 5.5Ah 99Wh (17V~18.5V) W: s0.6Kg
- Battery Working Temperature (Optional)
- -20°C ~ +55°C(-30°C ~ +55°C Option)
- PMS Weight / Size (Optional)
- 2.2 Kg (lnclude 2 sets PT 18650) / 150*110*80mm
Key Features
• Available in X, Ku, and Ka Bands
• LEO/MEO Overhead Tracking Option
• Lightweight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25 mm
• 3-Axes simultaneous motorisation
• One-Button Operation
• lntegrated GPS, Compass, Beacon / DVB Receiver
• Built-in Wi-Fi and has a Web-Based User lnterface
• Supports Wide Range BUCs (from 6W to 40W)
• Powered by Mains or Battery
• lntegrated / External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Option
• Supports OpenAmip
RF CHARACTERISTIC
- X-Band Frequency (GHz) Tx
- 7.9~8.4 GHz
- X-Band Frequency (GHz) Rx
- 7.25~7.75 GHz
- Ku-Band Frequency (GHz) Tx
- 13.75~14.50 GHz
- Ku-Band Frequency (GHz) Rx
- 10.70~12.75 GHz
- Ka-Band Frequency (GHz) Tx
- 27.50~31.00 GHz
- Ka-Band Frequency (GHz) Rx
- 17.70~21.20 GHz
- X-Band Antenna Gain (±0.2 dBi) Tx
- 32.3
- X-Band Antenna Gain (±0.2 dBi) Rx
- 31.5
- Ku-Band Antenna Gain (±0.2 dBi) Tx
- 37.1
- Ku-Band Antenna Gain (±0.2 dBi) Rx
- 35.6
- Ka-Band Antenna Gain (±0.2 dBi) Tx
- 43.6
- Ka-Band Antenna Gain (±0.2 dBi) Rx
- 40.2
- X-Band Tx / Rx lsolation (dB)
- 85
- Ku-Band Tx / Rx lsolation (dB)
- 85
- Ka-Band Tx / Rx lsolation (dB)
- 85
- X-Band Rx / Tx lsolation (dB)
- 40
- Ku-Band Rx / Tx lsolation (dB)
- 40
- Ka-Band Rx / Tx lsolation (dB)
- 40
- X Band CPI (On Axis, linear)
- Tx: 1.0/Rx: 1.5 (Axial Ratio)
- Ku Band CPI (On Axis, linear)
- 35
- Ka Band CPI (On Axis, linear)
- Tx: 1.0/Rx: 1.5 (Axial Ratio)
- X Band Polarization
- RHCP / LHCP (2 Ports)
- Ku Band Polarization
- Linear H/V (2 Ports)
- Ka Band Polarization
- RHCP / LHCP (2 Ports)
- X Band Waveguide lnterface Tx
- WR-112
- X Band Waveguide lnterface Rx
- WR-112
- Ku Band Waveguide lnterface Tx
- WR-75
- Ku Band Waveguide lnterface Rx
- WR-75
- Ka Band Waveguide lnterface Tx
- WR-28
- Ka Band Waveguide lnterface Rx
- WR-42
- X Band VSWR Tx
- 1.30:1
- X Band VSWR Rx
- 1.50:1
- Ku Band VSWR Tx
- 1.30:1
- Ku Band VSWR Rx
- 1.50:1
- Ka Band VSWR Tx
- 1.30:1
- Ka Band VSWR Rx
- 1.50:1
Key Features
• Available in X, Ku, and Ka Bands
• LEO/MEO Overhead Tracking Option
• Lightweight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25 mm
• 3-Axes simultaneous motorisation
• One-Button Operation
• lntegrated GPS, Compass, Beacon / DVB Receiver
• Built-in Wi-Fi and has a Web-Based User lnterface
• Supports Wide Range BUCs (from 6W to 40W)
• Powered by Mains or Battery
• lntegrated / External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Option
• Supports OpenAmip
Compatibility
ENVIRONMENTAL SPECIFICATIONS
- Temperature Operational
- -30°C~+60°C
- Temperature Survival
- -40°C~+ 70°C
- Wind Speed Operational
- 50km/h (With weight balance)
- Wind Speed Gusts
- 65km/h (With reinforcement weight)
- Humidity (Relative)
- 0-98%
- Altitude Above Sea Level
- ≤5000m
- Protection Grade
- IP67
Key Features
• Available in X, Ku, and Ka Bands
• LEO/MEO Overhead Tracking Option
• Lightweight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25 mm
• 3-Axes simultaneous motorisation
• One-Button Operation
• lntegrated GPS, Compass, Beacon / DVB Receiver
• Built-in Wi-Fi and has a Web-Based User lnterface
• Supports Wide Range BUCs (from 6W to 40W)
• Powered by Mains or Battery
• lntegrated / External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Option
• Supports OpenAmip
