PMA-120

  • Brands:
  • Product Code:
  • Stock:
  • PALS
  • PMA-120N
  • In Stock

Overview

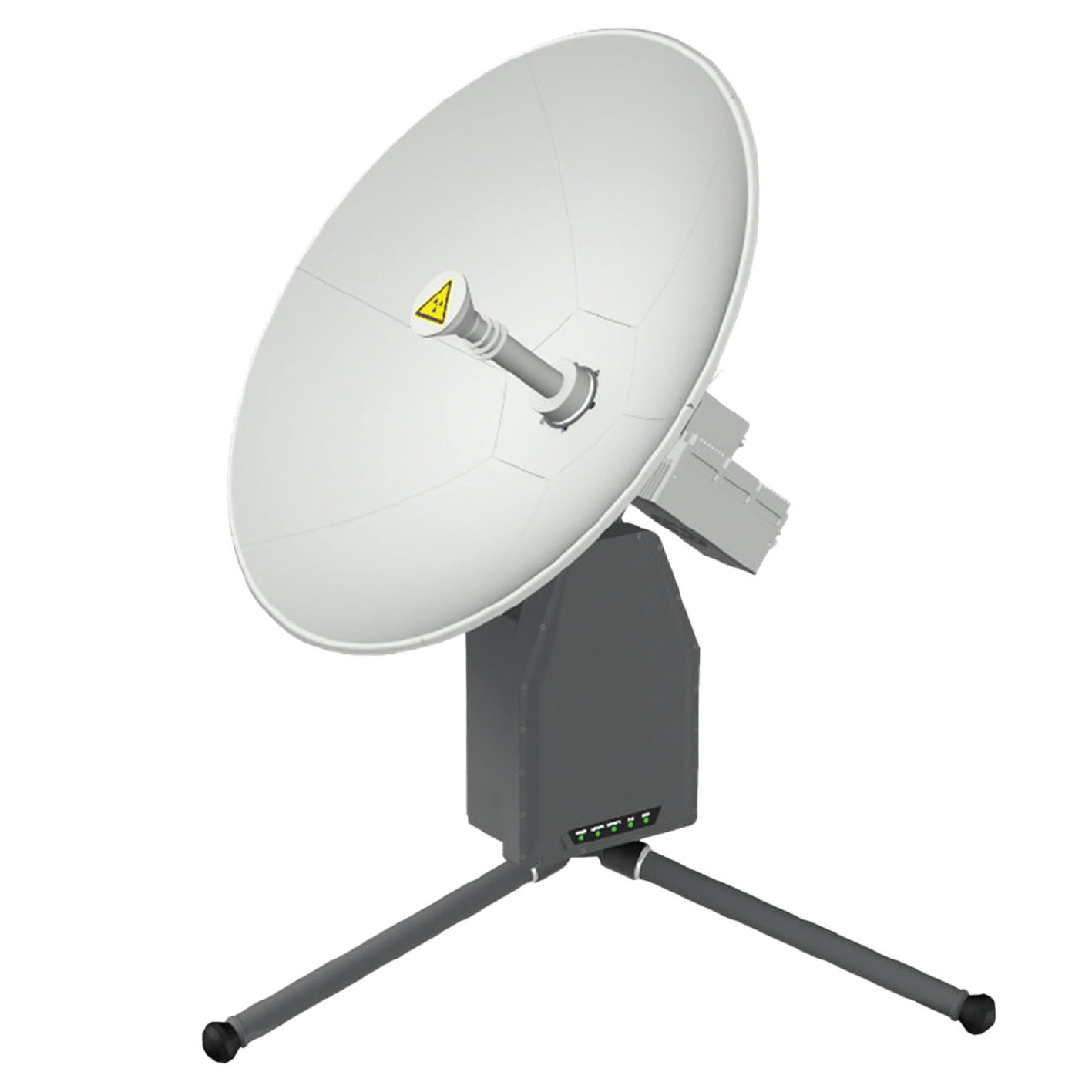

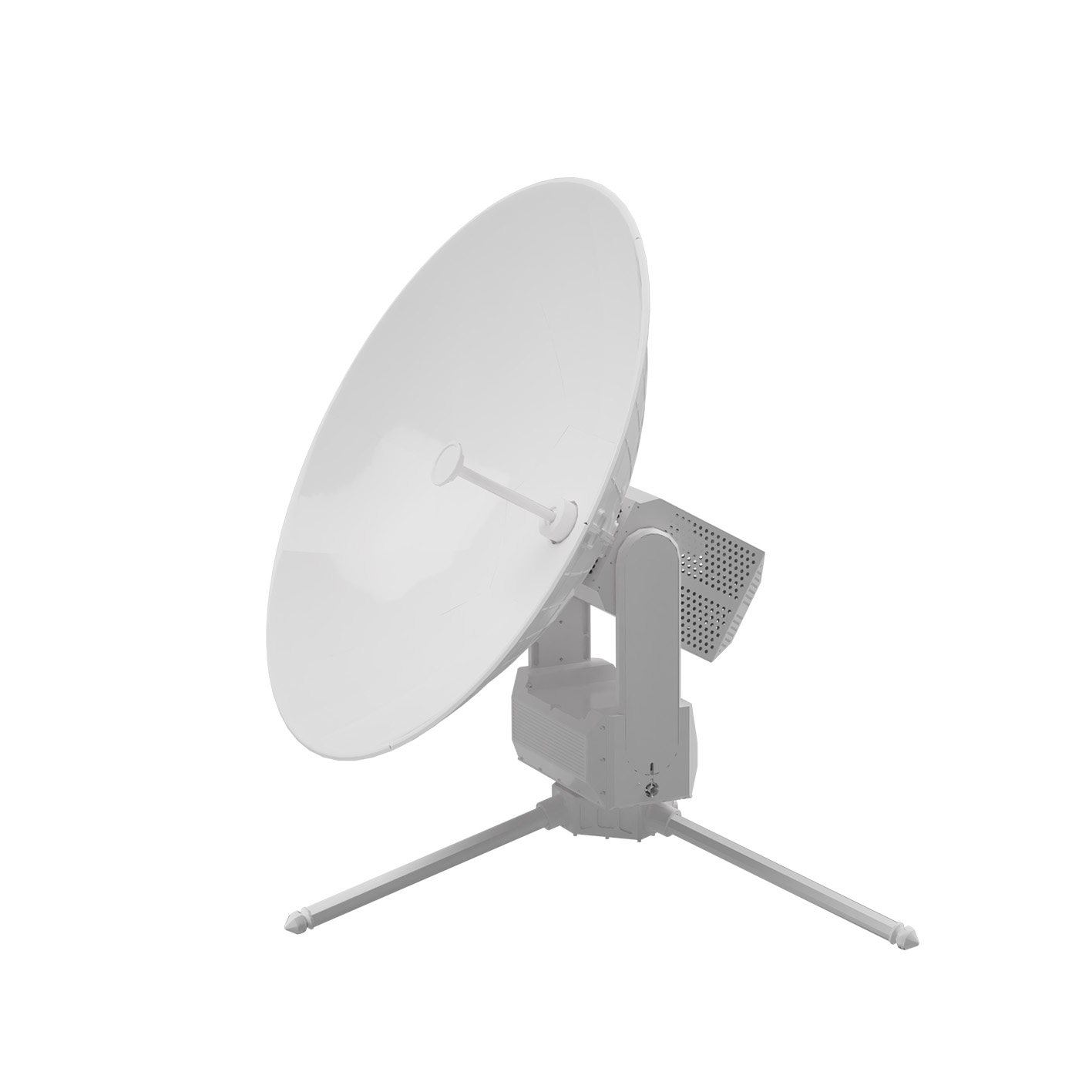

The PMA-120 is a compact, portable Man-Pack antenna designed for easy transportation in an IATA-compliant man-pack bag. It can be deployed within 2 minutes and become ready for live operation instantly, with no integration tools or training required.
The antenna supports manual, auto, and one-button satellite locking within 3 minutes. Its advanced feed structure delivers high gain, low side lobes, and excellent RF performance. The PMA-120 operates effectively at inclined angles up to 15°, without the need for leveling, making it suitable for use in hilly and mountainous terrain.
Ideal for challenging locations, the PMA-120 is perfect for quick applications such as broadcasting, corporate networks, military, and emergency communications. It is equipped with GPS, position detection, polarization adjustment, and a high-performance satellite receiving system.


Download Catalogue

GENERAL SPECIFICATIONS

  • GPS
  • Dual GPS Module
  • Third Axis Rotation Range
  • ± 7°
  • Accurancy
  • Heading: so.2° /m, Positioning: 2m CEP 2cm+lppm RTK, Speed: sQ.03m/ s, Timing: 20ns
  • Az/El Deploy Speed
  • 10° /S (Variable)
  • Polarization Deploy Speed
  • 3° /S (Variable)
  • Azimuth Antenna Travels
  • ± 200°
  • Elevation Antenna Travels
  • 10°-90°
  • Polarization Antenna Travels
  • ± 110° (Ku Model Only)
  • Az/El Peaking Speed
  • 7 °/S
  • Weight
  • 19.5 Kg
  • Backpack Size
  • 7 95x600x400mm
  • Reflector Diameter
  • 1.2m
  • Antenna Type
  • Circular symmetric reflector with center feed
  • DC lnput
  • 10-72 VDC@ 15 ADC (max) (External: Hand generator, Solar, AC and Vehicle)
  • DC Output
  • 24VDC@8 ADC
  • Battery Details (Optional)
  • PT 18650 (B82590 Option) 18V 5.5Ah 99Wh (17V~18.5V) W: s0.6Kg
  • Battery Working Temperature (Optional)
  • -20°C ~ +55°C(-30°C ~ +55°C Option)
  • PMS Weight / Size (Optional)
  • 2.2 Kg (lnclude 2 sets PT 18650) / 150*110*80mm

Key Features

• Available in Ku, Ka and X Bands
• LEO/MEO Overhead Tracking Option
• Light-weight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25 mm
• 3-Axes simultaneous motorisation
• One-Button Operation
• Integrated GPS, Compass, Beacon / DVB Receiver
• Built-in Wi-Fi and a Web-Based User Interface
• Supports Wide Range BUCs (from 6W to 40W)
• Powered by Mains or Battery
• Integrated / External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Option
• Supports OpenAmip

RF CHARACTERISTIC

  • X Band Frequency (GHz) Tx
  • 7.9~8.4 GHz
  • X Band Frequency (GHz) Rx
  • 7.25~7.75 GHz
  • Ku Band Frequency (GHz) Tx
  • 13.75~14.50 GHz
  • Ku Band Frequency (GHz) Rx
  • 10.70~12.75 GHz
  • Ka Band Frequency (GHz) Tx
  • 27.50~31.00 GHz
  • Ka Band Frequency (GHz) Rx
  • 17.70~21.20 GHz
  • X Band Antenna Gain (±0.2 dBi) Tx
  • 37.8
  • X Band Antenna Gain (±0.2 dBi) Rx
  • 37.2
  • Ku Band Antenna Gain (±0.2 dBi) Tx
  • 42.8
  • Ku Band Antenna Gain (±0.2 dBi) Rx
  • 41.5
  • Ka Band Antenna Gain (±0.2 dBi) Tx
  • 49.3
  • Ka Band Antenna Gain (±0.2 dBi) Rx
  • 45.7
  • X Band Tx / Rx lsolation (dB)
  • 85
  • Ku Band Tx / Rx lsolation (dB)
  • 85
  • Ka Band Tx / Rx lsolation (dB)
  • 85
  • X Band Rx / Tx lsolation (dB)
  • 40
  • Ku Band Rx / Tx lsolation (dB)
  • 40
  • Ka Band Rx / Tx lsolation (dB)
  • 40
  • X Band CPI (On Axis, linear)
  • Tx: 1.0/Rx: 1.5 (Axial Ratio)
  • Ku Band CPI (On Axis, linear)
  • 35
  • Ka Band CPI (On Axis, linear)
  • Tx: 1.0/Rx: 1.5 (Axial Ratio)
  • X Band Polarization
  • RHCP / LHCP (2 Ports)
  • Ku Band Polarization
  • Linear H/V (2 Ports)
  • Ka Band Polarization
  • RHCP / LHCP (2 Ports)
  • X Band Waveguide lnterface Tx
  • WR-112
  • X Band Waveguide lnterface Rx
  • WR-112
  • Ku Band Waveguide lnterface Tx
  • WR-75
  • Ku Band Waveguide lnterface Rx
  • WR-75
  • Ka Band Waveguide lnterface Tx
  • WR-28
  • Ka Band Waveguide lnterface Rx
  • WR-42
  • X Band VSWR Tx
  • 1.30:1
  • X Band VSWR Rx
  • 1.50:1
  • Ku Band VSWR Tx
  • 1.30:1
  • Ku Band VSWR Rx
  • 1.50:1
  • Ka Band VSWR Tx
  • 1.30:1
  • Ka Band VSWR Rx
  • 1.50:1

Key Features

• Available in Ku, Ka and X Bands
• LEO/MEO Overhead Tracking Option
• Light-weight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25 mm
• 3-Axes simultaneous motorisation
• One-Button Operation
• Integrated GPS, Compass, Beacon / DVB Receiver
• Built-in Wi-Fi and a Web-Based User Interface
• Supports Wide Range BUCs (from 6W to 40W)
• Powered by Mains or Battery
• Integrated / External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Option
• Supports OpenAmip

Compatibility

ENVIRONMENTAL SPECIFICATIONS

  • Temperature Operational
  • -30°C~+60°C
  • Temperature Survival
  • -40°C~+ 70°C
  • Wind Speed Operational
  • 50km/h (With weight balance)
  • Wind Speed Gusts
  • 65km/h (With reinforcement weight)
  • Humidity (Relative)
  • 0-98%
  • Altitude Above Sea Level
  • ≤5000m
  • Protection Grade
  • IP67

Key Features

• Available in Ku, Ka and X Bands
• LEO/MEO Overhead Tracking Option
• Light-weight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25 mm
• 3-Axes simultaneous motorisation
• One-Button Operation
• Integrated GPS, Compass, Beacon / DVB Receiver
• Built-in Wi-Fi and a Web-Based User Interface
• Supports Wide Range BUCs (from 6W to 40W)
• Powered by Mains or Battery
• Integrated / External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Option
• Supports OpenAmip

Compatibility
