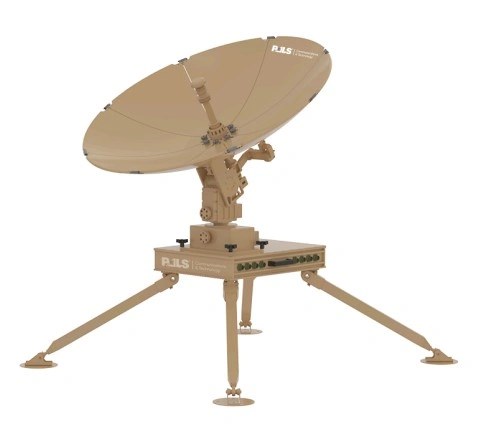

PMA-100 MIL

  • Brands:
  • Product Code:
  • Stock:
  • PALS
  • PMA-100 MIL
  • In Stock

Overview

PMA-100 MIL has Interchangeable reflector segments. It is modular and customized to suit the exact end user's configuration. It is lightweight, portable, easy to deploy in less than 3 minutes without tools.
Fast satellite acquisition, supports unskilled operators with ease of pointing under difficult environmental conditions. It offers a simple operator interface for field-level control. AII systems configurations are suitable for inaccessible locations up hills and mountains. The flyaway antenna does not need to be leveled and it can be operated at up to 15° inclined locations.
PMA-100 MIL is designed and tested according MIL-STD-810F standard to efficiently work even within   harsh and tactical environmental conditions. It has an IATA compliant packaging allowing transportation via commercial airlines.


Download Catalogue

GENERAL SPECIFICATIONS

  • GPS
  • Dual GPS Module
  • Third Axis Rotation Range
  • ± 7°
  • Accurancy Heading
  • ≤ 0.2° /m
  • Accurancy Positioning
  • 2m CEP 2cm+lppm RTK
  • Accurancy Speed
  • ≤ 0.03m/ s
  • Accurancy Timing
  • 20ns
  • Ka Band CPI (On Axis, linear) Tx
  • 1.0/Rx: 1.5 (Axial Ratio)

Key Features

• LEO/MEO Overhead Tracking Option
• One button auto acquires, using integrated GPS, compass and beacon / carrier receiver. With Built-in Wi-Fi and a Web-based User lnterface for Easy PC and Smartphone Configuration
• 3 Axis simultaneous motorisation
• Mains or Battery Operation
• 1m carbon fiber reflector in Ku, Ka and X bands. Lightweight, high strength carbon fiber reflector accuracy R.M.S 0.25mm
• Wide range BUC from 6W to 40W and compatibility to models from various OEMs
• lntegrated modem, External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Available
• OpenAmip

RF CHARACTERISTIC

  • X Band Frequency (GHz) Tx
  • 7.9~8.4 GHz
  • Ku Band Frequency (GHz) Tx
  • 13.75~14.50 GHz
  • Ka Band Frequency (GHz) Tx
  • 27.50~31.00 GHz
  • X Band Frequency (GHz) Rx
  • 7.25~7.75 GHz
  • Ku Band Frequency (GHz) Rx
  • 10.70~12.75 GHz
  • Ka Band Frequency (GHz) Rx
  • 17.70~21.20 GHz
  • X Band Antenna Gain (±0.2 dBi) Tx
  • 36.4
  • Ku Band Antenna Gain (±0.2 dBi) Tx
  • 41.4
  • Ka Band Antenna Gain (±0.2 dBi) Tx
  • 48.0
  • Ka Band Antenna Gain (±0.2 dBi) Rx
  • 44.5
  • Ku Band Antenna Gain (±0.2 dBi) Rx
  • 39.3
  • X Band Antenna Gain (±0.2 dBi) Rx
  • 35.7
  • X / Ku / Ka Band Tx / Rx lsolation (dB)
  • 85
  • X / Ku / Ka Band Rx / Tx lsolation (dB)
  • 40
  • X Band CPI (On Axis, linear) Tx
  • 1.0/Rx: 1.5 (Axial Ratio)
  • Ku Band CPI (On Axis, linear) Tx
  • 35
  • X Band Polarization
  • RHCP / LHCP (2 Ports)
  • Ku Band Polarization
  • Linear H/V (2 Ports)
  • Ka Band Polarization
  • RHCP / LHCP (2 Ports)
  • X Band Waveguide lnterface Tx
  • WR-112
  • Ku Band Waveguide lnterface Tx
  • WR-75
  • Ka Band Waveguide lnterface Tx
  • WR-28
  • Ka Band Waveguide lnterface Rx
  • WR-42
  • Ku Band Waveguide lnterface Rx
  • WR-75
  • X Band Waveguide lnterface Rx
  • WR-112
  • X / Ku / Ka Band Band VSWR Tx
  • 1.30:1
  • X / Ku / Ka Band Band VSWR Rx
  • 1.50:1
  • AZ / EL Deploy Speed
  • 10° /S (Variable)
  • Polarization Deploy Speed
  • 3° /S (Variable)
  • Azimuth Antenna Travels
  • ± 200°
  • Elevation Antenna Travels
  • 10°-90°
  • Polarization Antenna Travels
  • ± 110° (Ku Model Only)
  • AZ / EL Peaking Speed
  • 7°/S
  • Weight
  • 16.5 Kg
  • Backpack Size
  • 680x450x350mm
  • Reflector Diameter
  • 1.0m
  • Antenna Type
  • Circular symmetric reflector with center feed
  • DC lnput
  • 10-72 VDC@ 15 ADC (max) (External: Hand generator, Solar, AC and Vehicle)
  • DC Output
  • 24VDC@8 ADC
  • Battery Details (Optional)
  • PT18650 (B82590 Option) 18V 5.5Ah 99Wh (17V~18.5V) W: s0.6Kg
  • Battery Working Temperature (Optional)
  • -20°C ~ +55°C(-30°C ~ +55°C Option)
  • PMS Weight / Size (Optional)
  • 2.2 Kg (lnclude 2 sets PT18650) / 150*110*80mm

Key Features

• LEO/MEO Overhead Tracking Option
• One button auto acquires, using integrated GPS, compass and beacon / carrier receiver. With Built-in Wi-Fi and a Web-based User lnterface for Easy PC and Smartphone Configuration
• 3 Axis simultaneous motorisation
• Mains or Battery Operation
• 1m carbon fiber reflector in Ku, Ka and X bands. Lightweight, high strength carbon fiber reflector accuracy R.M.S 0.25mm
• Wide range BUC from 6W to 40W and compatibility to models from various OEMs
• lntegrated modem, External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Available
• OpenAmip

Compatibility

ENVIRONMENTAL SPECIFICATIONS

  • Temperature Operational
  • -30°C~+60°C
  • Temperature Survival
  • - 40°C~+ 70°C
  • Wind Speed Operational
  • 50km/h (With weight balance)
  • Wind Speed Gusts
  • 65km/h (With reinforcement weight)
  • Humidity (Relative)
  • 0-98%
  • Altitude Above Sea Level
  • ≤ 5000m
  • Protection Grade
  • IP67
