PMA-100

  • Brands:
  • Product Code:
  • Stock:
  • PALS
  • PMA-100N
  • In Stock

Overview

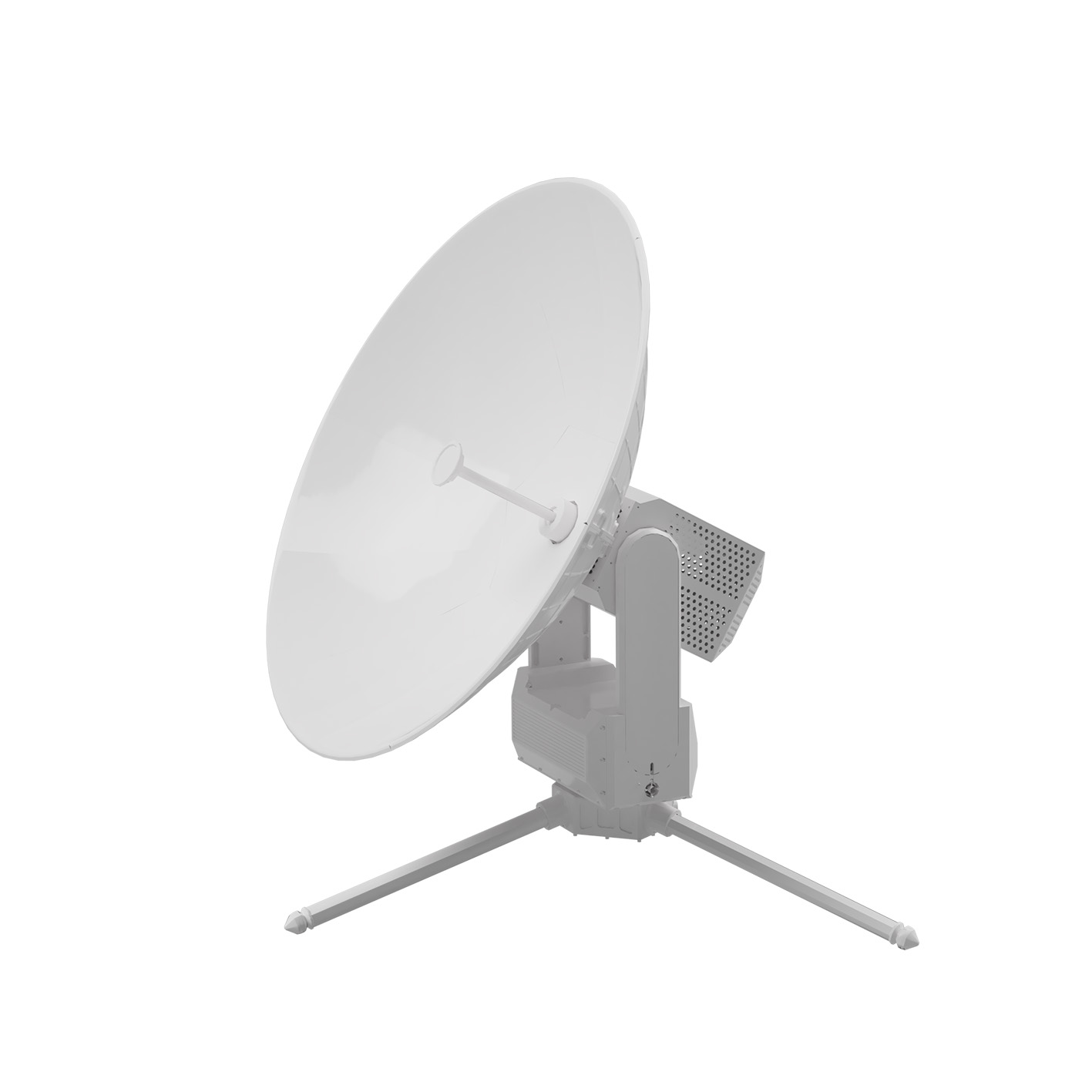

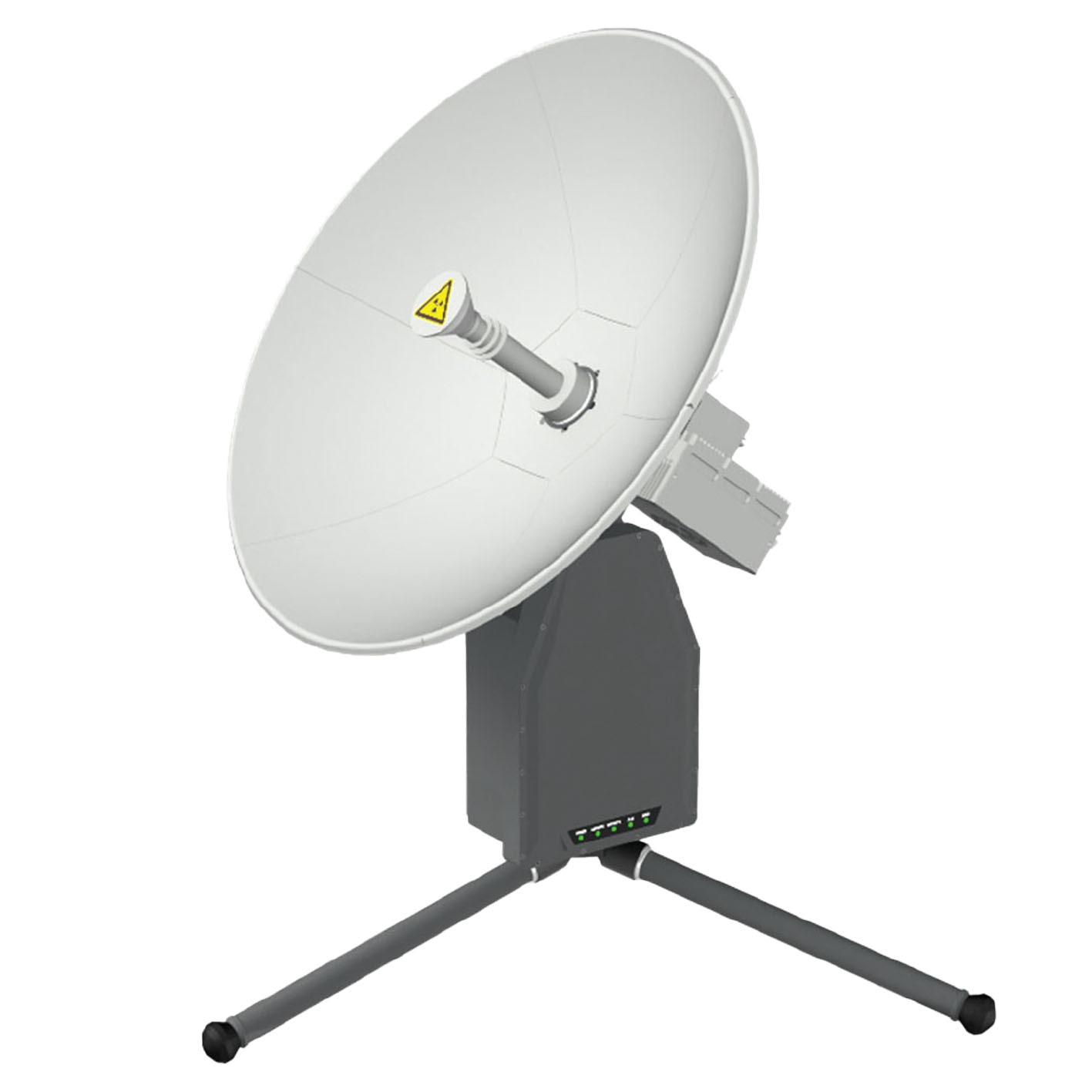

The Man-Pack type PMA-100 has a 1.0m reflector size and supports manual, auto, and one-button satellite locking, enabling quick setup in minutes. Its advanced feed structure ensures high gain, low side lobes, and excellent RF performance. Available in various frequency bands, the PMA-100 is equipped with GPS, position detection, polarization adjustment, and a servo drive integrated with a high-performance satellite receiving system.
The PMA-100 is designed for easy transportation in an IATA-compliant backpack, making it portable by a single user. It can be deployed within minutes and be ready for live operation instantly without any additional tools neither training required.
Ideal for broadcasting, corporate networks, military, and emergency communications, the PMA-100 is versatile and suitable for deployment in challenging locations, including hills and mountains. The antenna operates without leveling and can function on inclined angles up to 15°.


Download Catalogue

GENERAL SPECIFICATIONS

  • Third Axis Rotation Range
  • ±7°
  • Dual GPS Module
  • Heading accuracy:so.2°/m, Positioning accuracy: 2m CEP 2cm+ lppm RTK, Speed accuracy:so.03m/s, Timing accuracy:2ons, Data update rate: 5Hz
  • Reflector Material
  • Carbon Fibre
  • Type of Antenna
  • Circular symmetric reflector with center feed
  • Az/El Deploy Speed
  • 10° /S (Variable)
  • Polarization Deploy Speed
  • 3° /S (Variable)
  • Azimuth Antenna Travels
  • ± 200°
  • Az/El Antenna Travels
  • 7 °/S
  • Weight
  • 12.5 Kg
  • Backpack Size
  • 540x400x310mm
  • Reflector Diameter
  • 1.0 m
  • Antenna Type
  • Circular symmetric reflector with center feed
  • DC lnput
  • 10-72 VDC@ 15 ADC (max) (External: Hand generator, Solar, AC and Vehicle)
  • DC Output
  • 24VDC@8 ADC
  • Battery Details (Optional)
  • PT 18650 (B82590 Option) 18V 5.5Ah 99Wh (17V~18.5V) W: s0.6Kg
  • Battery Working Temperature (Optional)
  • -20°C ~ +55°C(-30°C ~ +55°C Option)
  • PMS Weight / Size (Optional)
  • 2.2 Kg (lnclude 2 sets PT 18650) / 150*110*80mm

Key Features

• Available in Ku, Ka and X Bands
• LEO/MEO Overhead Tracking Option
• Lightweight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25 mm
• 3-Axes simultaneous motorisation
• One-Button Operation
• lntegrated GPS, Compass, Beacon / DVB Receiver
• Built-in Wi-Fi and a Web-Based User lnterface
• Supports Wide Range BUCs (from 6W to 40W)
• Powered by Mains or Battery
• lntegrated / External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Option
• Supports OpenAmip

RF CHARACTERISTIC

  • X-Band Frequency (GHz) Tx
  • 7,9-8,4
  • X-Band Frequency (GHz) Rx
  • 7,25-7,75
  • Ku-Band Frequency (GHz) Tx
  • 13,75-14,50
  • Ku-Band Frequency (GHz) Rx
  • 10,70-12,75
  • Ka-Band Frequency (GHz) Tx
  • 27.5-31.0
  • Ka-Band Frequency (GHz) Rx
  • 17.7-21.2
  • X Band Polarization
  • RHCP/LHCP
  • Ku Band Polarization
  • Linear H/V Tx Orthogonal to Rx
  • Ka Band Polarization
  • RHCP/LHCP
  • X Band Antenna Gain at Mid-band ±0.2dB (dBi) Tx
  • 36,4
  • X Band Antenna Gain at Mid-band ±0.2dB (dBi) Rx
  • 35,7
  • Ku Band Antenna Gain at Mid-band ±0.2dB (dBi) Tx
  • 41,4
  • Ku Band Antenna Gain at Mid-band ±0.2dB (dBi) Rx
  • 39,3
  • Ka Band Antenna Gain at Mid-band ±0.2dB (dBi) Tx
  • 48,0
  • Ka Band Antenna Gain at Mid-band ±0.2dB (dBi) Rx
  • 44,5
  • Sidelobe Performance
  • Design to meet EESS_502_ISSUE_l6_rev.3
  • Ku Band Cross Polarization (dB)
  • 35 (Axis)
  • X Band Axial ratio Tx
  • 1,0
  • X Band Axial ratio Rx
  • 1,5
  • Ka Band Axial ratio Tx
  • 1,0
  • Ka Band Axial ratio Rx
  • 1,5
  • X Band Tx - Rx lsolation (dB) Rx
  • 85
  • Ku Band Tx - Rx lsolation (dB) Rx
  • 85
  • Ka Band Tx - Rx lsolation (dB) Rx
  • 85
  • X Band Rx - Tx lsolation (dB) Tx
  • 40
  • Ku Band Rx - Tx lsolation (dB) Tx
  • 40
  • Ka Band Rx - Tx lsolation (dB) Tx
  • 40
  • X Band VSWR Tx
  • 1.30:1
  • X Band VSWR Rx
  • 1.50:1
  • Ku Band VSWR Tx
  • 1.30:1
  • Ku Band VSWR Rx
  • 1.50:1
  • Ka Band VSWR Tx
  • 1.30:1
  • Ka Band VSWR Rx
  • 1.50:1
  • X Band Waveguide Flange lnterface Tx
  • WR112
  • X Band Waveguide Flange lnterface Rx
  • WR112
  • Ku Band Waveguide Flange lnterface Tx
  • WR75
  • Ku Band Waveguide Flange lnterface Rx
  • WR75
  • Ka Band Waveguide Flange lnterface Tx
  • WR28
  • Ka Band Waveguide Flange lnterface Rx
  • WR42

Key Features

• Available in Ku, Ka and X Bands
• LEO/MEO Overhead Tracking Option
• Lightweight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25 mm
• 3-Axes simultaneous motorisation
• One-Button Operation
• lntegrated GPS, Compass, Beacon / DVB Receiver
• Built-in Wi-Fi and a Web-Based User lnterface
• Supports Wide Range BUCs (from 6W to 40W)
• Powered by Mains or Battery
• lntegrated / External modem (iDirect, Comtech, Newtech, Hughes)
• Encryption Option
• Supports OpenAmip

Compatibility

ENVIRONMENTAL SPECIFICATIONS

  • Operation Wind Velocity
  • Steady wind s50km/h (with weight balance);Gust s65km/h (with reinforcement weight).
  • Operation Temperature
  • -30° to +60°
  • Storage Temperature
  • -40°to +70°
  • Altitude Above Sea Level
  • ≤5ooom
  • Protection Grade
  • IP67
  • Relative Humidity
  • 0%-98%
  • Temperature Operational
  • -30°C~+60°C
  • Temperature Survival
  • -40°C~+ 70°C
  • Wind Speed Operational
  • 50km/h (With weight balance)
  • Wind Speed Gusts
  • 65km/h (With reinforcement weight)
  • Humidity (Relative)
  • 0-98%
  • Altitude Above Sea Level
  • ≤5000m
  • Protection Grade
  • IP67
