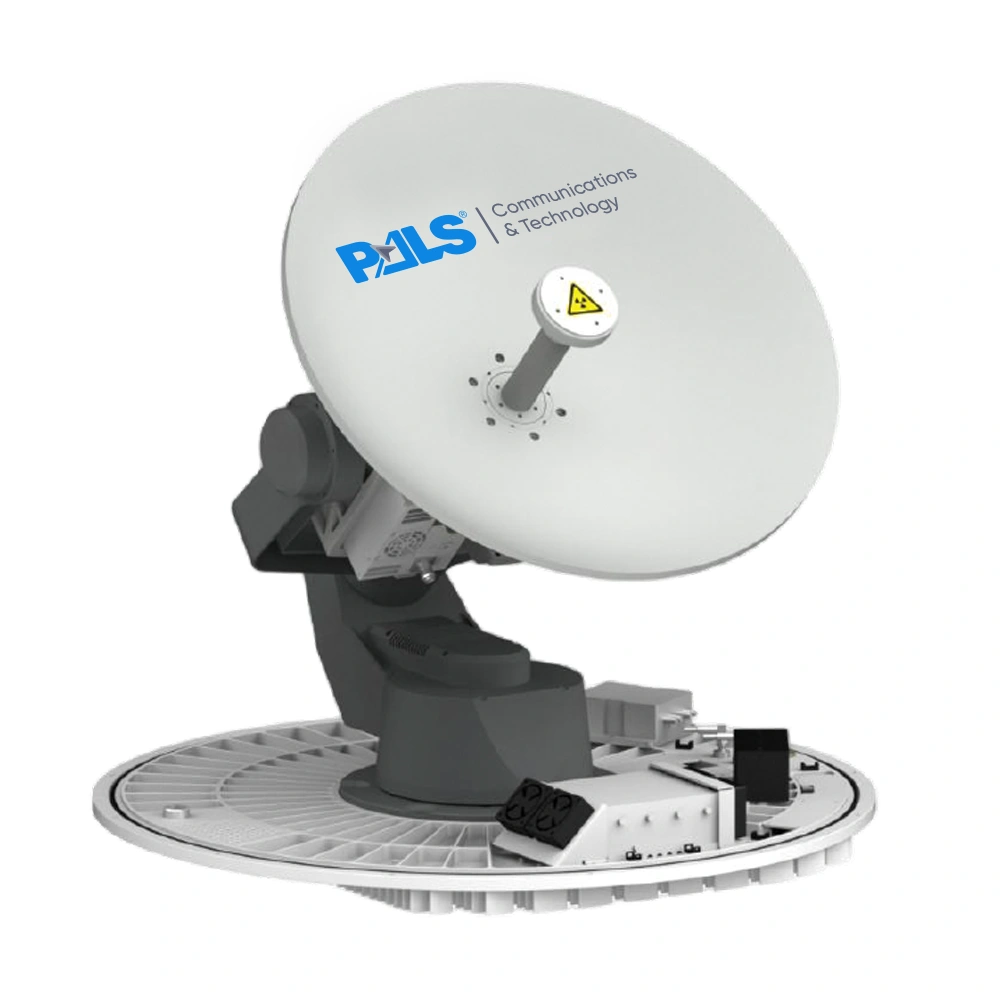

The PMAR-100 is specifically designed for maritime applications, featuring a 3-axes stabilization structure. it includes high-precision angle sensors, magnetic resistance sensors, a gyro sensor, and a GPS antenna. These components enable real-time monitoring and adjustments, ensuring the antenna to automatically search and tracks satellites, maintaining communication even in challenging sea conditions.
The PMAR-100 supports both Ku and Ka band operations with high-precision satellite tracking. Using an advanced conical scan algorithm, it accurately locks onto the satellite with a pointing precision of 0.2° RMS. The antenna provides fast multi-satellite switching, allowing quick adjustments and seamless transitions between target satellites.
With digital finding technology, the PMAR-l00 accurately identifies the target satellite by analyzing the C/N value of the desired satellite carrier signal.
- Available in Ku and Ka Bands
- 4G / SG / LTE supported modem for load balancing and bonding solutionsOPTIONAL
- Seamless communication in all terrains and weather conditions
- LEO, MEO, GEO tracking supported
- Easy to install and refit
- Compact dimensions and weight
- Electronically switchable between cross-polarized (X-pol) and co-polarized (Co-pol) operation
- Compatible with a wide range of modems
| GENERAL SPECIFICATIONS | PMAR-100 | |||
| Reflector Diameter | 1.0m | |||
| Stabilization Platform | 3-Axes (Plus Auto Skew) | |||
| Tracking Mode | Carrier Tracking, SNR Direct Tracking | |||
| Modem Interface | Ethernet, OpenAMIP | |||
| Modem Support | iDirect, Newtec, Gilat, Datum, Comtech, THISS etc. | |||
| Power Input | 85V-264V AC | |||
| RF CHARACTERISTICS | KU-BAND | KA-BAND | ||
| Frequency (GHz) Tx | 13.75 - 14.50 | 27.50 -31.00 | ||
| Frequency (GHz) Rx | 10.70 - 12.75 | 17.70 - 20.20 | ||
| Gain (dBi) Tx | 41.50 | 47.60 | ||
| Gain (dBi) Tx | 40.20 | 44.30 | ||
| Tx / Rx Isolation (dB) | 85 | 85 | ||
| Rx / Tx Isolation (dB) | 30 | 30 | ||
| Cross Polarization (dB) | 35 | 1.5 (axial ratio) | ||
| VSWR Tx | 1.30:1 | 1.30:1 | ||
| VSWR Rx | 1.50.1 | 1.50.1 | ||
| Antenna Pattern Compliancy | ITU-R S.580-6 and ITU-R S.465-6 | |||
| Pointing Accuracy | <0.2° | |||
| MECHANICAL SPECIFICATIONS | Azimuth | Elevation | Cross-Level Range | Skew |
| Motion Range | ∞ | -20°~ +110° | ± 45° | -120°~ +120° |
| Motion Support Roll | ± 20° @8~12 sec. | |||
| Motion Support Pitch | ± 10° @6~12 sec. | |||
| Motion Support Yaw | ±8°@15~20sec | |||
| Dimensions | 1385mm X 1350mm | |||
| Weight | 125 Kg | |||
| ENVIRONMENTAL SPECIFICATION | ||||
| Temperature Range Operational | -30~+55°C | |||
| Temperature Range Survival | -55~ +85°C | |||
| Wind Speed Operational | 110 Knot | |||
| Wind Speed Survival | 150 Knot | |||
| Protection Grade | IP65 | |||
| Humidity | 0 to 100% @ 40°C | |||
