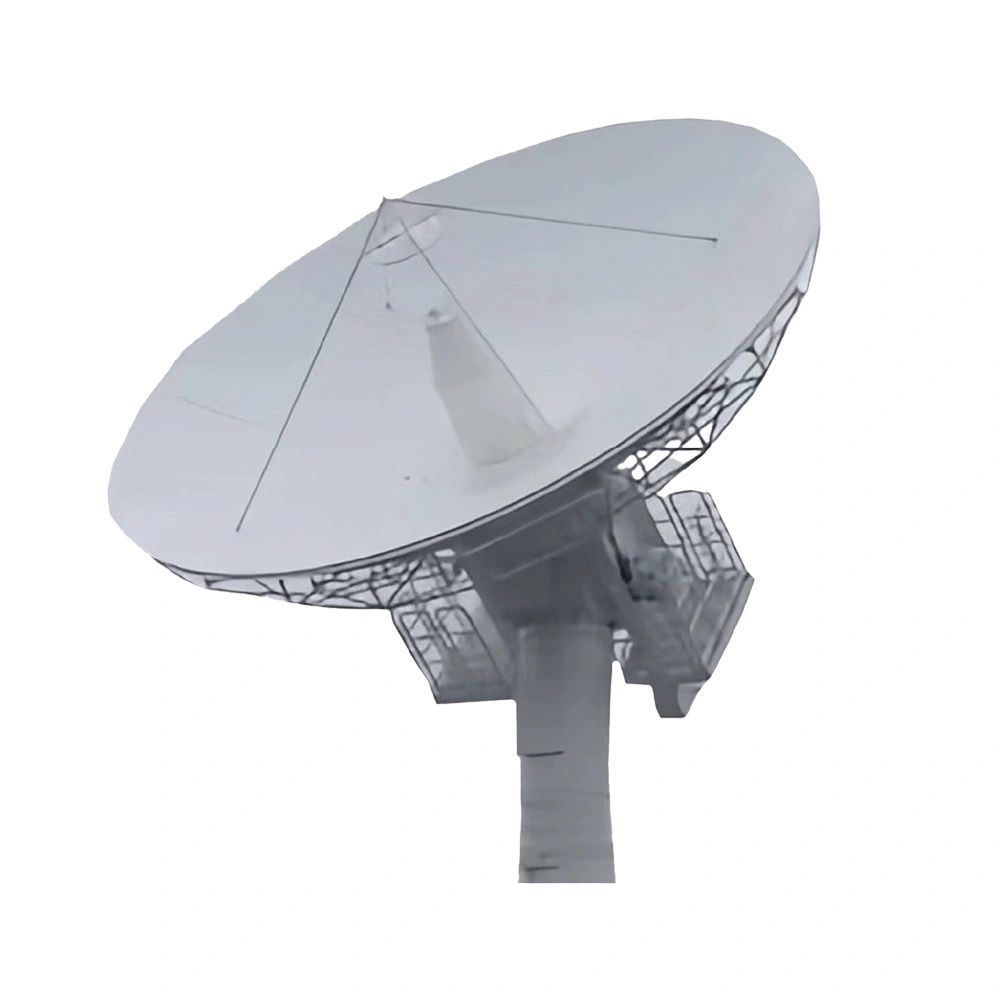

The PALS PFMA-750 is a high-performance antenna system engineered to meet or exceed stringent global standards. It features a highly efficient design that ensures superior gain, low sidelobes, and a high G/T ratio for optimal communication efficiency. Its robust construction utilizes hot-dip zinc processed steel parts for maximum corrosion resistance in harsh environments.
Designed for maximum versatility, the PFMA-750 supports a wide spectrum of frequency bands including C, Ku, Ka, as well as customized L, S, and QV band options. It offers flexible configurations such as Rx/Tx or 2Rx/2Tx, and multiple structure types including A+E and X-Y to meet diverse operational requirements.
The antenna is delivered as a comprehensive turnkey solution, ideally suited for Telemetry, Tracking, and Command (TT&C), mobile deployments, and critical communications. It includes a full suite of optional accessories such as the antenna servo system, de-icing components, BUCs, LNBs, modems, and more to ensure immediate and reliable operation.
| GENERAL SPECIFICATIONS | PFMA-750 | ||
| Reflector Diameter | 7.5m | ||
| Antenna Type | Cassegrain | ||
| Structure | LMC/FMC | ||
| Drive Mode | Motorized | ||
| RF CHARACTERISTIC | C-Band | Ku-Band | Ka-Band |
| Frequency (GHz) Tx | 5.85~6.725 | 13.75～14.80 | 27.50～31GHz |
| Frequency (GHz) Rx | 3.40~4.20 | 10.70～12.75 | 17.70～21.20 |
| Antenna Gain (±0.2 dBi) Tx | [email protected] GHz | 58.72+20lg f/14.2 GHz | [email protected]+GHz |
| Antenna Gain (±0.2 dBi) Rx | [email protected] GHz | 57.04+20lg f/11.7 GHz | [email protected] |
| Polarization | Circular/Linear | Linear | Circular |
| VSWR Tx | 1.35:1 | 1.35:1 | 1.35:1 |
| VSWR Rx | 1.35:1 | 1.35:1 | 1.35:1 |
| Axial ratio 2 port Tx (dB) | ≤1.35dB | ≤1.35 | ≤1.5 |
| Axial ratio 2 port Rx (dB) | ≤1.35dB | ≤1.35 | ≤1.5 |
| Axial ratio 4 port Tx (dB) | ≤0.7 | ≤0.75 | ≤1 |
| Axial ratio 4 port Rx (dB) | ≤0.7 | ≤0.75 | ≤1 |
| Feed Insertion Loss Tx (dB) | ≤0.5dB | ≤0.5 | ≤0.6 |
| Feed Insertion Loss Rx (dB) | ≤0.3 | ≤0.3 | ≤0.5dB |
| Antenna Noise Temperature 10°Elevation (K) Rx | 53 | 63 | 127 |
| Antenna Noise Temperature 20°Elevation (K) Rx | 47 | 52 | 88 |
| Antenna Noise Temperature 50°Elevation (K) Rx | 43 | 45 | 62 |
| Isolation Rx to Tx | CPR-137G | WR-75 | WR-28 |
| Isolation Tx to Rx | CPR-229G | WR-75 | WR-42 |
| Power Capacity (Tx) | 2KW | 2KW | 1KW |
| CPI (On Axis, linear) | 3dB | 3dB | 3dB |
| Radiation Pattern Compliancy | Compliant with MIL-STD-188-164A, ITU - RS-580 and ITU-RS-465-6 | ||
| Surface accuracy | ≤0.5mm | ≤0.5mm | ≤0.3mm |
| MECHANICAL SPECIFICATIONS | Azimuth | Elevation | Polarization |
| Antenna travel range | ±70°(limited motion), 0°~355° continuous(full motion) | 10°~90° | ±90° |
| Antenna Travels | ± 200° | 10°~90° | ± 90° |
| ENVIRONMENTAL SPECIFICATIONS | |||
| Temperature Range | -30～50℃ | ||
| Wind Speed Operational | 72km/h | ||
| Wind Speed Survival | 216km/h | ||
| Humidity | 100% | ||
| Ice Load Operational | Icing 13mm | ||
| Ice Load Survival | Icing 25mm | ||
| Seismic capacity | Horizontal: 0.3G; vertical: 0.1G | ||
