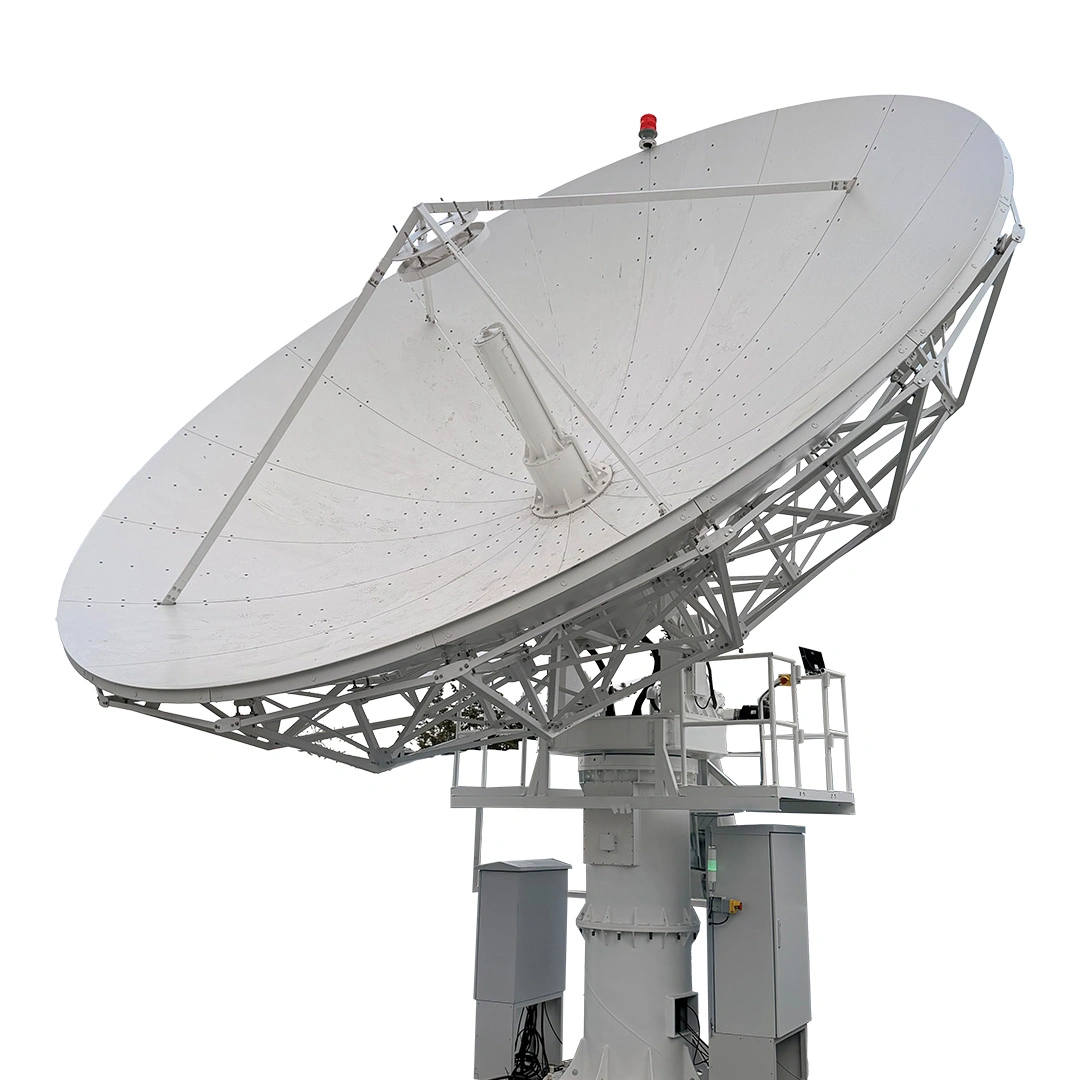

The PALS PFMA-620 is a high-performance, servo-controlled auto-pointing antenna system for critical satellite communications. It excels in TT&C (Telemetry, Tracking & Command), TX/RX, and RX-only applications across C, X, Ku, and Ka frequency bands.
Engineered for precision, its robust construction with formed panels and a machined hub ensures high gain and excellent radiation patterns. The system provides exceptional pointing flexibility with continuous 360-degree azimuth rotation and 85-degree elevation for full horizon-to-horizon satellite tracking.
Ideal for a wide range of uses—including TV distribution (DTH/SNG), data networks, emergency response, and mobile deployments—it delivers reliable connectivity for both fixed and on-the-move operations. Integrated with the reliable PALS Antenna Controller for fast, stable satellite acquisition, the PFMA-620 is supported by a complete suite of accessories for turnkey solutions, including servo/power systems, BUCs, LNBs, modems, and installation kits.
- vailable in C, X, KU, DBS and KA Bands
- Servo Motor System (AZ, EL, POL Axes)
- Entirely zero-backlash motion control system
- Structure type: A+E type, A+E-T type, X-Y type
- IP65 weatherproof outdoor housing Motor Driver Unit (MDU)
- Uplink Power Control System for constant signal quality
- 1+1 or 2+1 Redundancy of full transmit chain(s)
- High quality equipment integrated providing high reliability
- Hand-held control unit OPTIONAL
- Program Tracking (TLE)OPTIONAL
- Waveguide switching for LNB/LNAOPTIONAL
- Equipment ShelterOPTIONAL
- Beacon TrackingOPTIONAL
- De-Ice Systen OPTIONAL
- Inclined Orbit TrackingOPTIONAL
- PALS NMS SystemOPTIONAL
| GENERAL SPECIFICATIONS | PFMA-620 | ||
| Reflector Diameter | 6.2m, Ring Focus | ||
| Antenna Package | 5 packages, 3590kg | ||
| RF CHARACTERISTIC | Low Ku-Band | Ku-Band | Ka-Band |
| Frequency (GHz) Tx | 10.7~11.7 | 13.75~14.5 | 27.5 ~ 31 |
| Frequency (GHz) Rx | 3.7~4.2 | 10.7~12.75 | 17.7 ~ 21.2 |
| Antenna Gain (dBi) Tx | 55.0@ 11.2GHz | [email protected] | [email protected] |
| Antenna Gain (dBi) Rx | [email protected] | [email protected] | [email protected] |
| Axial Ratio (2 Port) (2 Part Feed) Tx/Rx | - | - | ≤1.5 dB |
| Axial Ratio (2 Port) (2 Part Feed) Rx/Rx | - | - | ≤1 dB |
| Cross Pol (On Axis) | ≥30dB | ≥30dB | - |
| Polarization | Linear | Linear | Circular |
| Antenna Noise Temperature (K) | 10° Elevation | 20° Elevation | 40° Elevation |
| 62.5 | 62.5 | 126 | |
| 51.3 | 51.3 | 87.5 | |
| 44.5 | 44.5 | 61.8 | |
| VSWR Tx | 1.3:1 | 1.3:1 | 1.35:1 |
| VSWR Rx | 1.3:1 | 1.3:1 | 1.35:1 |
| Rx to Tx Isolation (dB) | 85 | 85 | 85 |
| Feed Insertion Loss Tx (dB) | ≤0.3 | ≤0.3 | ≤0.5 |
| Feed Insertion Loss Rx (dB) | ≤0.4 | ≤0.4 | ≤0.6 |
| Power Capability Tx (kW) | 2 | 2 | 2 |
| Antenna Pattern Compliancy | ITU-R S.580-6 & ITU-R S465-6 | ||
| Feed Interface Tx/Rx | WR-75 | WR-75 | WR42/WR28 |
| MECHANICAL SPECIFICATIONS | Azimuth | Elevation | Polarization |
| Antenna Travel Range | +70°Pedestal/5°~355°continuous | 5°~90° | =90° |
| Antenna Structure | LMC/FMC | ||
| Surface Accuracy(R.M.S) | ≤0.5mm: ≤0.3mm(Kа) | ||
