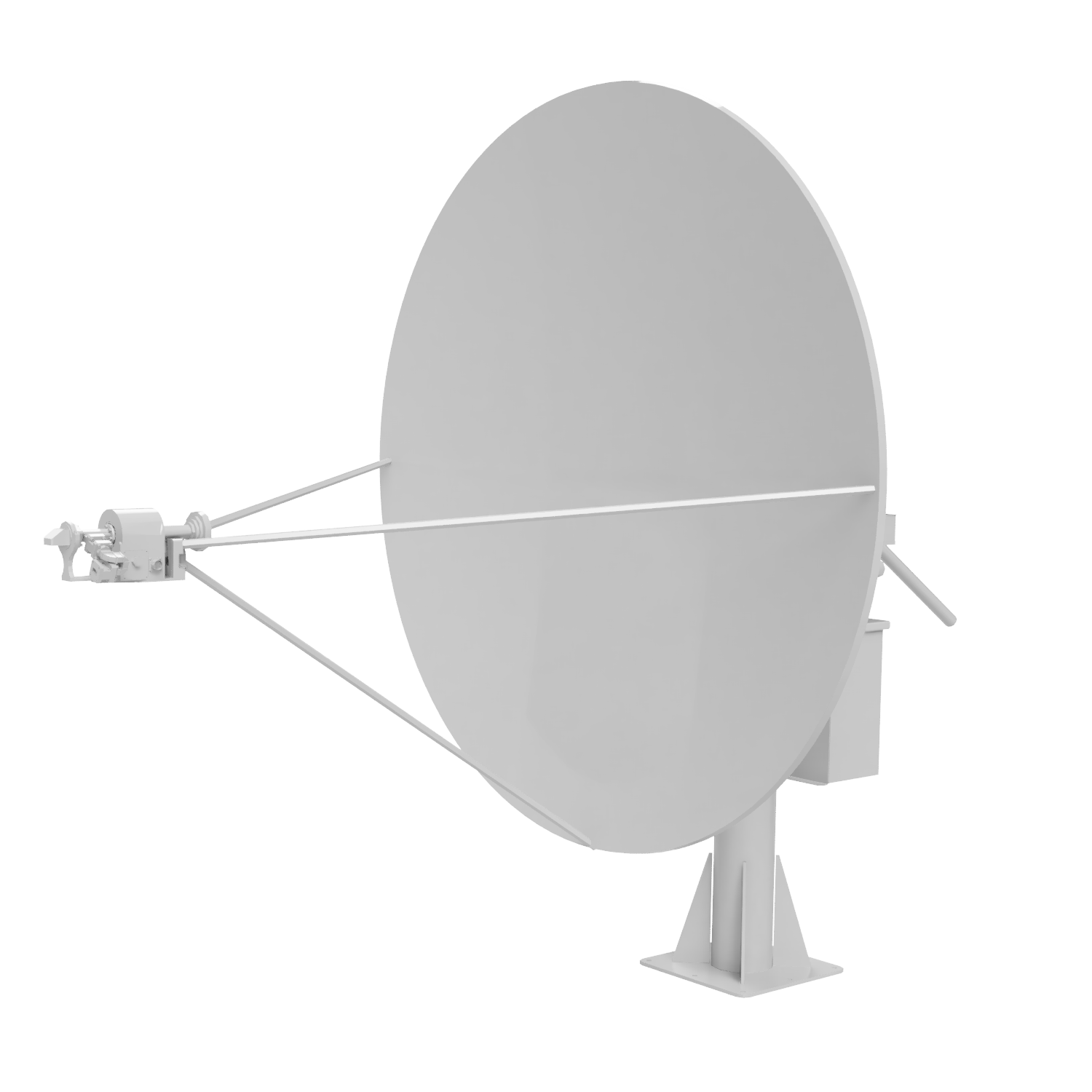

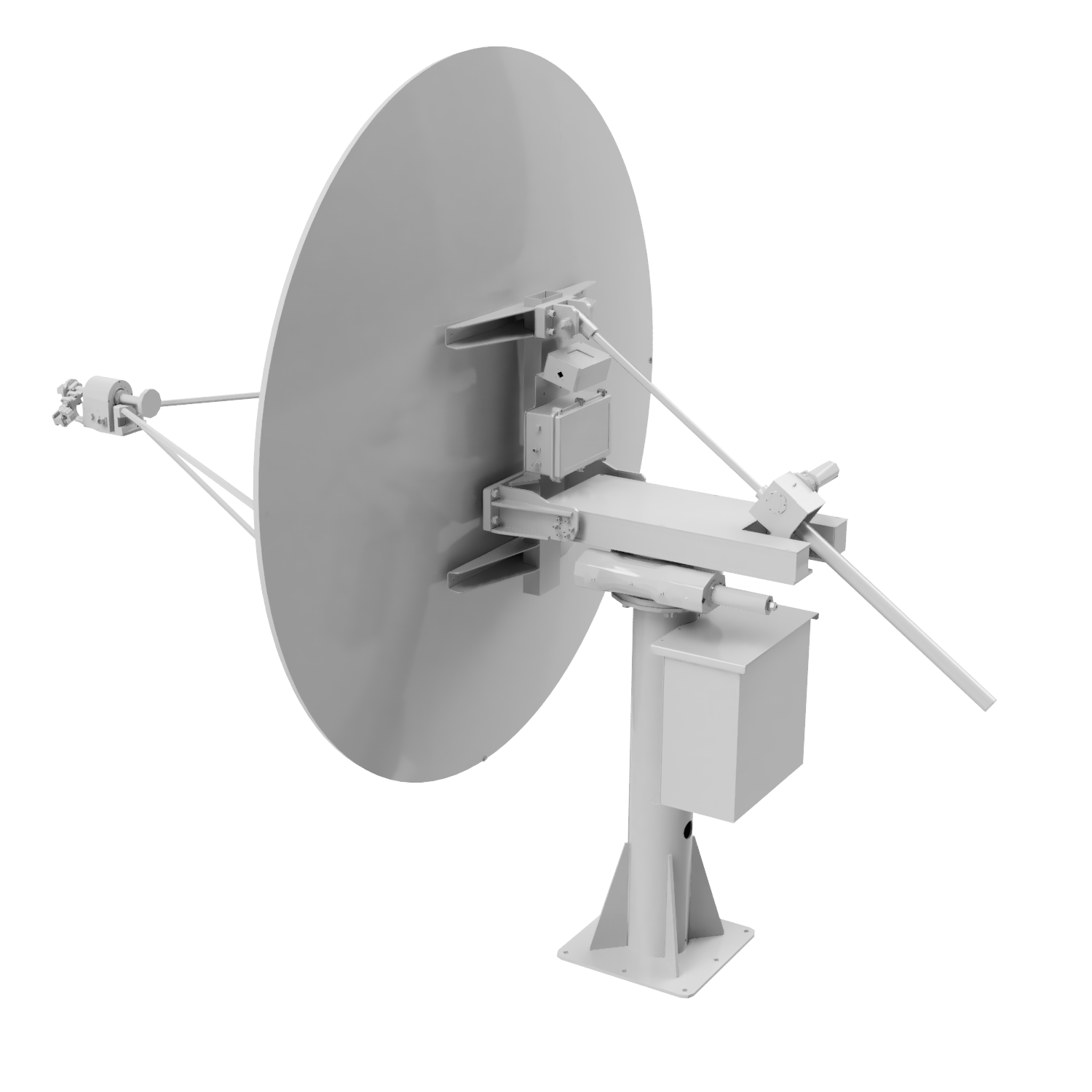

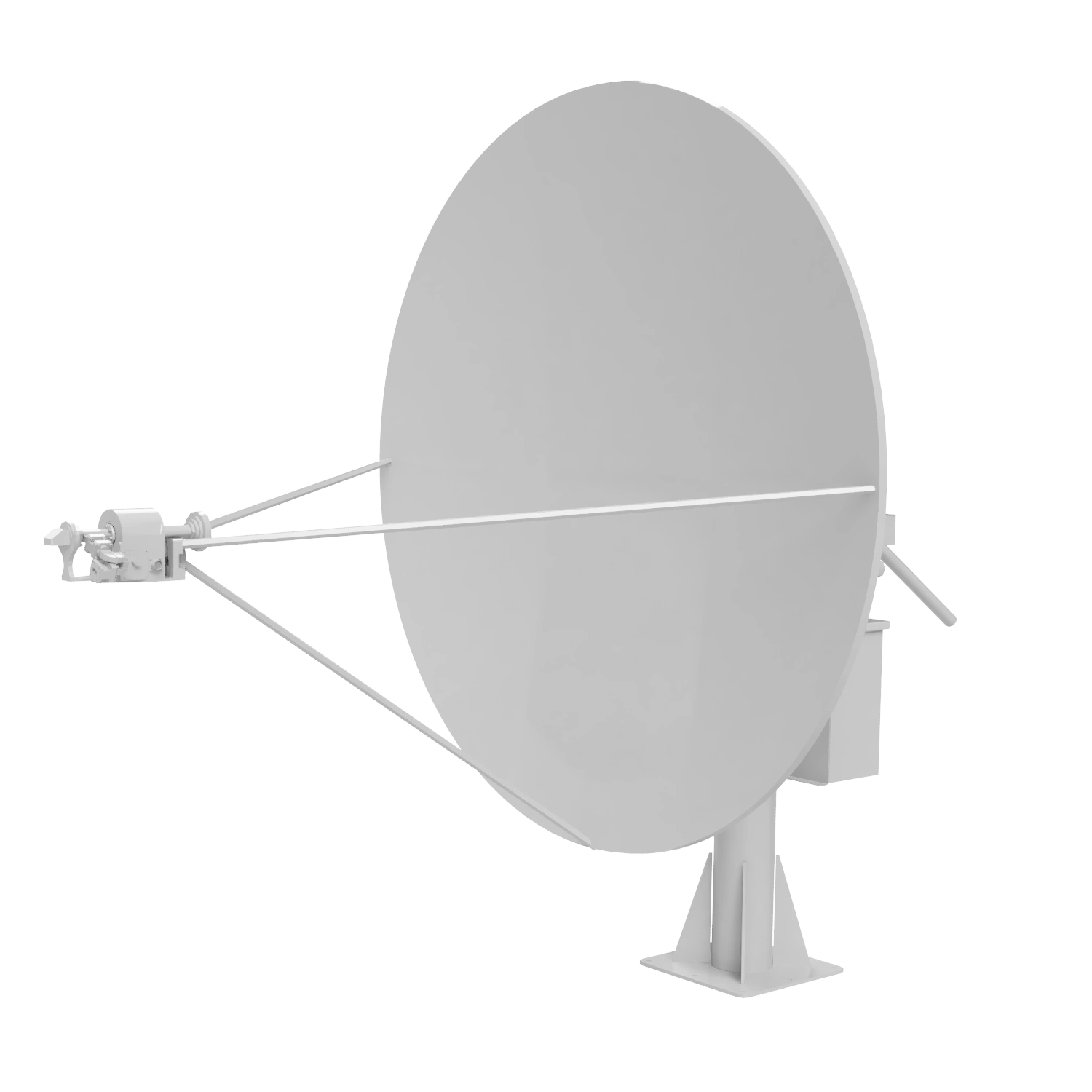

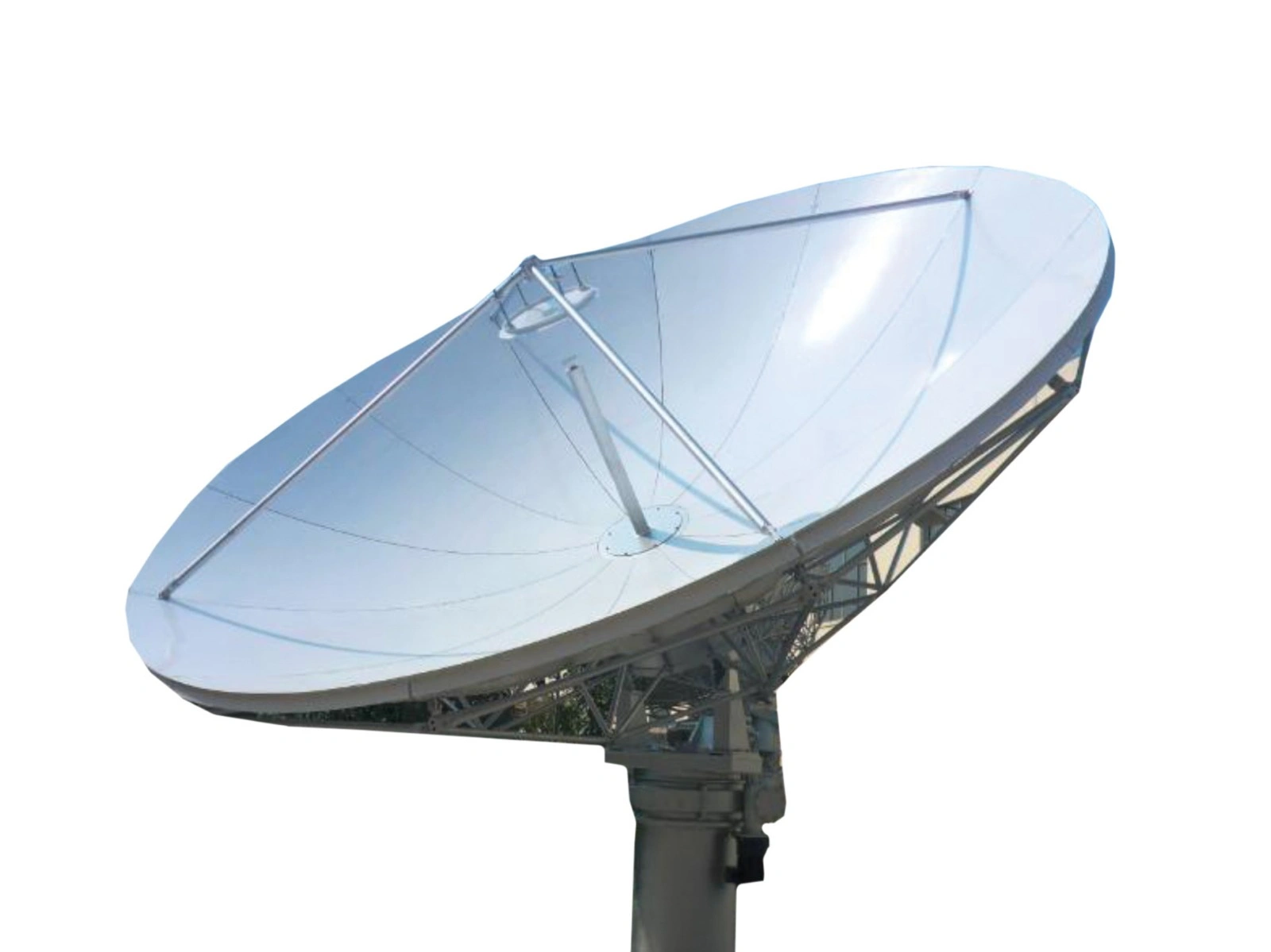

PALS PFMA series antennas are self-pointing / auto-acquire fixed motorised systems. They deliver exceptional performance for transmit/receive and receive-only applications in different bands. Design of the offset reflector incorporates precision-formed panels, contoured radials and a machined hub assembly. PFMA Series features 240° degrees of azimuth coverage and 60° degrees of elevation point range. This large range of adjustment provides the ability to view geostationary satellites, horizon to horizon, from any location on the Earth. High gain and closely controlled pattern characteristics.
The PALS new generation Antenna Controller offers the latest technology, with its state-of-the-art design and brings a new method to antenna control. Simplified user interface and very easy connectivity provide very healthy control over the antenna and therefore flawless operation for SNG broadcasting.
- 0,01° pointing accuracy with resolvers at 3 axes
- Servo motors azimuth and elevation drivers
- Entirely zero-backlash mechanical drive system
- 125 km/h operational, 200 km/h survival wind load
- Ethernet interface and supports SNMP ver. 2.0c for M&C
- Inclined orbit tracking
- IP65 weatherproof outdoor housing for ACU
- Optional Feed Stabilization Kit
- Optional Beacon Tracking
- Low power consumption optional De-Ice system
- Optional hand-held control unit
- MIL-STD-810G Compliant
- MIL-STD-1472 Compliant
- MIL-STD-188-164A Compliant
- ITU-RS-580 Compliant
- ITU-RS-465-6 Compliant
- EUTELSAT Compliant
| GENERAL SPECIFICATIONS | PFMA-380 | ||
| Reflector Diameter | 2.4m | ||
| Reflector Material | Glass Fiber Reinforced Polyester SMC | ||
| Antenna Optics | Offset Prime Focus | ||
| RF CHARACTERISTIC | C-Band | X-Band | Ku-Band |
| Frequency (GHz) Tx | 5.845 ~ 6.425 | 5.85~6.72 | 13.75 ~14.5 |
| Frequency (GHz) Rx | 3.625 ~ 4.20 | 3.7~4.2 | 10.70 ~ 12.75 |
| Antenna Gain (±0.2 dBi) Tx | 46.30 | 47.2 | 53.0 |
| Antenna Gain (±0.2 dBi) Rx | 41.80 | 43.8 | 51.2 |
| Cross Pol. Isolation - On Axis (within 1.0 dB Beamwidth) Tx | 17.70 | 18.80 | 35.00 |
| Cross Pol. Isolation - On Axis (within 1.0 dB Beamwidth) Rx | 15.00 | 23.20 | 25.00 |
| Antenna Noise Temperature (K) 5° Elevation | 62 | 60 | 70 |
| Antenna Noise Temperature (K) ° 10 Elevation | 52 | 51 | 60 |
| Antenna Noise Temperature (K) ° 20 Elevation | 45 | 47 | 55 |
| Antenna Noise Temperature (K) ° 40 Elevation | 43 | 47 | 45 |
| VSWR Tx | 1.3:1 | 1.25:1 | 1.3:1 |
| Power Capability Tx | 1kW | 2kW | 1kW |
| Feed Interface Tx | CPR-137 | WR-112 | WR-75 |
| Feed Interface Rx | CPR-229 | WR-112 | WR-75 |
| MECHANICAL SPECIFICATIONS | Azimuth | Elevation | |
| Antenna Motion Range | ± 110° | 5~90° | |
| Antenna Speed | 0.025 ~ 1°/S | 0.025 ~ 0.4°/S | |
| Power Supply | AC110~230V 50/60Hz | ||
| Motor | DC Motor | ||
| ENVIRONMENTAL SPECIFICATIONS | |||
| Temperature Range Operational | -15°C +50°C | ||
| Temperature Range Survival | -40°C +60°C | ||
| Wind Speed Operational | 72 km/h to 97km/h | ||
| Wind Speed Survival | 200 km/h | ||
| Relative Humidity | 0% to 98% | ||
