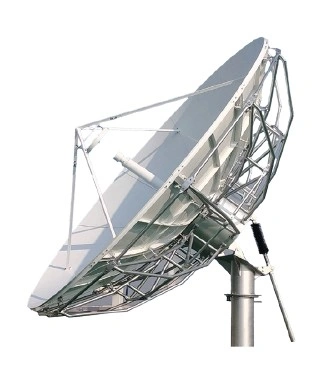

Engineered for demanding applications requiring precise tracking and complex geometries, the PFMA-370 integrates seamlessly with the PAC-700 Antenna Controller. This powerful combination delivers reliable operation in dynamic environments, ensuring accurate positioning and robust performance for critical missions.
The PFMA-370 features precision-formed reflector panels, contoured radials, and a machined hub assembly. This robust construction provides high gain and tightly controlled radiation patterns, guaranteeing superior signal integrity and worldwide operational reliability.
Unmatched pointing flexibility comes standard: 240° azimuth coverage and 60° elevation range enable seamless horizon-to-horizon tracking of geostationary satellites from any field location. Whether you need multiband performance, rugged durability, or broad coverage, the PFMA‑370 with PAC‑700 sets a new standard for tactical antenna systems.
- C, X, Ku and Ka Bands available
- Servo motors azimuth and elevation drivers
- Entirely zero-backlash mechanical drive system
- Structure type: A+E type, A+E-T type, X-Y type
- Ethernet interface and supports SNMP ver. 2.0c for M&C
- Inclined orbit tracking
- Feed Stabilization KitOPTIONAL
- Beacon TrackingOPTIONAL
- De-Ice systemOPTIONAL
| RF CHARACTERISTIC | C-Band | Ku-Band | Ka-Band |
| Frequency (GHz) Tx | 5.845 ~ 6.725 | 13.75 ~14.5 | 29.20 ~ 31.00 |
| Frequency (GHz) Rx | 3.4 ~ 4.20 | 10.95 ~ 12.75 | 19.40 ~ 21.20 |
| Antenna Gain (±0.2 dBi) Tx | [email protected] GHz | 52.81@ 14.00GHz | 59.14@ 29.00 GHz |
| Antenna Gain (±0.2 dBi) Rx | 41.49 @3.8 GHz | 51.83@ 12.5 GHz | 55.46@ 19.05 GHz |
| Axial Ratio (2 Port) Tx/Rx | ≤1.3 dB | ≤1.3 dB | ≤1.5 dB |
| Cross Pol (On Axis) | <35dB | <35dB | <35dB |
| Polarization | Circular/Linear | Linear | Linear/Circular |
| Antenna Noise Temperature (K) ° 10 Elevation | 51.6K | 62K | 125.5K |
| Antenna Noise Temperature (K) ° 20 Elevation | 45.6K | 50.8K | 87K |
| Antenna Noise Temperature (K) ° 40 Elevation | 41.6K | 44K | 61K |
| VSWR Tx | 1.25:1 | 1.3:1 | 1.35:1 |
| VSWR Rx | 1.25:1 | 1.3:1 | 1.35:1 |
| Rx to Tx Isolation | 85dB | 85dB | 85dB |
| Feed Insertion Loss Tx | ≤0.3dB | ≤0.3dB | ≤0.5dB |
| Feed Insertion Loss Rx | ≤0.4dB | ≤0.4dB | ≤0.6dB |
| Power Capability Tx | 5kW | 2kW | 2kW |
| Feed Interface Tx | CPR-229G | WR-75 | WR42 |
| Feed Interface Rx | CPR-137G | WR-75 | WR28 |
