PFA-240

  • Brands:
  • Product Code:
  • Stock:
  • Pals
  • PFA-240
  • In Stock

Overview

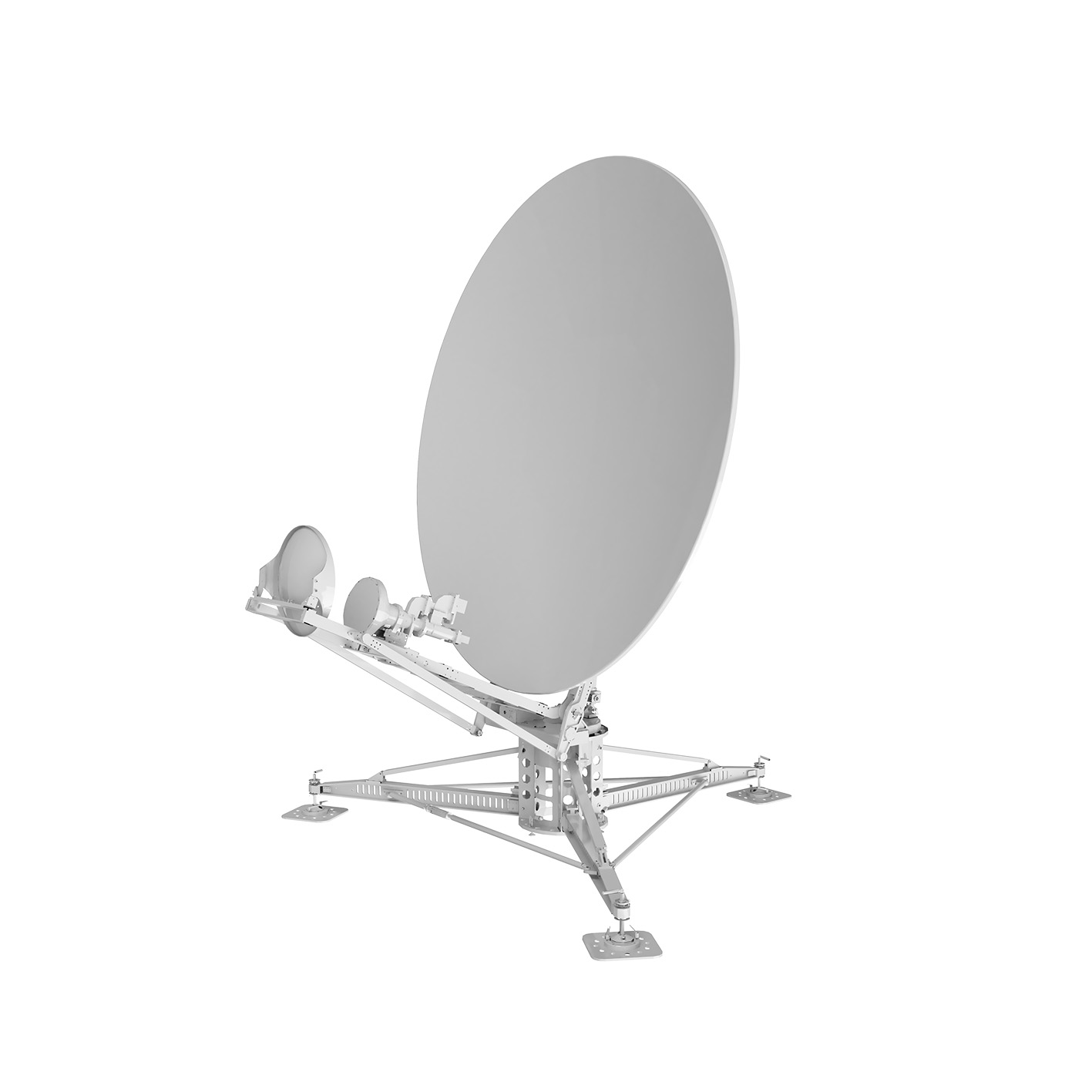

Whether you operate in Ku, Ka, X or C band, the PFA-240 could be easily configured to provide instant satellite communications for any application that requires reliable and / or remote connectivity in a rugged environment. It ensures reliable transmission for any applications such as corporate networks, millitary and emergency communications, etc...

It can be easily transported with IATA weight compliant flight cases so it can be transport by a commercial airline to wherever you need.

The PFA-240 with light weight, robust 9 segmented Carbon-Fiber main reflector folding feed-arm, fixed sub-reflector faciliates easy and fast installation. Two operators can achieve the installation within 12 minutes without any training and tools requiring.


Download Catalogue

GENERAL SPECIFICATIONS

  • Reflector Diameter
  • 2.4m
  • Reflector Type
  • Offset
  • Setup Time
  • ~12 Minutes
  • Antenna Concept
  • Dual focus antenna with 9 segmented 2.4m main reflector, folding feed-arm, fixed sub-reflector
  • Number of Cases
  • 7 Cases
  • Antenna Travels
  • AZ * 360 EL * 0 to 85 POL * -90 to 90

Key Features

• X, C, Ku, Ka and DBS Band options available
• Dual offset Carbon-Fiber 9 pieces segmented reflector
• Aluminium alloy tripod support legs
• 80 km/h operational, 100 km/h survival windload with ballasts
• High resistance for rugged environmental conditions
• Less than 12 minutes ready to operation with two people
• Easy acquisition without any training and tools
• Fast and high-quality transmission at anywhere
• Optional motorization kit
• Optional De-Ice

Compatibility

• MIL-STD-810G Compliant
• MIL-STD-1472 Compliant
• MIL-STD-188-164A Compliant
• ITU-RS-580 Compliant
• ITU-RS-465-6 Compliant
• EUTELSAT Compliant

RF CHARACTERISTIC

  • Frequency (GHz) Ku-Band Tx
  • 13.75 - 14.50
  • Frequency (GHz) Ku-Band Rx
  • 10.70 - 12.75
  • Frequency (GHz) Ka-Band Tx
  • 17.7 - 21.2
  • Frequency (GHz) Ka-Band Rx
  • 27.5 - 31
  • Frequency (GHz) C-Band Tx
  • 5.850 - 6.725
  • Frequency (GHz) C-Band Rx
  • 3.40 - 4.20
  • Frequency (GHz) X-Band Tx
  • 7.9 - 8.4
  • Frequency (GHz) X-Band Rx
  • 7.25 - 7.75
  • Antenna Gain Ku-Band Tx
  • 48.8 (Midband)
  • Antenna Gain Ku-Band Rx
  • 47.3 (Midband)
  • Antenna Gain Ka-Band Tx
  • 51.7+20log(f/29.25)
  • Antenna Gai Ka-Band Rx
  • 48.2+20log(f/19.45)
  • Antenna Gain C-Band Tx
  • 41.7 (Midband)
  • Antenna Gain C-Band Rx
  • 37.4 (Midband)
  • Antenna Gain X-Band Tx
  • 44.0+20log(f/8.25)
  • Antenna Gain X-Band Rx
  • 43.3+20log(f/7.5)
  • Polarization Ku-Band
  • Linear
  • Polarization Ka-Band
  • Circular
  • Polarization C-Band
  • Linear / Circular
  • Polarization X-Band
  • Circular
  • TX/RX Isolation
  • 85 dB
  • Satellite Operator Compliancy
  • Compliant with most of satellite operator requirements
  • VSWR
  • 1.3
  • Cross Polar Rejection
  • >35 dB within 1 dB beamwidth
  • Side Lobe
  • -14 dB (First Side Lobe)

Key Features

• X, C, Ku, Ka and DBS Band options available
• Dual offset Carbon-Fiber 9 pieces segmented reflector
• Aluminium alloy tripod support legs
• 80 km/h operational, 100 km/h survival windload with ballasts
• High resistance for rugged environmental conditions
• Less than 12 minutes ready to operation with two people
• Easy acquisition without any training and tools
• Fast and high-quality transmission at anywhere
• Optional motorization kit
• Optional De-Ice

Compatibility

• MIL-STD-810G Compliant
• MIL-STD-1472 Compliant
• MIL-STD-188-164A Compliant
• ITU-RS-580 Compliant
• ITU-RS-465-6 Compliant
• EUTELSAT Compliant

ENVIRONMENTAL SPECIFICATIONS

  • Temperature
  • Compliant with MIL-STD-810g Method 501.5 and 502.5
  • Wind Sped
  • Compliant with ESOG-120
  • Rain
  • Compliant with MIL-STD-810g Method 506.5
  • Humidity
  • Compliant with MIL-STD-810g Method 507.5
  • Solar Radiation
  • Compliant with MIL-STD-810g Method 505.5
  • Low Pressure
  • Compliant with MIL-STD-810g Method 500.5
  • Shock
  • Compliant with MIL-STD-810g Method 516.5
  • Sand and Dust
  • Compliant with MIL-STD-810g Method 510.5
  • Tempreture Shock
  • Compliant with MIL-STD-810g Method 503.5
  • Icing
  • Compliant with MIL-STD-810g Method 521.3
  • Acoustics
  • Compliant with MIL-STD-1472

Key Features

• X, C, Ku, Ka and DBS Band options available
• Dual offset Carbon-Fiber 9 pieces segmented reflector
• Aluminium alloy tripod support legs
• 80 km/h operational, 100 km/h survival windload with ballasts
• High resistance for rugged environmental conditions
• Less than 12 minutes ready to operation with two people
• Easy acquisition without any training and tools
• Fast and high-quality transmission at anywhere
• Optional motorization kit
• Optional De-Ice

Compatibility

• MIL-STD-810G Compliant
• MIL-STD-1472 Compliant
• MIL-STD-188-164A Compliant
• ITU-RS-580 Compliant
• ITU-RS-465-6 Compliant
• EUTELSAT Compliant
