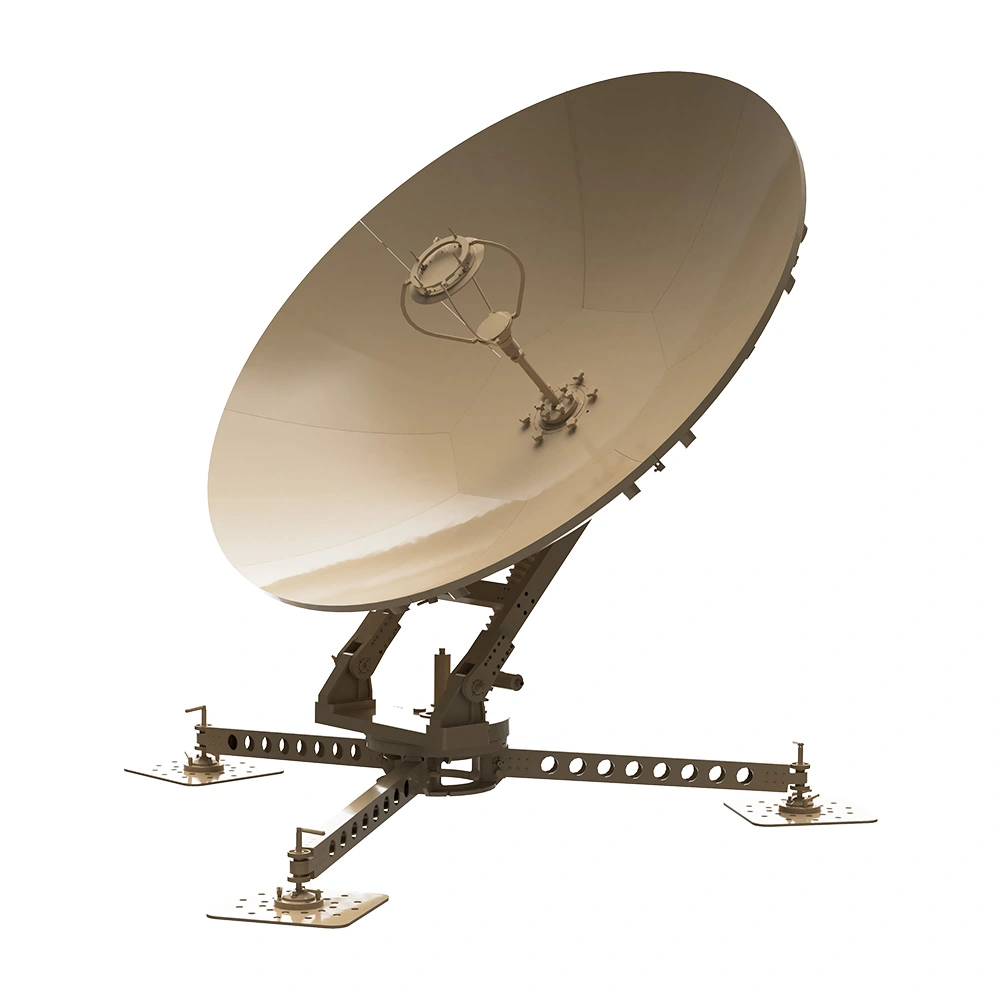

The PFA-200 is a premier, compact fly-away antenna system engineered for rapid deployment and unwavering reliability in mission-critical situations. It combines robust performance with exceptional portability, featuring a 2.10-meter segmented carbon fiber reflector designed for both strength and light weight.
This versatile terminal supports X, Ku, and Ka frequency bands with quick-change feed assemblies, making it the ideal solution for demanding broadcast, tactical communications, emergency response, and mobile network backhaul applications.
Speed and simplicity define its operation. Two operators can assemble the system and be on-air in under 5 minutes—no tools required. Packaged in rugged, IATA-compliant transit cases, it is ready for immediate global transport via commercial airlines. With integrated rapid satellite acquisition technology, the PFA-200 ensures fast setup and superior signal clarity. It is the definitive choice for establishing secure, high-performance satellite communications anywhere on Earth, at a moment's notice.
- C, X, Ku, Ka Band options are available
- Dual offset Carbon-Fiber 9 pieces segmented reflector
- Interchangable Feeds
- Manual & Auto Versions Available
- Easy acquisition without any training and tools
- Fast and high-quality transmission at anytime and anywhere.
- LTE / 5G supported modem for load balancing and bonding solutionsOPTIONAL
- Less than 5 minutes ready to operation with two person
- High resistance for toughest weather conditions (wind, rain, sun...)
- Aluminium alloy tripod support legs
- De-IceOPTIONAL
- DVB / Beacon Tracking OPTIONAL
| GENERAL SPECIFICATIONS | PFA-200 | |||
| Reflector Diameter | 2.0m | |||
| Reflector Type | Dual Offset | |||
| Reflector Material | Carbon-Fiber | |||
| Feed Typе | Dual Offset | |||
| Antenna Concept | Portable, Segmented | |||
| RF CHARACTERISTIC | X-Band | Ku-Band | Ka-Band | |
| Frequency (GHz) Tx | 7.9 ~ 8.4 | 13.75 ~ 14.50 | 27.5 ~ 31.0 | |
| Frequency (GHz) Rx | 7.25 ~ 7.75 | 10.7 ~ 12.75 | 17.7 ~ 21.2 | |
| Antenna Gain (±0.2 dBi) Tx | 42.7 | 47.7 | 53.8 | |
| Antenna Gain (±0.2 dBi) Rx | 42.1 | 46.5 | 50.3 | |
| Polarization | Circular | Linear | Circular | |
| CPI (On Axis, linear) | ≥35 dB | |||
| Tx/Rx Isolation | 85dB | |||
| VSWR Tx | ≤1.3 | ≤1.3 | ≤1.4 | |
| VSWR Rx | ≤1.3 | ≤1.35 | ≤1.4 | |
| Antenna Pattern Compliancy | ITU-R S.580-6 & ITU-R S.465-6 | |||
| RF Power Capacity | Up to 10OW | |||
| MECHANICAL SPECIFICATIONS | Azimuth | Elevation | Polarisation Tx | Polarisation Rx |
| Antenna Motion Range | ±200° | 0~90° | 0~90° LHCP (X & Ka) | RHСР (X & Ka) |
| ENVIRONMENTAL SPECIFICATIONS | ||||
| Temperature Range Operational | -40°C~+60°C | |||
| Temperature Range Survival | -55°C~+70°C | |||
| Wind Speed Operational | 80 km/h (balance weight&anchors) | |||
| Wind Speed Survival | 97 km/h (balance weight&anchors) | |||
| Relative Humidity | 0-100% | |||
| Rainfall | Operational:5cm/h Survival:10cm/h | |||
| Solar Radiation | 1000 Kcal/h/m2 | |||
| Radial Ice Survival | 12.7 mm | |||
