NJS8452 Full C-band LNA

C-Band, Full LNA, NJS8452 Series

PALS

C-Band, Full LNA, NJS8452 Series

Nishinbo's NJS8452 is a low noise amplifier for use on Full C-band of RF Frequency 3.4 to 4.2 GHz, with an weatherized enclosure.

TECHNICAL SPECIFICATIONS

Items	Parameters
RF Input Interface	Waveguide, CPR229 (with Groove)
IF Output Interface	Coax. Connector, N-type Female (50 Ω)
RF Frequency	3.4 to 4.2 GHz
Linear Gain	55 dB typ., 48 dB min. @ +25 ℃
Noise Temperature(NT)	15 K typ., 30 K max. @ +25 ℃
Input Power Voltage Requirement	+24 VDC (+12 to +28 VDC)
Current Consumption	125 mA typ., 160 mA max.
Operating Temperature Range	-40 to +60 ℃
Waterproof / Dustproof (IP-code)	IP67
Weight	800 g
Dimensions	(L) 80.8 x (W) 99.6 x (H) 76 mm (w/o Interfaces & Screws)

ALL SPECIFICATION ON DOWNLOAD PDF

CONTACT A SALES REPRESENTATIVE FOR "C-Band, Full LNA, NJS8452 Series"

[email protected]

+90 216 540 72 57

[email protected]

LNA/LNB PRODUCTS

C Band LNB 3.40-4.80 GHz 1 Band

C Band LNB 3.40-4.80 GHz 1 BandThe product is designed to enable wide coverage of the C-band spectrum.

C-Band, Full Band PLL LNB - Int. Ref., Flange-type, NJS8496 series

C-Band, Full Band PLL LNB - Int. Ref., Flange-type, NJS8496 series NJS8496 is a low noise block downconverter for use on Full C-band of RF Frequency 3.4 to 4.2 GHz, with PLL oscillator synchronized to a highly stable internal reference signal.

X LNB 7.25-7.75 GHz 1 Band | Gen 2

X LNB 7.25-7.75 GHz 1 Band | Gen 2SMW's new X-Band products (7.25-8.50 GHz) feature a future-proof modular platform, including fixed LO models and a new switchable 2-band version for flexible full-band coverage.

X LNB 7.25-7.75 GHz 1 Band | Internal reference

X LNB 7.25-7.75 GHz 1 Band | Internal referenceThe Swedish Microwave X-Band LNB operates in the 7.25–7.75 GHz frequency range, delivering reliable performance for satellite communication systems.

X LNB 7.75-8.50 GHz 1 Band | Gen 2

X LNB 7.75-8.50 GHz 1 Band | Gen 2Swedish Microwave's 2nd Gen X-Band LNB delivers superior performance with enhanced phase noise, VSWR, and thermal stability for reliable satellite and radar applications.

X LNB 7.75-8.50 GHz 1 Band | Internal reference

X LNB 7.75-8.50 GHz 1 Band | Internal referenceX-Band PLL LNB optimized for DVB-S2X applications. Features low phase noise, very low input VSWR (eliminating external isolators), and fixed 60 dB gain. Available with internal/external reference and optional CPR 112G adapter.

X LNB 7.90-8.50 GHz 1 Band | Gen 2

X LNB 7.90-8.50 GHz 1 Band | Gen 2The SMW Gen 2 X LNB (7.90-8.50 GHz) delivers advanced performance with upgraded phase noise, VSWR, and thermal stability.

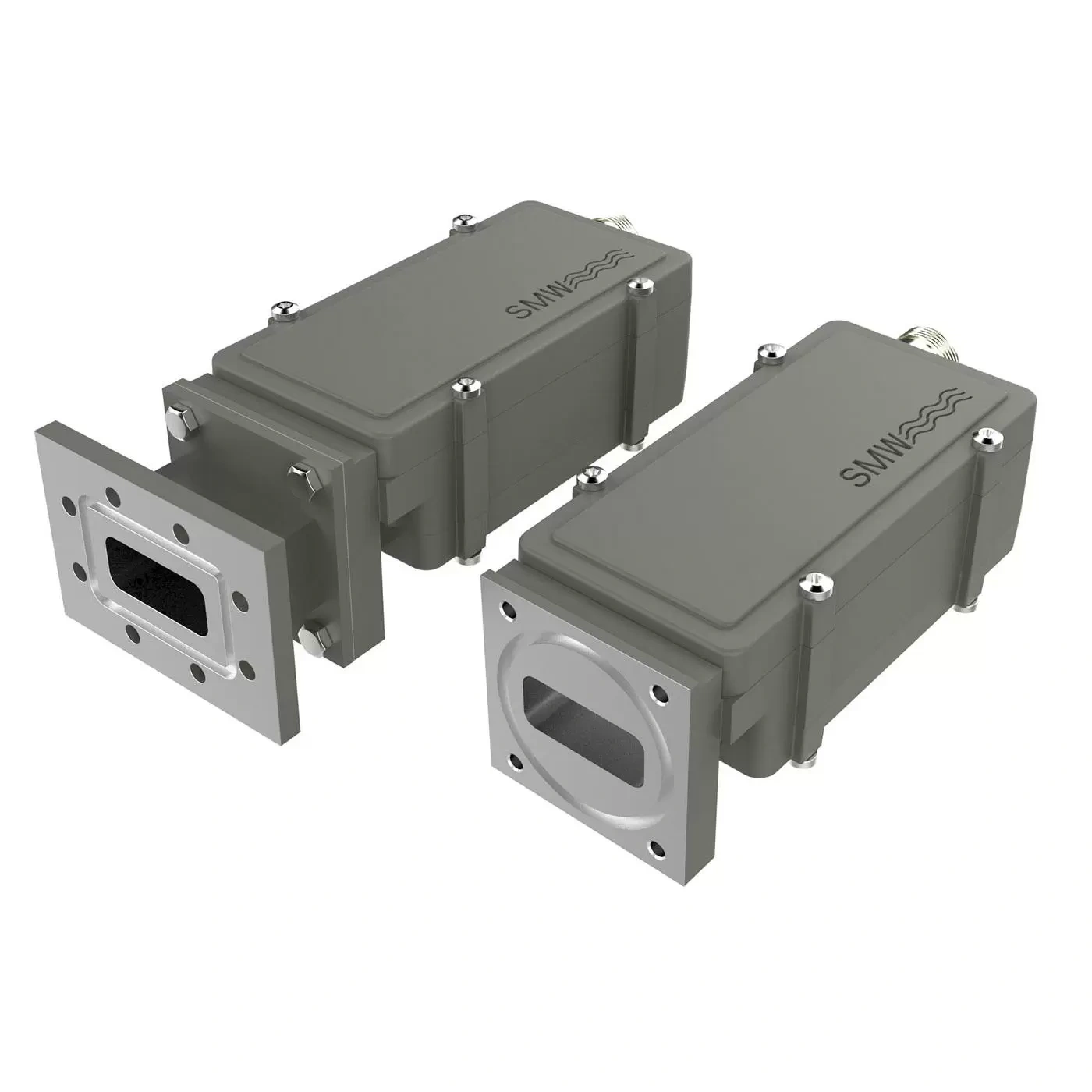

X LNB 7.90-8.50 GHz 1 Band | Internal reference

X LNB 7.90-8.50 GHz 1 Band | Internal referenceThe X LNB 7.90-8.50 GHz SATCOM TLT is a professional PLL-based unit designed for DVB-S2X applications. It delivers low phase noise, ultra-low VSWR with options for internal/external reference and a CPR 112G adapter.

Ku-Band, Universal , 2LO PLL LNB - Mechanical Switch, NJR2841 Series

Ku-Band, Universal , 2LO PLL LNB - Mechanical Switch, NJR2841 Series NJR2841 is a low noise block downconverter for use on Universal Ku-band of RF Frequency 10.7 to 12.75 GHz, with switchable PLL oscillator by mechanical switch.

Ku-band, Universal, 2LO PLL LNB - 22kHz Tone On/Off, NJR2842 series

Ku-band, Universal, 2LO PLL LNB - 22kHz Tone On/Off, NJR2842 series NJR2842 is a low noise block downconverter for use on Universal Ku-band of RF Frequency 10.7 to 12.75 GHz, with switchable PLL oscillator by 22kHz tone signal on/off.

Ku-Band, Universal 2LO PLL LNB - Input Voltage (High/Low), NJR2843 series

Ku-Band, Universal 2LO PLL LNB - Input Voltage (High/Low), NJR2843 series NJR2843 is a low noise block downconverter for use on Universal Ku-band of RF Frequency 10.7 to 12.75 GHz, with switchable PLL oscillator by Input Voltage High/Low.

Ku LNA 10.70-12.75 GHz

Ku LNA 10.70-12.75 GHzThe SMW Ku LNA amplifies Ku-Band signals (10.70-12.75 GHz) for satellite systems. It works with a single or dual BDC and features 1-2 SMA outputs plus a separate DC power connector.

Ka LNB 17.30-22.30 GHz 1 Band

Ka LNB 17.30-22.30 GHz 1 BandThe Swedish Microwave Ka-Band LNB is a well proven product with high reliability. For reception of a single LO band within 17.30-22.30 GHz.

Ka Band LNB 17.30-22.30 GHz 2 Band

Ka Band LNB 17.30-22.30 GHz 2 BandThe Ka-Band 2-Band LNBs are the choice for reception of one sub band in the Ka Receive band 17.30 to 22.30 GHz.

Ka Band LNB 17.30-22.30 GHz 3-8 Band

Ka Band LNB 17.30-22.30 GHz 3-8 BandThe Swedish Microwave Ka-Band LNB is a well proven product with high reliability. For switching between 3 to 8 LO bands within 17.30-22.30 GHz.

Ka Band LNB 17.70-20.20 GHz SES O3b mPower 3 Band

Ka Band LNB 17.70-20.20 GHz SES O3b mPower 3 BandThe Ka-band 3-Band PLL LNB is certifed by SES O3b mPOWER for use within the frequency range of 17.70 to 20.20 GHz. Band switching via Voltage/tone (13/18V/22 kHz).

Ka LNA 17.30-22.30 GHz Dual output

Ka LNA 17.30-22.30 GHz Dual outputThe SMW Ka LNA is a low-noise amplifier for the 17.30-22.30 GHz band. It is designed for use with a single, dual, triple, or quad BDC system and features two RF SMA outputs and a separate DC power connector.

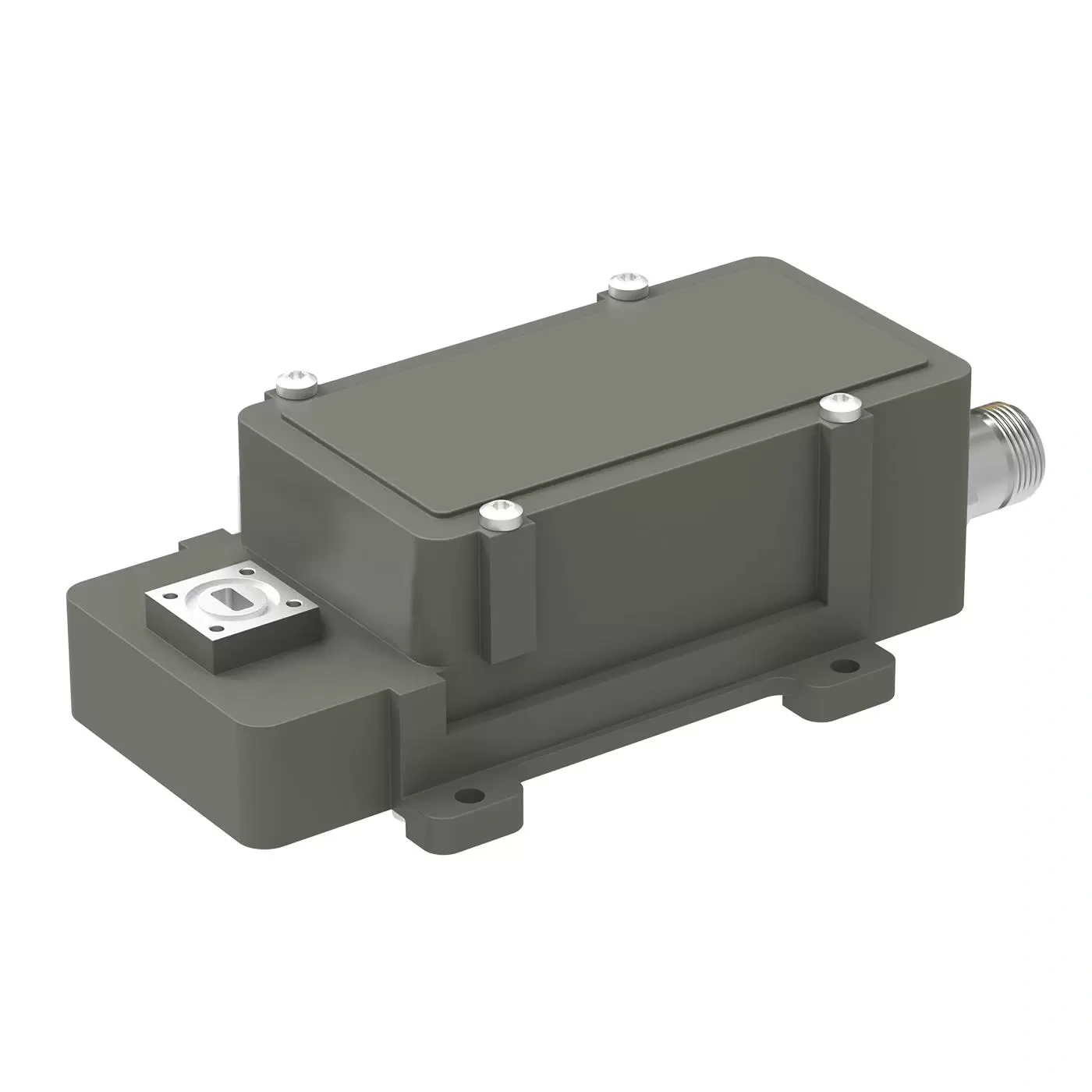

Q LNB 37.50-42.50 GHz 1 Band
