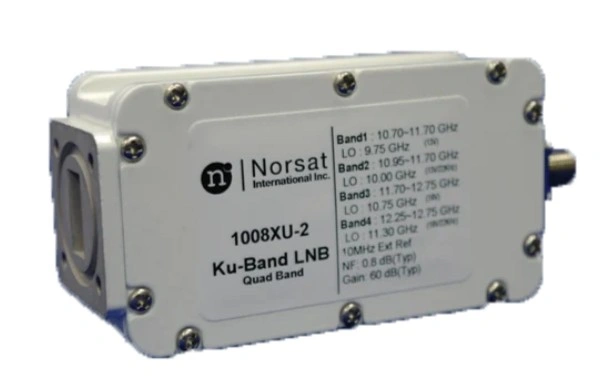

1008XUN - Ku-Band Quad

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 1000XU Series.

TECHNICAL SPECIFICATIONS

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	10.70 - 11.70 GHz
input frequency band 2	10.95 - 11.70 GHz
input frequency band 3	11.70 - 12.75 GHz
input frequency band 4	12.25 - 12.75 GHz
LO frequency 1	9.75 GHz
LO frequency 2	10.00 GHz
LO frequency 3	10.75 GHz
LO frequency 4	11.30 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.0 dB
noise figure typ	0.8 dB
number of onboard LOs	Quad-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1700 MHz
output frequency band 3	950 - 2000 MHz
output frequency band 4	950 - 1450 MHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	13V / 22kHz Tone
control signal 3	18V / No Tone
control signal 4	18V / 22kHz Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 100kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	350 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	950 - 1950 MHz
RF input connector	WR-75 waveguide grooved (waterproof)

M and C SPECIFICATIONS
led indicators	None

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40°C to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	128 mm
product weight	0.4 kg
product width	60 mm

ALL SPECIFICATION ON DOWNLOAD PDF
