Ka Band LNB 17.30-22.30 GHz 2 Band

The Ka-Band 2-Band LNBs are the choice for reception of one subband in the Ka Receive band 17.30 to 22.30 GHz. SMW also offers Single band and 3 to 8 Multi-LO/sub-band switchable models, Ka Transmit band monitoring LNBs/BDCs/TLTs and LNA+BDCs systems for up to full Ka-Band simultaneous reception, with the same excellent performance and useful features. Options include the daisy-chainable SMW M&C interface (RS-485/Modbus RTU), Sum alarm output, Customizable LOs, IF range up to 2150 MHz, Enclosure with additional fixing point and Waveguide input isolator for exceptional input matching

LNA/LNB KEY FEATURES

Auto Switch between External or Internal reference
High P1dB and IP3
Excellent Phase noise meets all profiles of DVB-S2X
Customized LO as optionOPTIONAL
Wide operating temperature range
Alarm and Monitoring & Control as optionOPTIONAL

CONTACT A SALES REPRESENTATIVE FOR "Ka Band LNB 17.30-22.30 GHz 2 Band"

[email protected]

+90 216 540 72 57

[email protected]

LNA/LNB PRODUCTS

C Band LNB 3.40-4.80 GHz 1 Band

C Band LNB 3.40-4.80 GHz 1 BandThe product is designed to enable wide coverage of the C-band spectrum.

C-Band, Full Band PLL LNB - Int. Ref., Flange-type, NJS8496 series

C-Band, Full Band PLL LNB - Int. Ref., Flange-type, NJS8496 series NJS8496 is a low noise block downconverter for use on Full C-band of RF Frequency 3.4 to 4.2 GHz, with PLL oscillator synchronized to a highly stable internal reference signal.

C-Band, Full LNA, NJS8452 Series

C-Band, Full LNA, NJS8452 SeriesNJS8452 is a low noise amplifier for use on Full C-band of RF Frequency 3.4 to 4.2 GHz, with an weatherized enclosure.

X LNB 7.25-7.75 GHz 1 Band | Gen 2

X LNB 7.25-7.75 GHz 1 Band | Gen 2SMW's new X-Band products (7.25-8.50 GHz) feature a future-proof modular platform, including fixed LO models and a new switchable 2-band version for flexible full-band coverage.

X LNB 7.25-7.75 GHz 1 Band | Internal reference

X LNB 7.25-7.75 GHz 1 Band | Internal referenceThe Swedish Microwave X-Band LNB operates in the 7.25–7.75 GHz frequency range, delivering reliable performance for satellite communication systems.

X LNB 7.75-8.50 GHz 1 Band | Gen 2

X LNB 7.75-8.50 GHz 1 Band | Gen 2Swedish Microwave's 2nd Gen X-Band LNB delivers superior performance with enhanced phase noise, VSWR, and thermal stability for reliable satellite and radar applications.

X LNB 7.75-8.50 GHz 1 Band | Internal reference

X LNB 7.75-8.50 GHz 1 Band | Internal referenceX-Band PLL LNB optimized for DVB-S2X applications. Features low phase noise, very low input VSWR (eliminating external isolators), and fixed 60 dB gain. Available with internal/external reference and optional CPR 112G adapter.

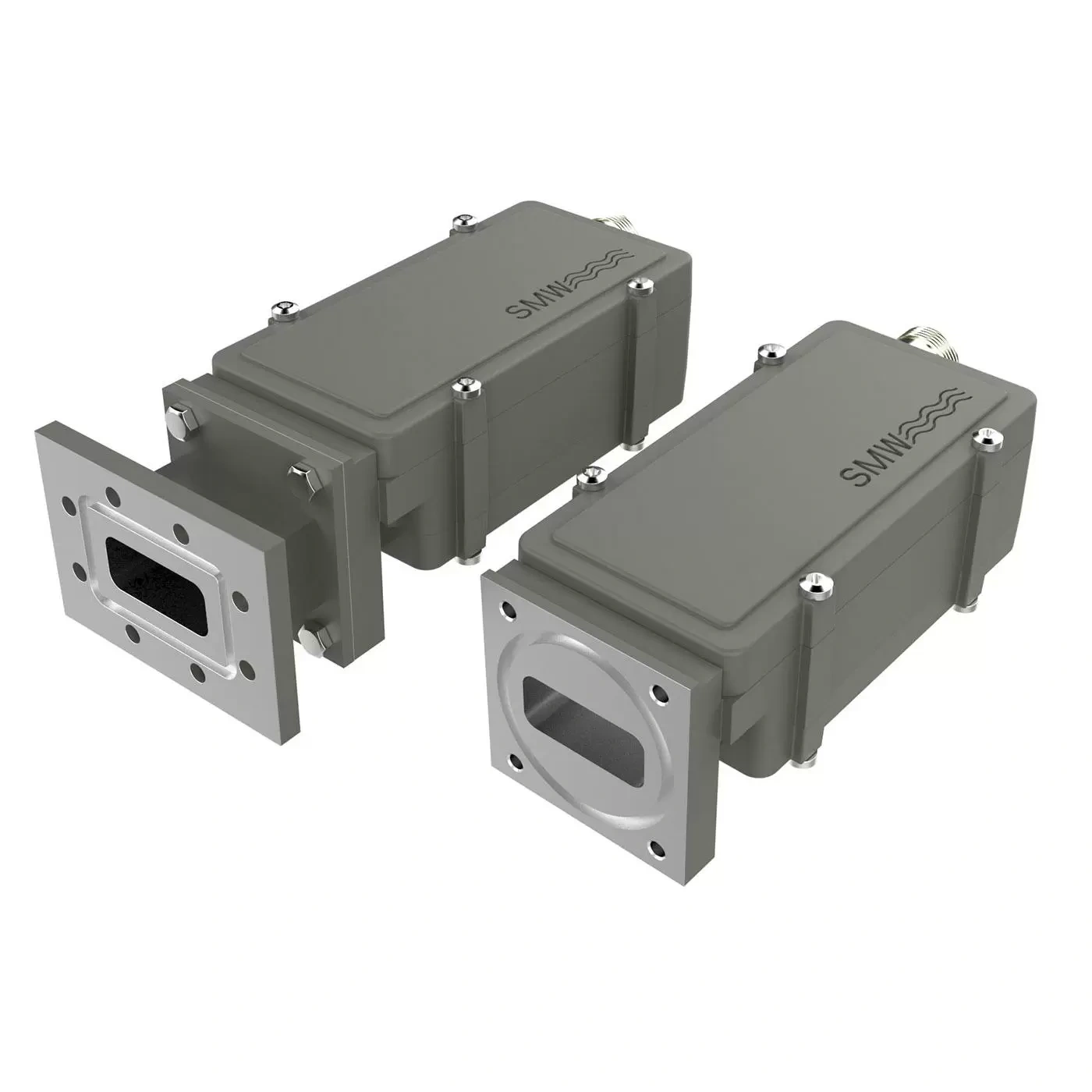

X LNB 7.90-8.50 GHz 1 Band | Gen 2
