Overview

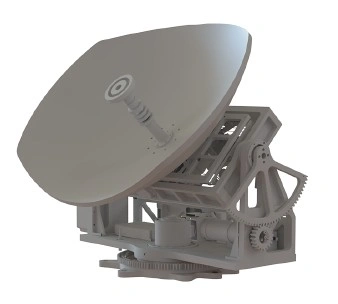

PALS Satellite antenna solutions are not limited to fixed ones. You could keep communicating while you drive. Don't mind the terrain just keep move on and go live. PALS designed Satcom On the Move Antenna solution on its extensive experience in antenna design. POMA-45 provides high bandwidth, and it can continuously track the satellite and maintain communication. it offers high-performance satellite connectivity even while your vehicle is on the move. Continuous, reliable, and secure vehicular satellite connection on land is now possible. Light-weight POMA-45 is practical and also suitable for rugged terrain. it tracks the satellite in real-time with high accuracy.
POMA-45 is perfect for mobile emergency communications, police, homeland security, governmental organizations, search and rescue teams, newsgathering, private security, and many other on-the-move real-time video, voice, and data applications.
Download Catalogue
GENERAL SPECIFICATIONS
- Reflector Diameter
- 0.45m
- POL Mode
- Ku Band: Linear / Ka Band: Circular
- Pointing Satellite Mode
- Auto + Manual
- Controller
- 19 inch lU Controller
- Motion Range
- EL 0°- 90° AZ: 360 ° rotation without limit POL: ± 90°
- Drive Rate
- AZ 60° /s EL 60° /s POL 40° /s
- Angular Acceleration
- AZ: 200° / s², EL: 200° / s²
Key Features
• Available in Ku-Band
• Communication in all terrains and weather conditions
• Reliable high data rate
• Light-weight and compact design
• Advanced tracking system
• Military version is available
• Accurate Satellite tracking
RF CHARACTERISTIC
- Frequency (GHz} Ku Band
- TX:13.75 - 14.5 / RX 10.7 - 12.75
- Gain Ku-Band
- TX 2: 33.5 + 201g (f/14) dBi / RX 2: 32.4 + 201g (f/12.5) dBi
- Frequency (GHz} Ka-Band
- TX:27.50 - 31.0GHz / RX 17.7 - 21.2GHz
- Gain Ka-Band
- TX 2: 39.8 + 201g (f/29.4) dBi / RX 2: 36.2 + 201g (f/19.6) dBi
- Port lsolation
- 86 dB
- VSWR
- ≤ 1.50
- Cross-Polar lsolation
- 30dB
- 1st Sidelobe Ka-Band
- ≤ -13.2dB
- 1st Sidelobe
- ≤ -14.5dB
- Dynamic Switching Satellite Time
- 5s
- Power Capacity
- 100w
- Radome lnsertion
- 0.27dB
- Tracking Accuracy
- 0.17dB
- Out of Lock Rate
- 0.01%
Key Features
• Available in Ku-Band
• Communication in all terrains and weather conditions
• Reliable high data rate
• Light-weight and compact design
• Advanced tracking system
• Military version is available
• Accurate Satellite tracking
Compatibility
ENVIRONMENTAL SPECIFICATIONS
- Operation Temperature
- -40 ~ +60°C
- Storage Temperature
- -50 ~ +70°C
- Operation Wind Load
- 76km/h
- Storage Wind Load
- 126km/h
- Humidity
- 95% (20°C)
- Protection
- IP65
Key Features
• Available in Ku-Band
• Communication in all terrains and weather conditions
• Reliable high data rate
• Light-weight and compact design
• Advanced tracking system
• Military version is available
• Accurate Satellite tracking
