- Brands:
- Product Code:
- Stock:
- PALS
- PFA-240-MIL
- In Stock
Overview
Whether you operate in C, X, KU, Ka Band, the PFA-240 could be easily configured to provide instant satellite communications for any application that requires reliable and/or remote connectivity in a rugged environment. it ensures reliable transmission for any applications such as broadcast, corporate networks, military and emergency communications, ete ...
it can be easily transported with IATA weight-compliant flight cases so it can be transported by a commercial airline to wherever you need it.

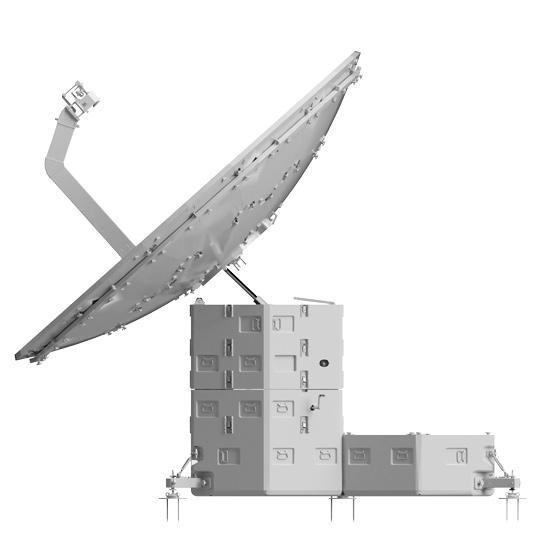

The PFA-240 with its lightweight but robust 10-segmented Carbon-Fiber main reflector facilitates easy and fast deployment. Two operators can achieve the installation within 15 minutes without any training and tools required.
Download Catalogue
GENERAL SPECIFICATIONS
- Reflector Diameter
- 2.4m
- Reflector Type
- Circular, axially symmetric with 10 carbon-fiber panels, prime focus feed
- Operation On-Air Time
- ~ 5 Minutes after Set-Up
- Antenna Concept
- Portable design with pedestal, trailer, tactical, tripod, mobile mounts
- Drive Rates
- AZ: 0.3° /s , EL: 0.5° /s , POL: 0.5° /s
- Antenna Travels
- AZ: ± 180° . , EL: 0° to 90°, POL: ± 90°
- Manual Override Mechanism
- Manual override for elevation and azimuth drive system
- Mount Type
- Elevation over Azimuth
- Operational Limits
- Hardware and software settable
Key Features
• Multi-Band feeds changed in minutes
• Multiple mount options (mobile, pedestal, tactical, and tripod mounts)
• C, X, Ku, Ka Band options are available
• 10 reflector panels (carbon-fiber)
• Motorized or non-motorized versions
• 2 transport cases (standard)
• lnstallation within 15 minutes
• Designed to comply with Mil-Spec standards
• lntegrated DVB-S/S2 & Beacon Receiver
• Optional De-lce
• Manual drive tool kit for emergency situations
• High gain, low side-lobe, high accuracy and very good cross polar- rejection (> 35 dB)
• Supports OpenAmip
Compatibility
MIL-STD-810G Compliant
• MIL-STD-461F Compliant
• MIL-STD-1472 Compliant
• MIL-STD-188-164A Compliant
• ITU-RS-580 Compliant
• ITU-RS-465-6 Compliant
• EUTELSAT Compliant
RF CHARACTERISTIC
- Ku-Band Frequency (GHz) Tx
- 13.75 - 14.50 GHz
- Ku-Band Frequency (GHz) Rx
- 10.70 - 12.75 GHz
- Ku-Band Antenna Gain (±0.2 dBi) Tx
- 49.2 dBi@ Midband
- Ku-Band Antenna Gain (±0.2 dBi) Rx
- 47.4 dBi @Midband
- Polarization
- Linear
- Feed lnsertion Loss
- Tx 0.8 dB / Rx 0.3 dB
- Waveguide lnterface
- WR -75
- VSWR
- 1.3:1
- Cross-Polar lsolation
- 35 dB
- G/T
- 28.5 dB/K
- C-Band Frequency (GHz) Tx
- 5.850-6.425 GHz
- C-Band Frequency (GHz) Rx
- 3.625-4.200 GHz
- X-Band Frequency (GHz) Tx
- 7.90-8.40 GHz
- X-Band Frequency (GHz) Rx
- 7.25-7.75 GHz
- Ka-Band Frequency (GHz) Tx
- 27.50-31.00 GHz
- Ka-Band Frequency (GHz) Rx
- 17.70-21.20 GHz
- C-Band Gain Tx
- 41.9 @6.00GHz
- C-Band Gain Rx
- 37.6 @4.00GHz
- X-Band Gain Tx
- 44.4 @8.15GHz
- X-Band Gain Rx
- 43.5 @7.50GHz
- Ka-Band Gain Tx
- 55.2 @30.00GHz
- Ka-Band Gain Rx
- 52.3 @20.00GHz
Key Features
• Multi-Band feeds changed in minutes
• Multiple mount options (mobile, pedestal, tactical, and tripod mounts)
• C, X, Ku, Ka Band options are available
• 10 reflector panels (carbon-fiber)
• Motorized or non-motorized versions
• 2 transport cases (standard)
• lnstallation within 15 minutes
• Designed to comply with Mil-Spec standards
• lntegrated DVB-S/S2 & Beacon Receiver
• Optional De-lce
• Manual drive tool kit for emergency situations
• High gain, low side-lobe, high accuracy and very good cross polar- rejection (> 35 dB)
• Supports OpenAmip
Compatibility
MIL-STD-810G Compliant
• MIL-STD-461F Compliant
• MIL-STD-1472 Compliant
• MIL-STD-188-164A Compliant
• ITU-RS-580 Compliant
• ITU-RS-465-6 Compliant
• EUTELSAT Compliant
ENVIRONMENTAL SPECIFICATIONS
- Temperature
- Operational -30°C to 60°C / Survival -40°C to 70°C
- Wind Speed
- Operational: 60 km/h (optional 72 km/h with pedestal mount), Survival: 120 km/h (optional 150 km/h with pedestal mount)
- Humidity (Relative)
- 0-100%
- Altitude
- 4000 m
