  • PDA - 120-MIL
  • In Stock

Overview

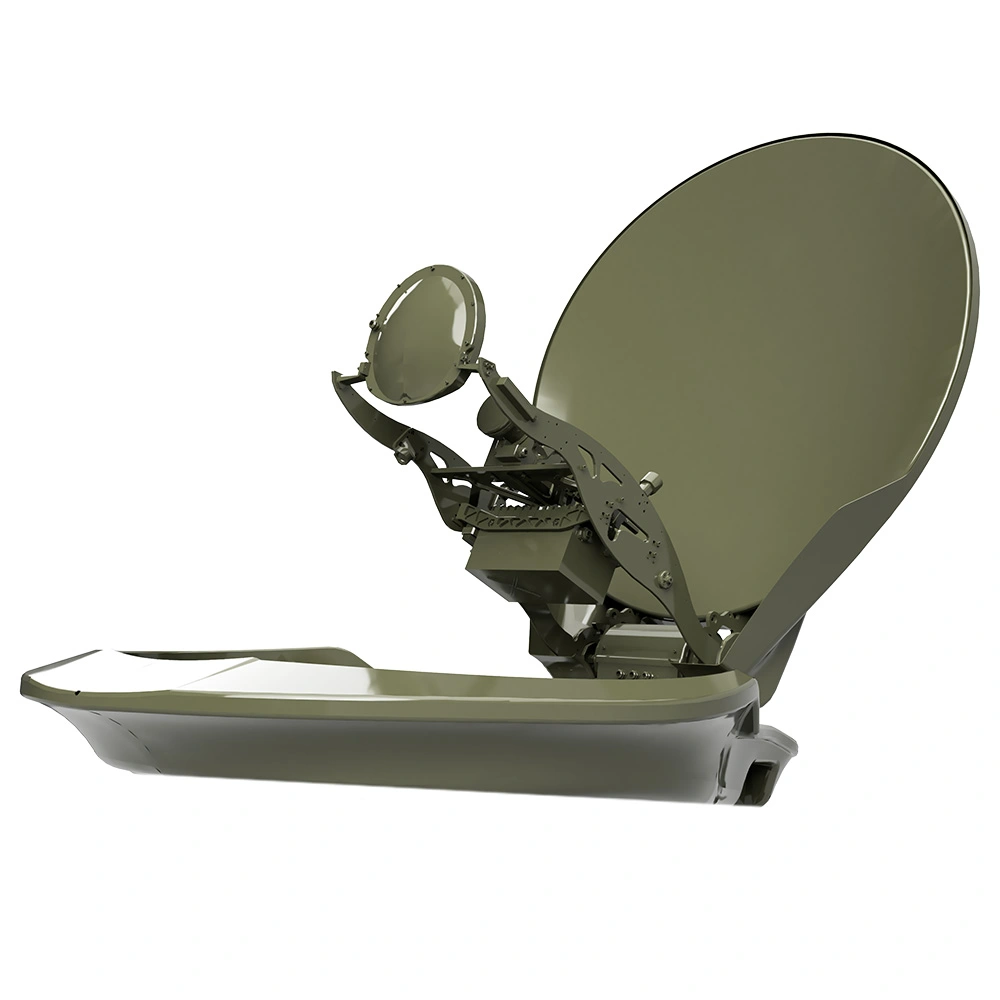

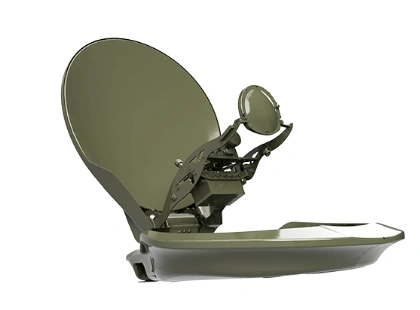

The PDA-120MIL is a compact and sophisticated design for Military Communications. Aerodynamic design of PDA-120MIL provides wind load resistance due to its highly durable zero backlash elevation over azimuth and polarisation motorised chassis.

PALS offers auto-acquisition satellite tracking with Beacon reciever. It's possible to operate with minimal training by "One Touch" feature. The extreme ease and acquisition speed will guarantee that you will not loose the connection, even in rugged environmental conditions.

The PDA-120MIL Drive-Away Antenna’s precision, accurate reflector surface and dual optic design provides remarkably low sidelobes and excellent cross-polar performance. It has a three axes positioner which provides full antenna rotation and entirely backlash-free drive system. High precision pointing via resolver, boosted with 16 bit chip sets.


Download Catalogue

GENERAL SPECIFICATIONS

  • Reflector Diameter
  • 1.2m
  • Reflector Type
  • Gregorian Offset
  • Operation On-Air Time
  • ~3 Minutes
  • Antenna Concept
  • Gregorian dual offset antenna with 1.2m elliptical main reflector, folding feed-arm, fixed sub-reflector
  • Drive Rates
  • AZIMUTH Slow: 0.4°/sec, Medium: 2.5°/sec, Fast: 4.5°/sec — ELEVATION Slow: 0.1°/sec, Medium: 1.5°/sec, Fast: 3.0°/sec POLARIZATION Slow: 0.4°/sec, Medium: 1.9°/sec, Fast: 3.42°/sec
  • Antenna Travels
  • AZ: ±220°, EL: up to 90°, POL: ±115°
  • Manual Override Mechanism
  • Manual override for elevation and azimuth drive system

Key Features

• X, Ku, Ka and DBS Band options are available
• Strong yet lightweight Carbon-Fiber design which rigorously tested to operate in the toughest environments (wind, rain, sun...)
• High capacity of gain, low loss and state-of-art antenna signal acquisition
• 0,01° pointing accuracy with resolvers at 3 axes
• Fully motorized driving mechanism with zero backlash gear system
• Dual offset (dual optic) elliptical antenna and feed system
• Low power consumption De-Ice system
• Supports SNMP ver. 2.0c for M&C
• Beacon Tracking
• Manual drive tool kit for emergency situations
• Optional hand-held control unit

Compatibility

• MIL-STD-810G (Environmental Conditions)
• MIL-STD-461F (EMI-EMC)
• MIL-STD-1472 (Accoustic)
• MIL-STD-188-164A (RF)
• ITU-RS-580 (RF)
• ITU-RS-465-6 (RF)
• EUTELSAT

RF CHARACTERISTIC

  • Frequency (GHz) Ku-Band Tx
  • 13.75 - 14.50
  • Frequency (GHz) Ku-Band Rx
  • 10.70 - 12.75
  • Frequency (GHz) Ka-Band Tx
  • 17.7 - 21.2
  • Frequency (GHz) Ka-Band Rx
  • 27.5 - 31
  • Frequency (GHz) X-Band Tx
  • 7.9 - 8.4
  • Frequency (GHz) X-Band Rx
  • 7.25 - 7.75
  • Antenna Gain Ku-Band Tx
  • 43,0 (Midband)
  • Antenna Gain Ku-Band Rx
  • 41.8 (Midband)
  • Antenna Gain Ka-Band Tx
  • 48.7+20log(f/29.25)
  • Antenna Gai Ka-Band Rx
  • 45.3+20log(f/19.45)
  • Antenna Gain X-Band Tx
  • 38.0+20log(f/8.25)
  • Antenna Gain X-Band Rx
  • 37.4+20log(f/7.5)
  • Polarization Ku-Band
  • 2 Port Linear (3 Port Optional)
  • Polarization Ka-Band
  • Circular
  • Polarization X-Band
  • Circular
  • TX/RX Isolation
  • 85 dB
  • Satellite Operator Compliancy
  • Compliant with most of satellite operator requirements
  • VSWR
  • 1.3
  • Cross Polar Rejection
  • >35 dB within 1 dB beamwidth
  • Side Lobe
  • -14 dB (First Side Lobe)

Key Features

• X, Ku, Ka and DBS Band options are available
• Strong yet lightweight Carbon-Fiber design which rigorously tested to operate in the toughest environments (wind, rain, sun...)
• High capacity of gain, low loss and state-of-art antenna signal acquisition
• 0,01° pointing accuracy with resolvers at 3 axes
• Fully motorized driving mechanism with zero backlash gear system
• Dual offset (dual optic) elliptical antenna and feed system
• Low power consumption De-Ice system
• Supports SNMP ver. 2.0c for M&C
• Beacon Tracking
• Manual drive tool kit for emergency situations
• Optional hand-held control unit

Compatibility

• MIL-STD-810G (Environmental Conditions)
• MIL-STD-461F (EMI-EMC)
• MIL-STD-1472 (Accoustic)
• MIL-STD-188-164A (RF)
• ITU-RS-580 (RF)
• ITU-RS-465-6 (RF)
• EUTELSAT

ENVIRONMENTAL SPECIFICATIONS

  • Temperature
  • Compliant with MIL-STD-810g Method 501.5 and 502.5 — Operational: -30°C to 55°C, Survival: -40°C to 70°C
  • Wind Speed
  • Compliant with ESOG-120 — Operational: 72 km/h, Survival: 180 km/h
  • Rain
  • Compliant with MIL-STD-810g Method 506.5 — Survival in heavy rainstorm
  • Humidity
  • Compliant with MIL-STD-810g Method 507.5 — %95 Aggravated
  • Solar Radiation
  • Compliant with MIL-STD-810g Method 505.5 — 1120 W/m2 (A1 Cycle)
  • Low Pressure
  • Compliant with MIL-STD-810g Method 500.5 — 4500 mt
  • Shock
  • Compliant with MIL-STD-810g Method 516.5
  • Sand and Dust
  • Compliant with MIL-STD-810g Method 510.5
  • Tempreture Shock
  • Compliant with MIL-STD-810g Method 503.5 — -40/70 Cyclic
  • Icing
  • Compliant with MIL-STD-810g Method 521.3 — Min 37 mm Survival
  • Acoustics
  • Compliant with MIL-STD-1472 — <65 db(A) from 1.5 mt
  • Electromagnetic Compability
  • Compliant with CE102, CS101, CS114, CS115, CS116, RE102, RS103
