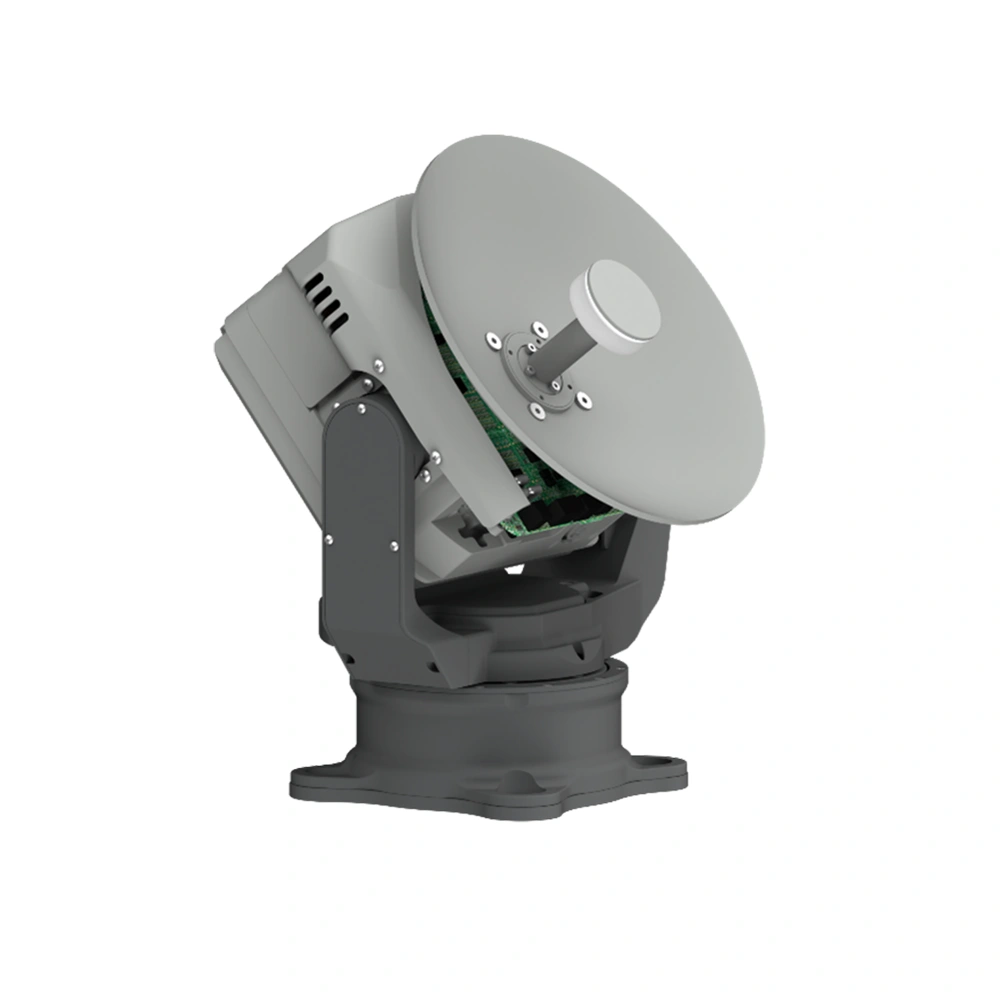

The PALS PAIR-20 is a cutting-edge, highly integrated airborne antenna system engineered to provide robust, high-throughput Ka-band satellite connectivity for the most demanding aerial platforms, including fixed-wing aircraft and UAVs. It combines a high-efficiency parabolic feed network, low-noise amplifier, servo control, and GPS/BeiDou positioning into one compact unit, designed to enhance operational capabilities.
Performance is paramount. The PAIR-20 achieves rapid satellite acquisition with a cold-start time under 80 seconds (under 60 seconds hot-start). Its advanced two-axis stability and three-axis tracking system ensures high accuracy, maintaining a tracking error of <0.5dB RMS. Even during aggressive maneuvers, its stability algorithm keeps the link locked. The system also offers swift signal recovery—under 3 seconds for short blockages.
Built for resilience, its modular design enables straightforward field maintenance and diagnosis. This makes the PAIR-20 a critical, reliable asset not only for military applications—boosting combat effectiveness and mobility—but also for mission-critical emergency response communications across public safety, fire, transportation, and civil defense agencies, ensuring a vital lifeline during disasters.
- Available in Ka Band HTS
- Designed for aircraft, ships, go-fast boats, and military vehicles
- Fast initial satellite pointing time
- High tracking accuracy
- Exceptional tracking stability
- Rapid blockage recovery time
- Fast satellite switching time: < 8 seconds
- Easy maintenance
- Dynamic pointing and dynamic satellite switching
- 2-Axes stability, 3-Axes tracking sytem
| GENERAL SPECIFICATIONS | PAIR-20 | ||
| Reflector Diameter | 0.2m | ||
| Reflector Material | Carbon-fiber | ||
| Antenna Form | Circle against symmetrical reflector and cap feed | ||
| Stabilization Platform | 2-Axes for stability, 3-Axes for tracking | ||
| Positioning Mode | GPS and BD | ||
| Power Supply | DC18-36V | ||
| Power Consumption | ≤60W (Ku 8W BUC) ≤90W (Ka 10W BUC) | ||
| Positioning Mode | GPS and BD | ||
| Interface | 1 Rx,1 Tx and 1 M&C | ||
| RF CHARACTERISTIC | |||
| Frequency (GHz) Tx | 29.0-30.0 | ||
| Frequency (GHz) Rx | 18.7- 20.2 | ||
| Antenna Gain (±0.2 dBi) Tx | 33.7+20lg(f/29.4) | ||
| Antenna Gain (±0.2 dBi) Rx | 30.3+20lg(f/19.6) | ||
| Polarization Form | LHCP/RHCP | ||
| G/T(dB/K) | 6.7 | ||
| EIRP (dBw) | 42.7 (10W BUC) | ||
| Axial ratio (dB) | 1.5 | ||
| Tx-Rx Isolation(dB) | 85 | ||
| Rx-Tx Isolation(dB) | 40 | ||
| Antenna Pattern Compliancy | ITU-R S.580-6 and ITU-R S.465-6 | ||
| MECHANICAL SPECIFICATIONS | Azimuth | Elevation | Polarization |
| Antenna Motion Range | 360°continuous | -5°-105° | ± 90°(Ka) |
| Antenna Revolution | 100°/s | 100°/s | |
| Antenna Acceleration | 200°/s² | 200°/s² | |
| Pointing Accuracy | ≤0.2° (R.M.S) | ||
| Initial Acquisition time | ≤ 2min | ||
| Sheltering Recovery Time | ≤5s (Cover for20min) | ||
| Weight | ≤5.5Kg (including antenna system, 10W Ka band Transceiver) | ||
| Antenna Profile Dimension | ≤p249*H288mm (D*H) | ||
| ENVIRONMENTAL SPECIFICATION | |||
| Temperature Range Operational | -40°C + 55°C | ||
| Temperature Range Survival | -55°C + 70°C | ||
| Protection Grade | IP65 | ||
