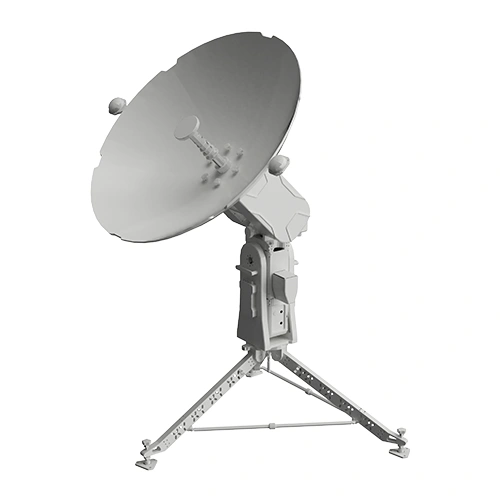

The P-X/Y-100 Deployable X/Y Leo Tracking Antenna pedestal technology is specifically designed for quick-deployment LEO satellite tracking applications for short-term and permanent use. Designed around our proven X/Y technology precision antenna systems, this solution can be transported on a commercial airline and can be set up in a very short time without special equipment.
Through dual GPS to achieve accurate direction finding and positioning. The high precision resolver is used to achieve automatic calculation of altitude information, angle information, and coordinate conversion. Lead the antenna quickly to point to the target and achieve precision and accurate tracking target by program lead.
The antenna system adopts a wide range of AC 220V for power supply and can customize the power supply mode as per the customer’s specific requirement.
- L, S, X, Ku and Ka-Band versions are available
- 70% of the system is made of carbon fiber with low weight, high strength and is easy to transport
- Motorized and manual control modes to facilitate emergency operation in various environments
- Provides high-speed and automatic tracking for GEO, LEO, MEO satellites and UAV’s
- Portable, Compact, Lightweight
- Rugged Construction
- High Reliability and Accuracy
- High Torque and Zero Backlash
- Fast Slew Rates
- Brushless DC Motors
| Travels | Azimuth ± 90° Elevation ± 90° Polarization ±115° |
| Speed | Azimuth 5°/sec Elevation 5°/sec Polarization 4°/sec |
| Reflector Diameter | 1.0m |
| Tracking Method | Program and step tracking |
| Pointing Accuracy | ≤0.1° |
