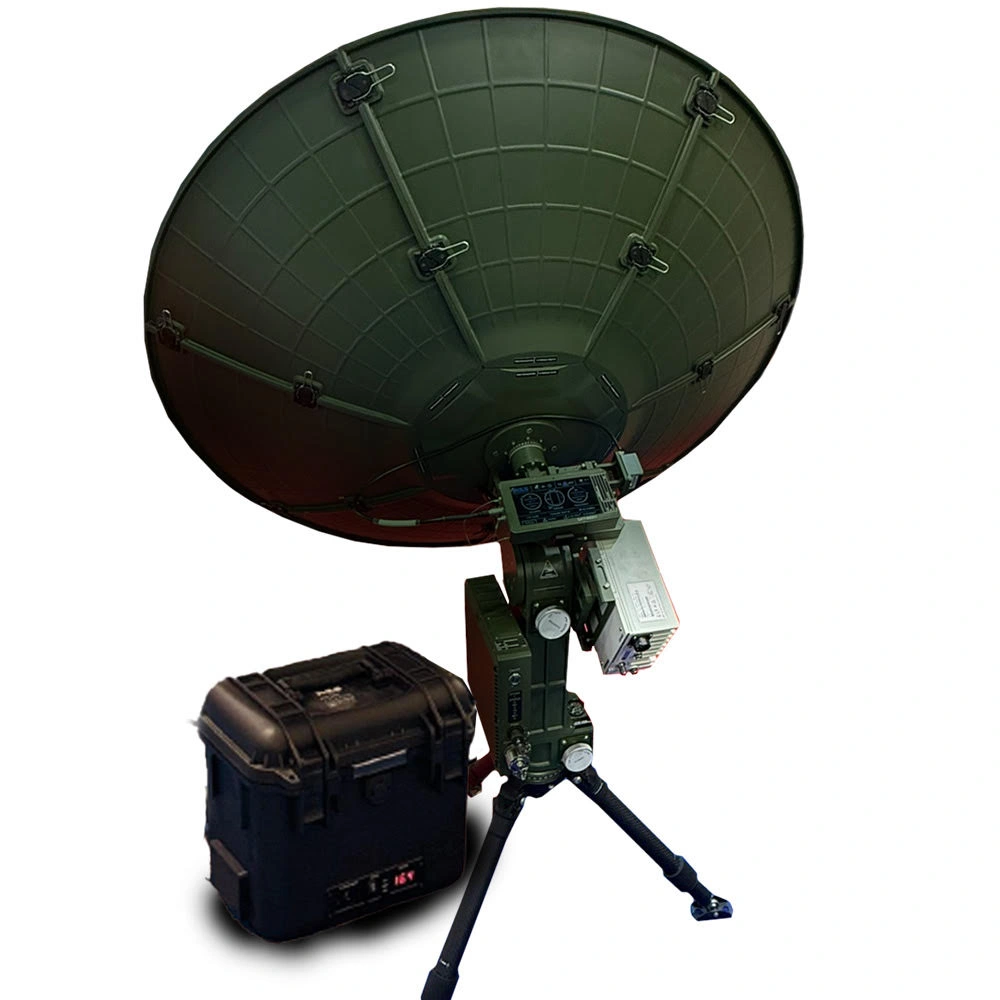

The PMA-100 is a lightweight, man-pack satellite terminal featuring a l.0m high-performance reflector for quick, hassle-free setup in just minutes. Its advanced feed structure delivers exceptional RF performance with high gain and low side lobes.
When paired with the P-SM-1200 modem system and PALS Point-Sat, the PMA-100 becomes a complete, turnkey solution for broadcasting, enterprise networks, defense, and emergency communications.
The PALS Point-Sat system ensures precision every time. With real-time satellite pointing, beacon signal and DVB-S signature detection, and clear visual feedback on alignment, operators can achieve fast, accurate satellite lock with zero guesswork ..
At the core, the P-SM-1200 integrates seamlessly with industry-leading modems including iDirect, Hughes, NewTec, Comtech, Gilat, and Viasat, meeting the toughest demands of both commercial and defense-grade operations. Built rugged for reliability, it guarantees secure, mission-critical communications even in the harshest environments.
- Available in X, Ku, and Ka Bands
- Integrated Sat-Finder and Modem Box
- Lightweight, high-strength carbon-fiber reflector with an accuracy of R.M.S 0.25mm
- Optional 4G / SG / LTE supported modem for load balancing and bonding solutions
- Supports Wide Range BUCs (from 6W to 40W)
- Powered by Mains or Battery
- Integrated/ External modem (iDirect, Comtech, Newtech, Hughes)
- Encryption Option
- Supports OpenAmip
| GENERAL SPECIFICATIONS | PMA-100 Manual | |||
| Reflector Diameter | 1.0m | |||
| Reflector Type | Exchangeable 7 Segments | |||
| Modem Interface | Ethernet, OpenAMIP | |||
| Modem Support | iDirect, Newtec, Gilat, Datum, Comtech, THISS etc. | |||
| Power Input (Modem Box) | Battery 24V DC, AC 100- 230 V | |||
| RF CHARACTERISTIC | Ku-Band | Ka-Band | ||
| Frequency (GHz) Tx | 13.75～14.50 | 27.5~31.0 | ||
| Frequency (GHz) Rx | 10.70～12.75 | 17.7~20.2 | ||
| Gain (dBi) Tx | 41.50 | 47.60 | ||
| Gain (dBi) Rx | 40.20 | 44.30 | ||
| Tx/ Rx Isolation (dB) | 85 | 85 | ||
| Rx/Tx Isolation (dB) | 30 | 30 | ||
| Cross Polarization (dB) | 35 | 1.5 (axial ratio) | ||
| Radiation Pattern Compliancy | Compliant with MIL-STD-188-164A, ITU - RS-580 and ITU-RS-465-6 | |||
| MECHANICAL SPECIFICATIONS | Azimuth | Elevation | Polarization | |
| Motion Range | 0~360° | 0~90° | - 120~ +120° | |
| Backpack Size | 710x500x450mm | |||
| Backpack Weight | ≤ 4.5kg | |||
| Weight | Antenna ≤ 13kg | Modem Box: ≤ 3kg | Pointsat: ≤0.5kg | |
| ENVIRONMENTAL SPECIFICATIONS | ||||
| Temperature Range Operational | -40~+60°C | |||
| Protection Grade | IP65 | |||
| Wind Speed Operational | ≤50 km/h (weight balanced) ≤65 km/h (gusted) | |||
| Wind Speed Survival | 120 km/h (optional 150 km/h) | |||
| Humidity (Relative) | 0 to 100% @ 50°C | |||
