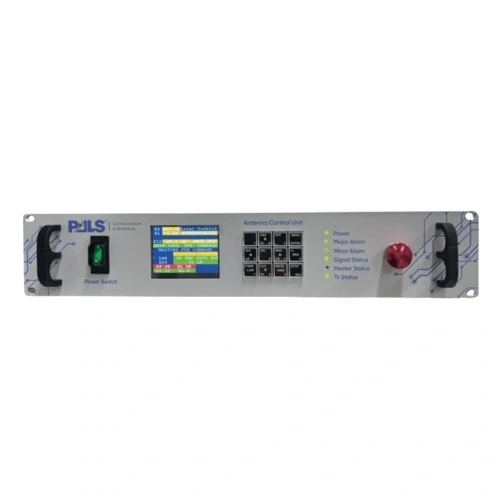

PAC-550-MIL Antenna controller is designed to meet the military industry’s demands. PALS invested hundreds of hours of research & development as well as its sectoral experience to develop an Antenna Controller that meets military-grade standards. PAC-550-MIL got tested in the harshest environments.
PAC-550 MIL is easy to use by an operator who has minimal training and without any knowledge about satellites. PAC-550 MIL finds defined satellites in less than 3 minutes. It is equipped with state-of-art algorithms to minimize operator intervention and to automatically perform expected tasks. It also has features such as memory tracking, beacon receiver (optional) with adjustable features and manual control features for advanced users. Its fully graphical front panel display eliminates the need for a computer while its fully responsive web interface promises the exact same experience. It features 3 levels, programmable user accounts for both security, and to prevent accidental interventions. It also supports SNMP for integration into your management systems.
- Integrated DVB-S/S2 Receiver *
- Integrated 10 MHz Generator with Auto External Switching
- Military Grade GPS and GLONASS Receiver
- Integrated Beacon Receiver (Optional)
- Integrated De-Ice Controller with sensors (Optional)
- Emergency stop button
- More than 5000 Hours MTBF (MIL-HNDBK-217)
- Beacon receiver can be integrated and used simultaneously with DVB S/S2 receiver in same unit.
- Fully responsive Web Interface (SNMP Support)
- User-configurable target pointing
- Satellite memory tracking
- 3 Level user access
- Event and alarm logging
- Build in self test
- MIL-STD-810
- MIL-STD-461
- MIL-STD 188/124A
- Eutelsat Characterized Auto Pointing
| GENERAL SPECIFICATIONS | PAC-550-MIL | |||||
| Proccesor | 120 MHz ARM Multiprocessors | |||||
| Topology | Indoor and Outdoor Units | |||||
| RF Receiver | DVB S/S2, Beacon (optional), AGC | |||||
| Peripherals | GPS and GLONASS Receiver, Inclinometer, True Compass, 3 Axes Motor Drive, 16-bit Absolute Resolver Drive | |||||
| 10 MHz Generator | Internal generator for LNB input. Internal Generator Output Port. External Signal Input Port (Automatically Switches to External). User configurable. | |||||
| MONITOR AND CONTROL SPECIFICATIONS | ||||||
| HMI | Fully Graphical Front Panel Screen with EMC Shield, Alphanumerical Keypad | |||||
| Remote | RJ-45 port for full responsive web interface (no software needed) and SNMP v2c support | |||||
| Monitor Ports | Input Signal Monitoring Port | |||||
| PHYSICAL FEATURES | ||||||
| Dimensions | 424 (19") x 551 x 88 (2RU) mm | |||||
| Weight | 14 kg | |||||
| ELECTRICAL SPECIFICATIONS | ||||||
| Power Rating | 90-264 VAC, 47-63 Hz | |||||
| Power Consumption | 325 W max (except de-ice) | |||||
| LNB Power | 13/15/18 VDC and 22 KHz User Configurable Supply | |||||
| Misc. | Internal Power Factor Corrector and Line Filter | |||||
| ENVIROMENTAL SPECIFICATIONS | ||||||
| Test Name | Specification | |||||
| Tempertaure Range Operational | -10 °C - +55 °C Compliant with MIL-STD-810G Method 501.5 and Method 502.5 | |||||
| Tempertaure Range Survival | -20 °C - +60 °C Compliant with MIL-STD-810G Method 501.5 and Method 502.5 | |||||
| Humidity | %95 Cycling Temp Compliant with MIL-STD-810G Method 507.5 | |||||
| Low Pressure Operational | 3000 meters Compliant with MIL-STD-810G Method 500.5 | |||||
| Low Pressure Survival | 4500 meters Compliant with MIL-STD-810G Method 500.5 | |||||
| Thermal Shock | -20 to +60 cyclic shock Compliant with MIL-STD-810G Method 503.5 | |||||
| Vibration | Cat. 4 and Cat. 10 on all axes Compliant with MIL-STD-810G Method 514.6 | |||||
| Mechanical Shock | 20 G, 11 ms on all axes Compliant with MIL-STD-810G Method 516.5 | |||||
| Electromagnetic | Compliant with MIL-STD461F; CE102, CE106, CS101, CS114, CS115, CS116, RE102, RS103 | |||||
